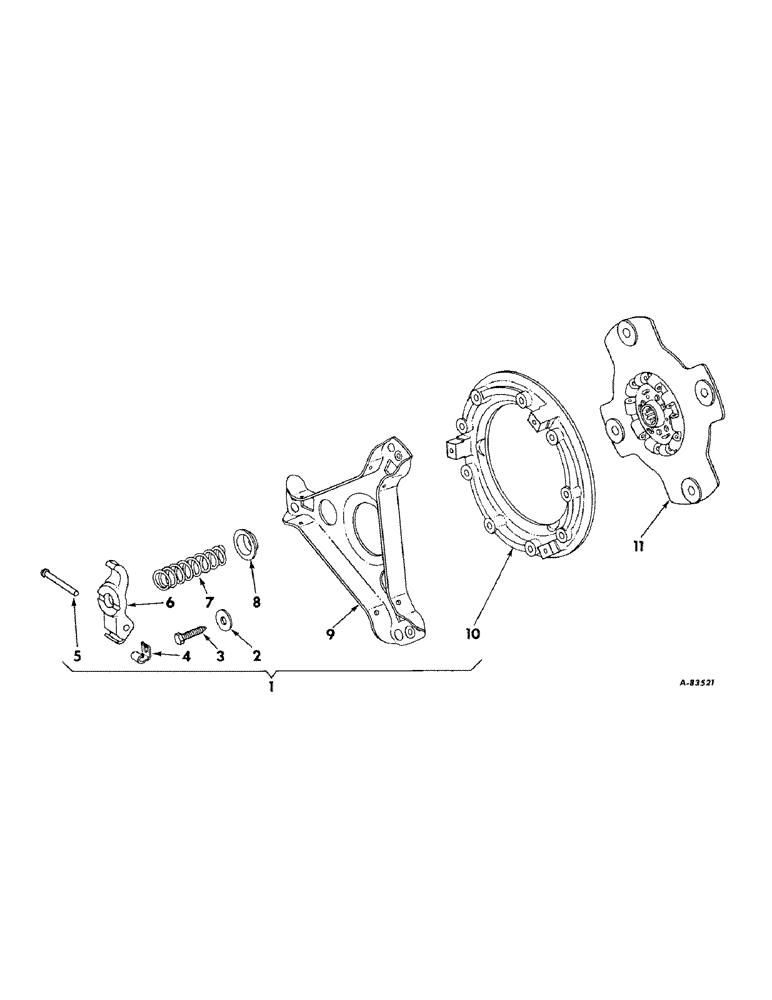

Запчасти Case IH 424 (080) - CLUTCH, SINGLE CLUTCH (03.1) - CLUTCH

1

392077R91

PLATE

ASSY, single clutch pressure, will work for 389513R91

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

355111R1

WASHER

3шт.

3

568189R1

SPARE PART,5/16" - 24

SCREW, adjusting, will work for 392512R1

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

4

355110R1

NO LONGER SERVICED

CLIP, return

3шт.

5

355109R1

PIN

pivot

3шт.

6

355107R1

LEVER

3шт.

7

392513R1

SPRING, pressure, 424 gasoline tractors w/serial no. 14702 & below, 424 diesel tractors w/serial no. 3811 & below, 2424 gasoline tractors w/serial no. 3574 & below, 2424 diesel tractors w/serial no. 794 & below

3шт.

7

392514R1

SPRING, pressure, 424 gasoline tractors w/serial no. 14703 & above, 424 diesel tractors w/serial no. 3812 & above, 2424 gasoline tractors w/serial no. 3575 & above, 2424 diesel tractors w/serial no. 795 & above

3шт.

8

355108R1

CUP, spring, 424 gasoline tractors w/serial no. 14702 & below, 424 diesel tractors w/serial no. 3811 & below, 2424 gasoline tractors w/serial no. 3574 & below, 2424 diesel tractors w/serial no. 795 & below

3шт.

8

392515R1

CUP, spring, 424 gasoline tractors w/serial no. 14703 & above, 424 diesel tractors w/serial no. 3812 & above, 2424 gasoline tractors w/serial no. 3575 & above, 2424 diesel tractors w/serial no. 795 & above

3шт.

9

392510R1

PLATE, back

1шт.

10

392511R1

PLATE, pressure

1шт.

11

392076R91

DISC

1шт.

DISC ASSY, dyna-life clutch driven, also order three cups, 392514R1 and three springs, 392515R1 on, 424 diesel tractors w/serial no. 3811 & below, 424 gasoline tractors w/serial no. 14702 & below, 2424 diesel tractors w/serial no. 794 & below or 24243574 & below

1шт.
