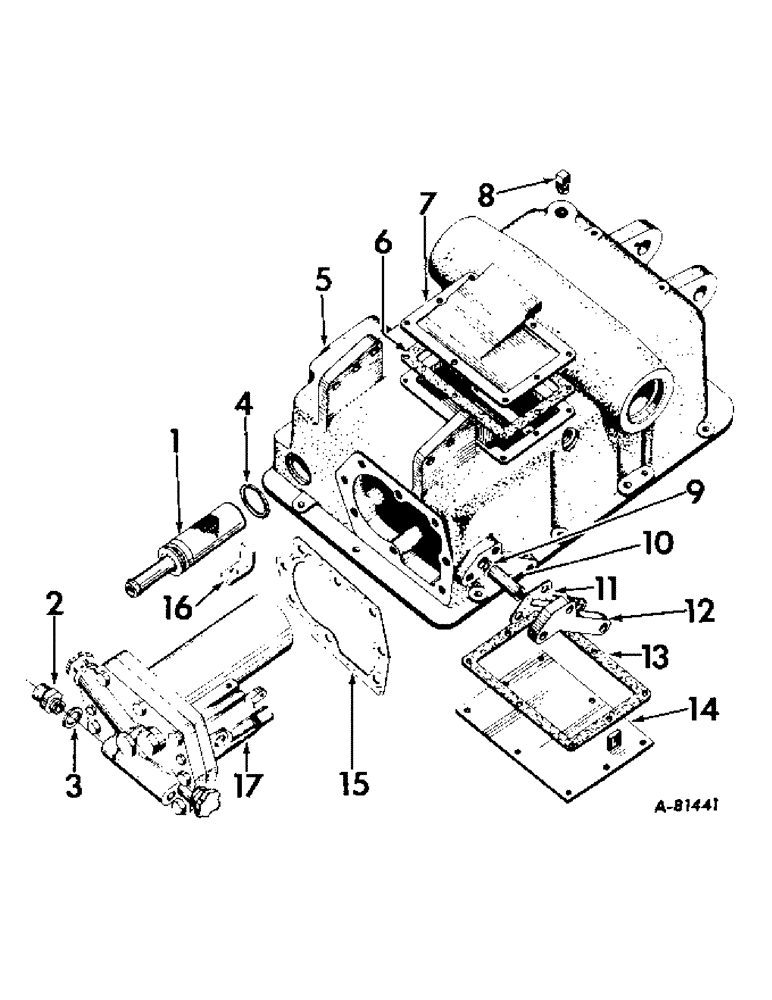

Запчасти Case IH 424 (134) - HYDRAULIC SYSTEM, HYDRAULIC LIFT HOUSING AND CONNECTIONS (07) - HYDRAULIC SYSTEM

1

3069239R91

FILTER

ASSY, suction

1шт.

2

3069347R2

CONNECTOR, ELEC

CONNECTOR, return tube

1шт.

3

704337R1

SEALING WASHER

WASHER, coupling sealing

1шт.

4

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O-RING, hitch return rear tube

1шт.

5

3044365R3

HOUSING

HOUSTING, hyd lift

1шт.

280668R91

PLUG

3/4 magnetic drain, lift housing

1шт.

172570

PLUG,Exp, 1 3/8"

1-3/8 expansion

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

10шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

3044367R2

GASKET

top cover plate

1шт.

7

3044366R1

PLATE

top cover

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

217-442

PLUG,3/4" - 14

3/4 sq-hd pipe

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, valve return connection

1шт.

10

751540R1

CONNECTOR, ELEC

CONNECTION, valve return

1шт.

11

3061055R2

GASKET

auxiliary valve cover plate

1шт.

12

751541R1

PLATE

auxiliary valve cover

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

751499R2

GASKET

lift housing cover plate

1шт.

14

751497R11

PLATE

ASSY, lift housing cover

1шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

15

3044437R2

GASKET

control valve

1шт.

16

379681R1

STOP, hitch return rear tube

1шт.

17

3069236R92

CONTROL VALVE

VALVE ASSY, control, for components see list of parts under details of control valve

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

6шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

704943R91

WASHER, 1/4 dowty

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.
