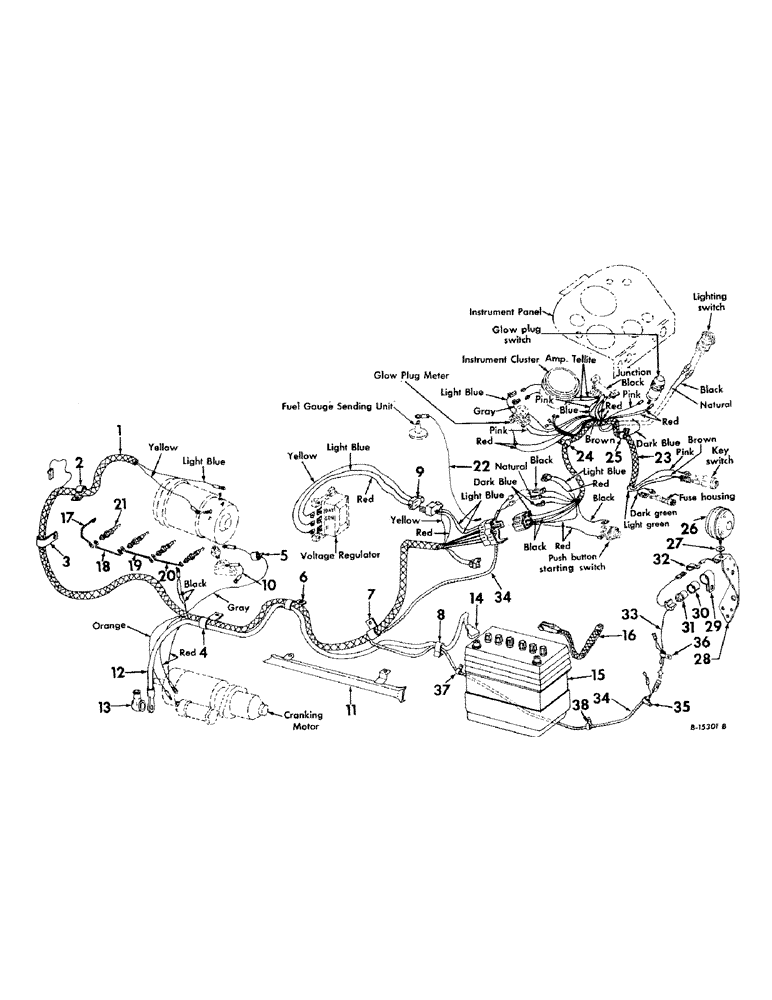

Запчасти Case IH 424 (075) - ELECTRICAL SYSTEM, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
388819R91
HARNESS ASSY, main cable
1шт.
2
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, cable harness, on generator front mounting bolt
1шт.
3
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, cable harness, on water outlet elbow upper LH mounting stud
1шт.
4
362666R1
CLIP
cable harness and battery cable, on clutch housing LH top front tapped hole, screw, 3/8-16 x 7/16 hex-hd cap
1шт.
5
366460R1
CABLE CLIP
CLIP, oil pressure switch cable, on hour meter cover rear mounting bolt
1шт.
6
362666R1
CLIP
cable harness, on inside mounting bolt of rear steering shaft support bracket
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
1шт.
7
362666R1
CLIP
cable harness and battery cable, on LH side fuel tank and steering support lower rear hole spring anchor pad
1шт.
8
362666R1
CLIP
battery cable, on transmission case rear cover LH side front mounting bolt
1шт.
9
376868R91
CABLE
ASSY, voltage regulator
1шт.
10
391205R91
CABLE ASSY, spacer block grounding
1шт.
228354
SCREW W/EXT-TOOTH LOCK WASHER, 10-24 x 3/8 slt-rd-hd mach
1шт.
11
388700R11
SHIELD ASSY, battery cable
1шт.
12
388816R91
CABLE
W/BOLT AND COVERS, battery to solenoid switch
1шт.
356062R91
BOLT
ASSY, terminal
1шт.
13
364910R1
BOOT
COVER, battery cable terminal
1шт.
14
383619R1
COVER
battery cable terminal large
1шт.
15
395599R1
BATTERY, Prestolite 30H-A9Z, 12 volt
1шт.
16
378760R91
CABLE
STRAP ASSY, Serial Range: battery-ground
1шт.
17
388831R1
WIRE, glow plug no., Serial Range: 1-ground
1шт.
18
388830R1
ELECTRICAL WIRE
WIRE, glow plug no. 1 to no. 2
1шт.
19
388832R1
ELECTRICAL WIRE
WIRE, glow plug no. 2 to no. 3
1шт.
20
388830R1
ELECTRICAL WIRE
WIRE, glow plug no. 3 to no. 4
1шт.
21
377206R92
GLOW PLUG
PLUG, glow
4шт.
22
391286R91
CABLE ASSY, fuel gauge sending unit to multiple connector, 424 w/serial no. 7714 & below, 2424 w/ serial no. 1912 & below
1шт.
22
NSS
NOT SOLD SEPARAT
CABLE, fuel gauge sending unit to multiple connector, dark blue, part of cable harness, 388821R91, 424 w/serial no. 7715 & above, 2424 w/serial no. 1913 & above
1шт.
23
388821R92
HARNESS
ASSY, panel cable
1шт.
24
388699R1
CLIP, panel cable harness, on cluster gauge LH clamp stud
1шт.
16558R1
WASHER
17/64 x 5/8 x 18 ga
1шт.
26
394129R91
LIGHT
ASSY, flasher warning, only serviceable items are lamp, 9417866, lens, guide, 396585R1 or lens, dietz, 899280R1
1шт.
120371
NUT,1/2"-20, G5
1шт.
493-41052
LOCK WASHER,Ext Tooth, 1/2"
1/2 C-Z ext-tooth lock
1шт.
27
394262R1
WASHER
flasher warning light
1шт.
28
395517R1
BRACE, tail and flasher light
1шт.
102635
NUT,3/8"-16, G5
3шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
29
394133R1
FASTENER
CLAMP, flasher mounting
1шт.
109084
NUT,1/4"-20, G5
1шт.
179795
TILLAGE BLADE
SCREW, 1/4-20 x 3/4 hex-hd cap
1шт.
446179
WASHER,#12
1/4 x 1/2 x .036 C-Z
1шт.
30
394134R1
SEAL
HOSE, flasher mounting absorber
1шт.
31
394132R91
FLASHER UNIT
FLASHER ASSY, warning light
1шт.
32
358986R1
CABLE CLIP
CLIP, flasher warning light cable
1шт.
33
394340R91
CABLE ASSY, Serial Range: flasher-light
1шт.
34
388822R91
CABLE ASSY, rear light
1шт.
35
362121R1
CLIP
rear light cable
1шт.
36
358986R1
CABLE CLIP
CLIP, rear light cable
1шт.
37
366460R1
CABLE CLIP
CLIP, flasher to light cable
1шт.
38
NSS
NOT SOLD SEPARAT
CLIP, rear light cable, welded on LH rear fender
1шт.
38
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, rear light cable, on LH rear fender, tractors with 48 in. narrow tread rear axle
1шт.
102635
NUT,3/8"-16, G5
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
394473R91
CABLE ASSY, flasher warning light jumper, used to provide a means of omitting flashing feature of the warning light
1шт.
Выбрано товаров: 57
