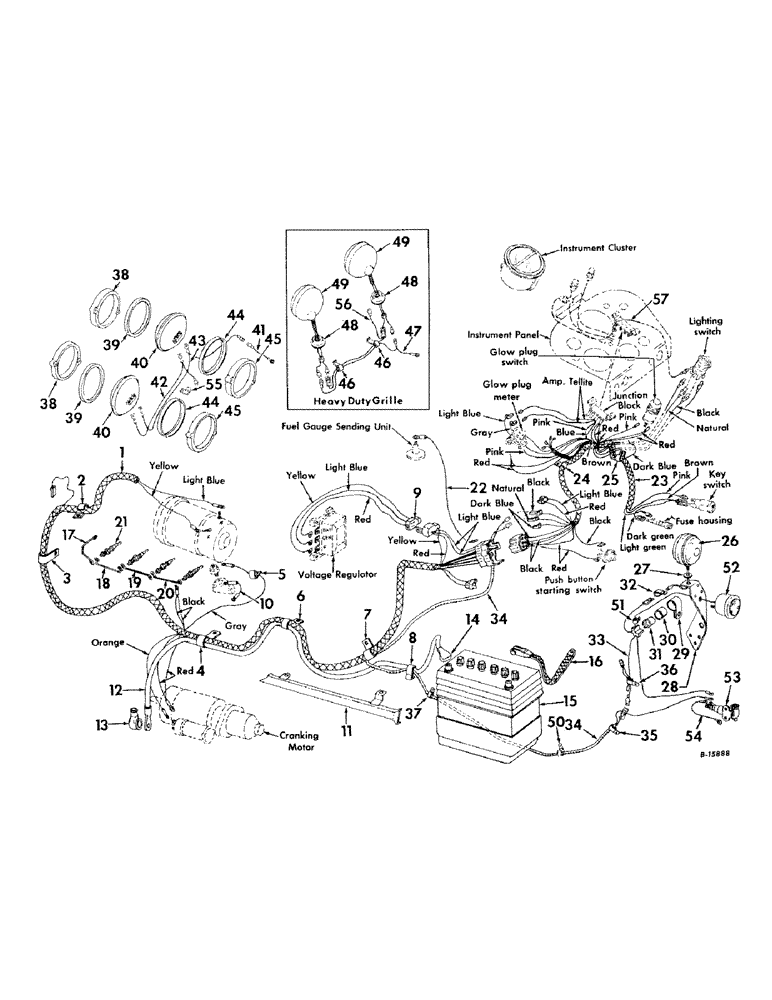

Запчасти Case IH 424 (071) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

388819R91

HARNESS ASSY, main cable

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on generator front mounting bolt

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, on water outlet elbow upper LH mounting stud

1шт.

4

362666R1

CLIP

cable harness and battery cable, on clutch housing LH top front tapped hole, screw, 3/8-16 x 7/16 hex-hd cap

1шт.

5

366460R1

CABLE CLIP

CLIP, oil pressure switch cable, on hour meter cover rear mounting bolt

1шт.

6

362666R1

CLIP

cable harness, on inside mounting bolt of rear steering shaft support bracket

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

362666R1

CLIP

cable harness and battery cable, on LH side fuel tank and steering support lower rear hole spring anchor pad

1шт.

8

362666R1

CLIP

battery cable, on transmission case rear cover LH side front mounting bolt

1шт.

9

376868R91

CABLE

ASSY, voltage regulator

1шт.

10

391205R91

CABLE ASSY, spacer block grounding

1шт.

228354

SCREW, w/ext-tooth lock washer, 10-24 x 3/8 slt-rd-hd mach

1шт.

11

388700R11

SHIELD ASSY, battery cable

1шт.

12

388816R91

CABLE

W/BOLT AND COVERS, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

13

364910R1

BOOT

COVER, battery cable terminal

1шт.

14

383619R1

COVER

battery cable terminal large

1шт.

15

395599R1

BATTERY, Prestolite 30H-A9Z, 12 volt

1шт.

16

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

17

388831R1

WIRE, glow plug no., Serial Range: 1-ground

1шт.

18

388830R1

ELECTRICAL WIRE

WIRE, glow plug no. 1 to no. 2

1шт.

19

388832R1

ELECTRICAL WIRE

WIRE, glow plug no. 2 to no. 3

1шт.

20

388830R1

ELECTRICAL WIRE

WIRE, glow plug no. 3 to no. 4

1шт.

21

377206R92

GLOW PLUG

PLUG, glow

4шт.

22

NSS

NOT SOLD SEPARAT

CABLE, fuel gauge sending unit to multiple connector, dark blue, part of cable harness, 388821R91

1шт.

23

388821R92

HARNESS

ASSY, panel cable

1шт.

24

388699R1

CLIP, panel cable harness, on cluster gauge LH clamp stud

1шт.

25

370383R1

CLIP

panel cable harness, on lower junction block mounting stud

1шт.

16558R1

WASHER

17/64 x 5/8 x 18 ga

1шт.

26

394129R91

LIGHT

ASSY, flasher warning, only serviceable items are lamp, 9417866, lens, guide, 396585R1 or lens, dietz, 899280R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

27

394262R1

WASHER

flasher warning light

1шт.

28

395517R1

BRACE, tail and flasher light

1шт.

102635

NUT,3/8"-16, G5

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

29

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

109084

NUT,1/4"-20, G5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

30

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

31

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

32

358986R1

CABLE CLIP

CLIP, flasher warning light cable

1шт.

33

394340R91

CABLE ASSY, Serial Range: flasher-light

1шт.

34

388822R91

CABLE ASSY, rear light

1шт.

35

362121R1

CLIP

rear light cable

1шт.

36

358986R1

CABLE CLIP

CLIP, rear light cable

1шт.

37

366460R1

CABLE CLIP

CLIP, flasher to light cable

1шт.

38

385112R1

RING, head light clamping front

2шт.

39

377303R1

RING

head light retaining front

2шт.

40

373662R91

LAMP

UNIT ASSY, head light sealed beam

2шт.

41

388825R91

CABLE ASSY, head light ground

1шт.

42

388823R91

CABLE ASSY, head light junction

1шт.

43

388824R91

CABLE ASSY, ground & head ligh junction

1шт.

44

377304R1

SPECIAL RING

RING, head light retaining rear

2шт.

155148

SCREW, 10-24 x 1-3/4 cr-rec-rd-hd mach

4шт.

45

377305R1

RING

head light clamping rear

2шт.

46

370383R1

CLIP

head light cable

2шт.

47

388896R91

CABLE ASSY, head light, Serial Range: junction-ground

1шт.

48

370307R1

SEAT

head light mounting ball

2шт.

49

377866R91

LIGHT

ASSY, sealed beam head, only serviceable item is sealed beam unit, 371443R91

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

50

NSS

NOT SOLD SEPARAT

CLIP, rear light cable, welded on LH rear fender

1шт.

50

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable, on LH rear fender, tractors with 48 in. narrow tread rear axle

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

51

366460R1

CABLE CLIP

CLIP, rear light cable

1шт.

52

379789R91

LAMP

LIGHT ASSY, tail, only serviceable items are gasket, 81714R1, lamp, 142450 and lens, 157729R1

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

53

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

54

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

55

362121R1

CLIP

rear light cable

1шт.

56

388897R91

CABLE ASSY, harness to head light junction

1шт.

57

376869R91

CABLE

ASSY, light switch to junction block

1шт.

394473R91

CABLE ASSY, flasher warning light jumper, used to provide a means of omitting flashing feature of the warning light

1шт.
