Запчасти Case IH 424 (064) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

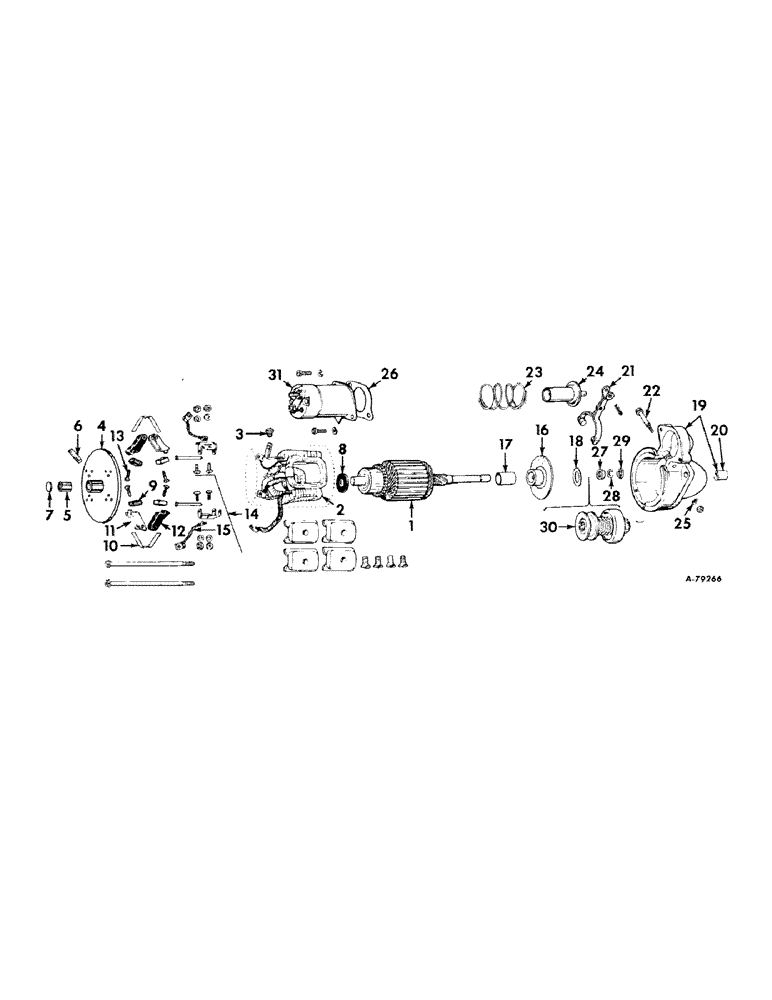

Схема запчастей Case IH 424 - (064) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
16
9
7
30
23
22
21
11
8
29
28
20
25
4
24
3
19
15
13
12
5
14
6
10
17
27
26
1
18
2
31

Артикул

Название

Примечание

Количество

1107585

MOTOR ASSY, cranking, 388813R91, 12 volt

1шт.

102635

NUT,3/8"-16, G5

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1957607

ARMATURE

1шт.

DISCONTINUED. DELCO REMY'S PHONE IS 317-683-3806.

1шт.

2

1955951

COIL

ASSY, field

1шт.

3

1955946

GROMMET

in field frame

1шт.

4

1940385

FUNNEL

FRAME, commutator end, includes ref nos. 5, 6 & 7

1шт.

5

1872678

BUSHING

commutator end

1шт.

6

1919851

WICK

commutator end

1шт.

7

810819

PLUG

expansion

1шт.

8

1914842

WASHER

commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

2шт.

11

1940477

HOLDER

ground brush

2шт.

12

1926618

HOLDER

insulated brush

2шт.

13

1959514

SCREW

brush attaching

4шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

16

820149

PLATE

center bearing

1шт.

17

820148

BUSHING

center bearing

1шт.

18

821453

WASHER

brake, between center brg and motor drive

1шт.

19

1965626

HYDRAULIC SYSTEM

drive

1шт.

20

1862383

BUSHING

drive end

1шт.

21

1951567

LEVER

shift

1шт.

22

1932197

SCREW

STUD, shift lever

1шт.

23

1958679

SPRING

plunger return

1шт.

24

1941113

PLUNGER

solenoid switch

1шт.

25

9421424

LOCK WASHER

shift lever stud lock

1шт.

26

1952427

GASKET

between switch and housing

1шт.

27

1928021

COLLAR

drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1838568

WASHER

drive end thrust

1шт.

30

1959500

DRIVE

ASSY, motor

1шт.

31

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid

1шт.

120622

NUT,#8-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

Выбрано товаров: 40
