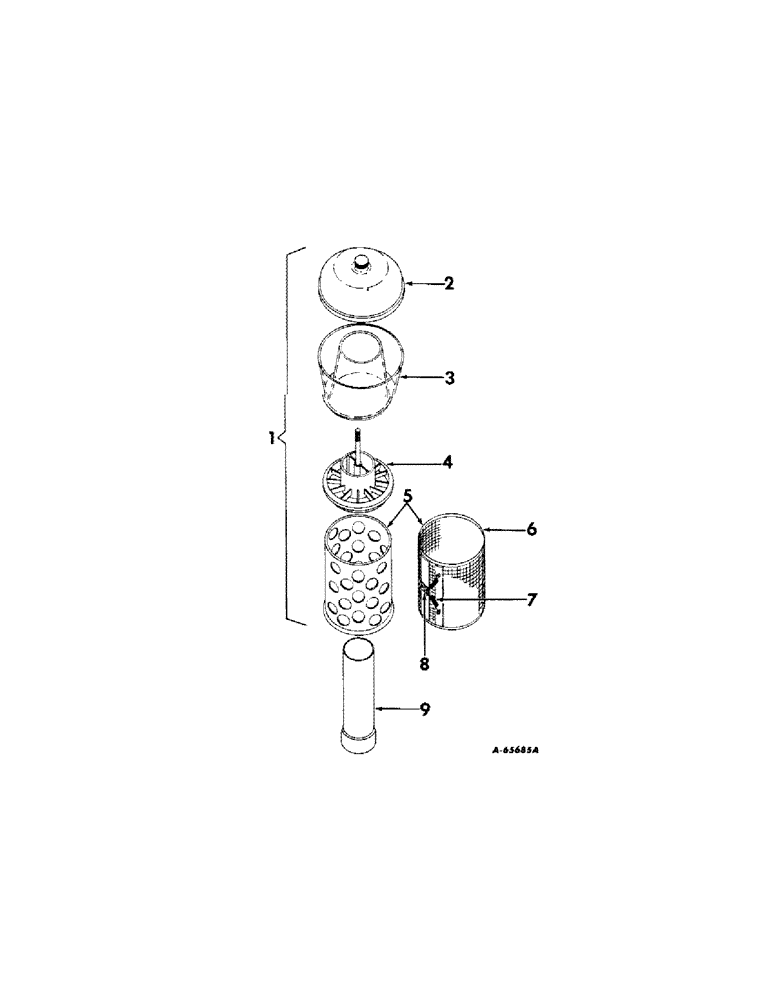

Запчасти Case IH 424 (032) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

379659R91

CLEANER

PARTS ACCESSORY, pre-cleaner, pre-screener

1шт.

1

379660R91

CLEANER

COVER ASSY, pre-cleaner

1шт.

2

36299R91

COVER ASSY, pre-cleaner

1шт.

3

363000R1

BODY

pre-cleaner

1шт.

4

363003R91

SLEEVE

ASSY, pre-cleaner

1шт.

5

381602R91

PRE-SCREENER ASSY.

1шт.

115988

NUT, 10-24 x 1-1/4 rd-hd mach

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 rd-hd mach

1шт.

6

353637R91

SCREEN

W/CLIP, 353758R1 and two springs, 353639R1

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

8

353758R1

CLIP

screen lock tension spring

1шт.

9

379661R1

PIPE

EXTENSION, air pipe

1шт.
