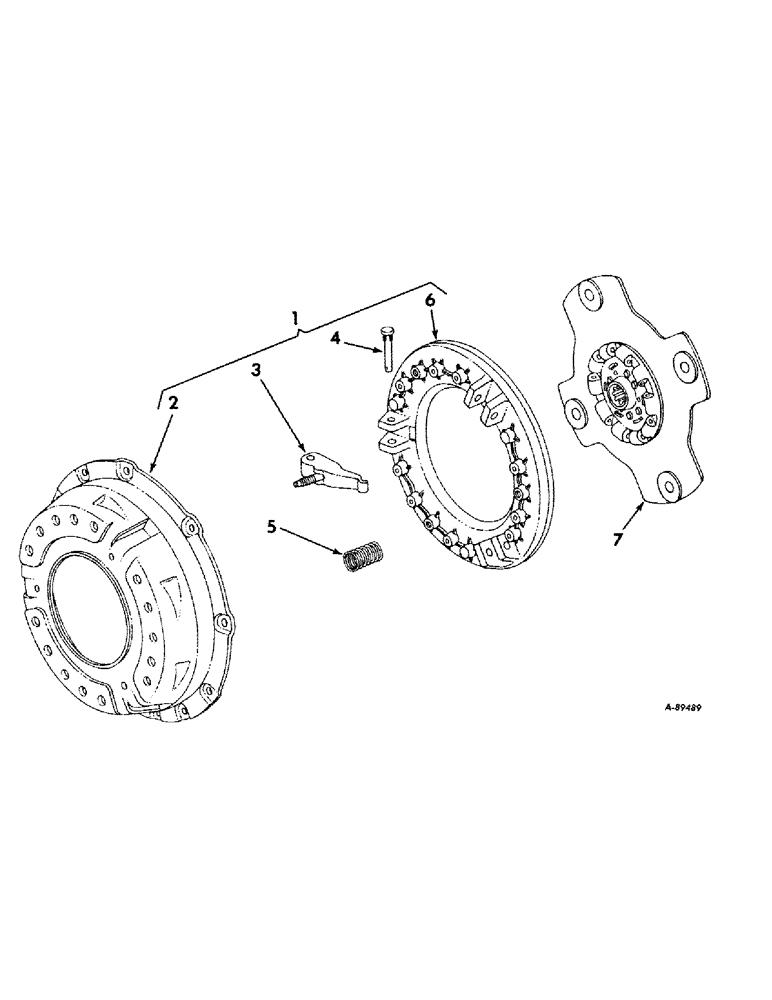

Запчасти Case IH 424 (081) - CLUTCH, SINGLE CLUTCH, DIESEL ENGINE TRACTORS (03.1) - CLUTCH

1

394125R91

PLATE

ASSY, single clutch pressure

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

395308R1

PLATE, back

1шт.

3

68741HDX

LEVER ASSY, clutch

3шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

4

29774HB

PIN

clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

68289H

SPRING, clutch pressure

9шт.

6

68739HB

PLATE, pressure

1шт.

7

392076R91

DISC

ASSY, Dyna-Life clutch driven

1шт.
