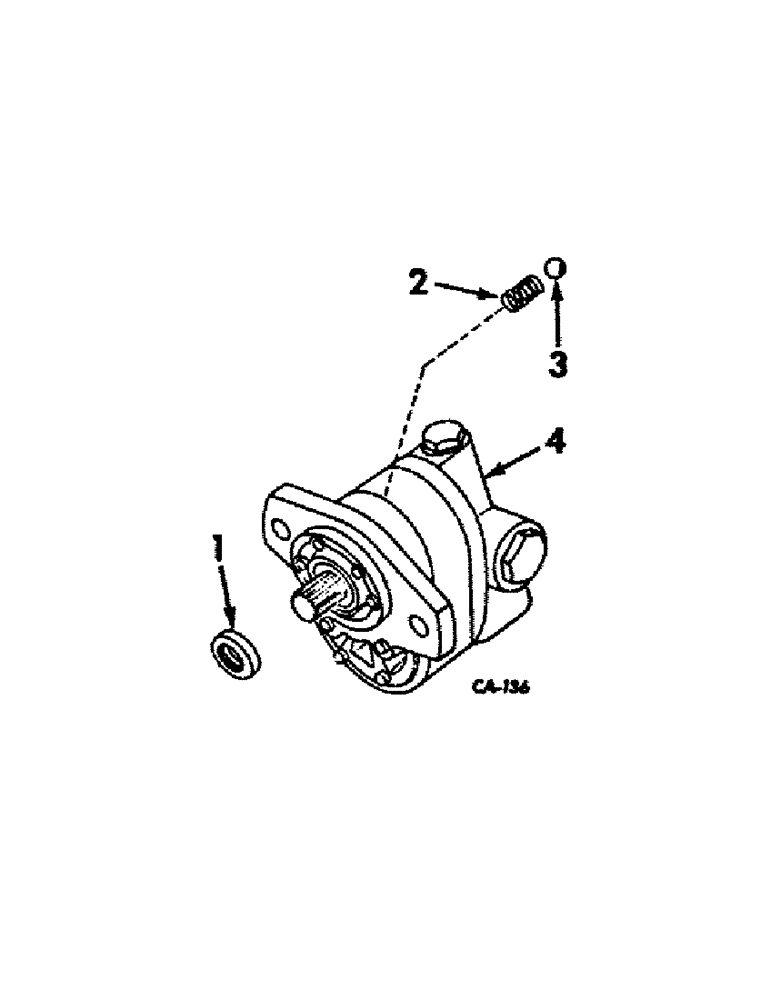

Запчасти Case IH 4100 (F-09) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 20 GPM - 390617R91 (07) - HYDRAULIC SYSTEM

390617R91

PUMP

ASSY, hydraulic

1шт.

1

381232R91

OIL SEAL

pump shaft oil

1шт.

2

381230R1

SPRING

check ball

2шт.

3

16013R1

BALL

13/32 cr-stl

2шт.

4

393347R91

PLATE ASSY, back

1шт.

393350R91

PACKAGE

hyd pump o-ring and gasket, Consists of

1шт.

381235R1

DIAPHRAGM

DIAPRAGM

1шт.

393348R1

GASKET

1шт.

381236R1

GASKET

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

381234R1

LARGE PLATE

PLATE

1шт.

381237R1

SEAL

1шт.

381232R91

OIL SEAL

1шт.

404445R94

PUMP

ASSY, hydraulic gear

1шт.
