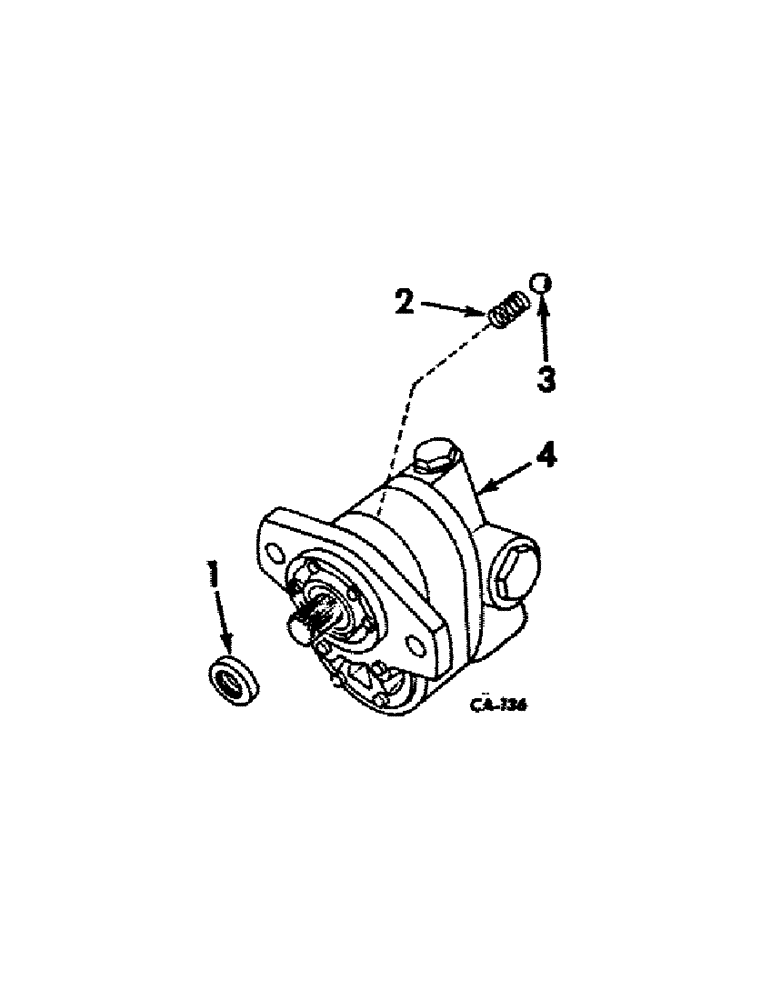

Запчасти Case IH 4100 (F-09[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 20 GPM - 404445R94 (07) - HYDRAULIC SYSTEM

1

397826R91

GASKET

pump shaft oil, Optional w/381232R91

1шт.

1

381232R91

OIL SEAL

pump shaft oil, Optional w/397826R91

1шт.

2

381230R1

SPRING

check ball

2шт.

3

16013R1

BALL

check

2шт.

4

404449R93

BACK PLATE ASSY, repair kit

1шт.

404451R92

PACKAGE

hyd pump o-ring and gasket, Consists of

1шт.

404450R1

DIAPHRAGM (NSS)

1шт.

404447R1

GASKET (NSS)

1шт.

404448R1

GASKET (NSS)

1шт.

627677C1

SEAL

(NSS)

1шт.

397826R91

GASKET

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

627214C1

PLATE

(NSS)

1шт.

22285R1

O-RING,4.987" ID x 5.193" OD x 0.103"

1шт.

395776R1

WASHER

1шт.
