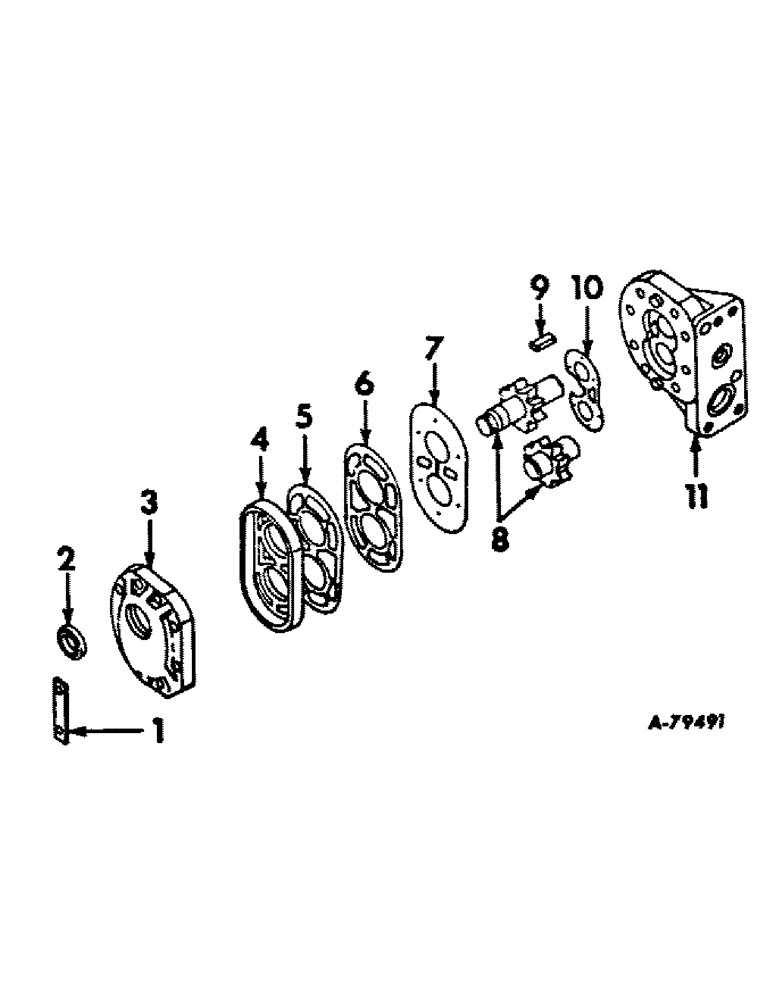

Запчасти Case IH 4100 (F-08) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULIC SYSTEM

391354R92

PUMP

ASSY, hydraulic

1шт.

1949304C1

REMAN-HYD PUMP

Reman for New PN 391354R92

1шт.

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

383538R1

PLATE

washer

1шт.

2

383534R91

OIL SEAL

pump drive shaft

1шт.

3

COVER ASSY, pump, Not serviced separately order 391354R92

1шт.

4

SEAL, diaphragm, Not serviced separately order pkg, 383530R92

1шт.

5

GASKET, protector, Not serviced separately order pkg, 383530R92

1шт.

6

GASKET, back-up, Not serviced separately order pkg, 383530R92

1шт.

7

DIAPHRAGM, pump body, Not serviced separately order pkg 383530R92

1шт.

8

PACKAGE, drive and driven gear, Not serviced separately order 391354R92

1шт.

9

383539R1

KEY

pump drive shaft

1шт.

10

DIAPHRAGM, pump cover, Not serviced separately order pkg 383530R92

1шт.

11

BODY, pump, Not serviced separately order 391354R92

1шт.

383530R92

PACKAGE

hydraulic pump o-ring and gasket, Consists of

1шт.

406005R1

DIAPHRAGM (NSS)

1шт.

383531R1

DIAPHRAGM (NSS)

1шт.

406006R1

GASKET (NSS)

1шт.

371553R1

GASKET (NSS)

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

383534R91

OIL SEAL

1шт.

391353R92

PUMP

ASSY, hydraulic

1шт.

1949304C1

REMAN-HYD PUMP

Reman for New PN 391353R92

1шт.

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.
