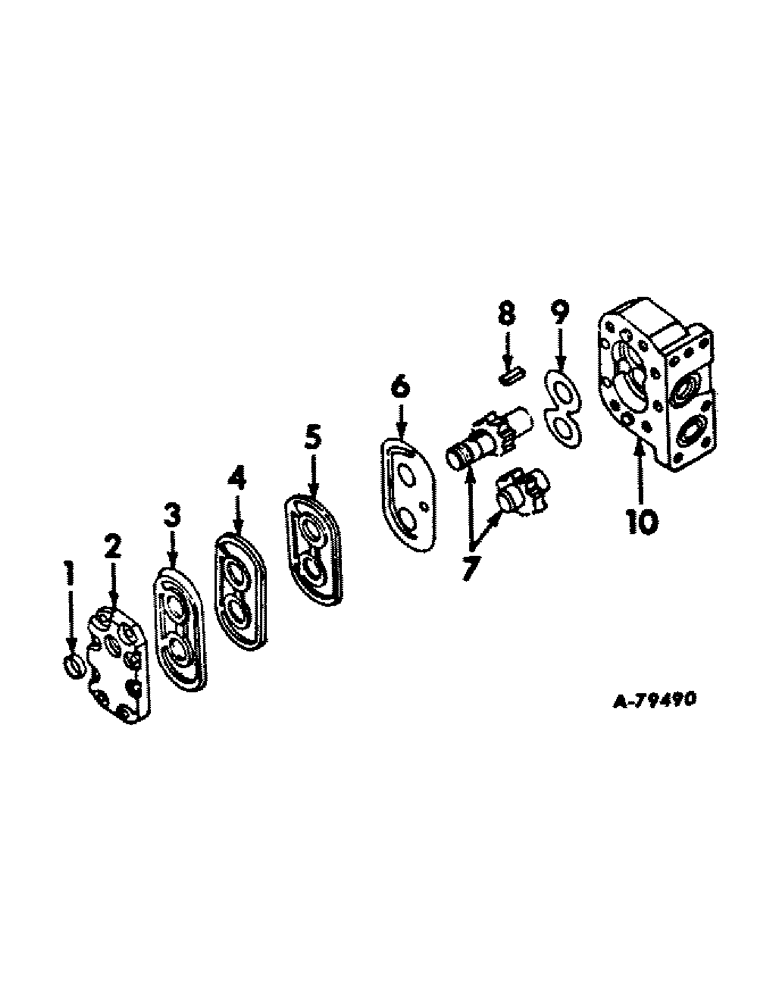

Запчасти Case IH 4100 (F-08[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON, 9 GPM (07) - HYDRAULIC SYSTEM

1

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

2

COVER ASSY, pump, Not serviced separately order 391353R92

1шт.

3

WEB, sealing, Not serviced separately order kit, 383559R92

1шт.

4

WEB, paper racking, Not serviced separately order kit, 383559R92

1шт.

5

WEB, backing, Not serviced separately order kit, 383559R92

1шт.

6

PLATE, cover pressure, Not serviced separately order kit 383559R92

1шт.

7

PACKAGE, drive and driven gear, Not serviced separately order 391353R92

1шт.

8

383539R1

KEY

pump driven shaft

1шт.

9

PLATE, body wear, Not serviced separately order kit, 383559R92

1шт.

10

BODY ASSY, pump, not serviced separately order 391353R92

1шт.

383559R92

KIT

seal pack service , Consists Ref. 3, 4, 5, 6 and 9

1шт.

383558R93

PACKAGE, hydraulic pump o-ring and gasket, Consists of

1шт.

383559R92

KIT

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

373157R91

OIL SEAL

SEAL

1шт.
