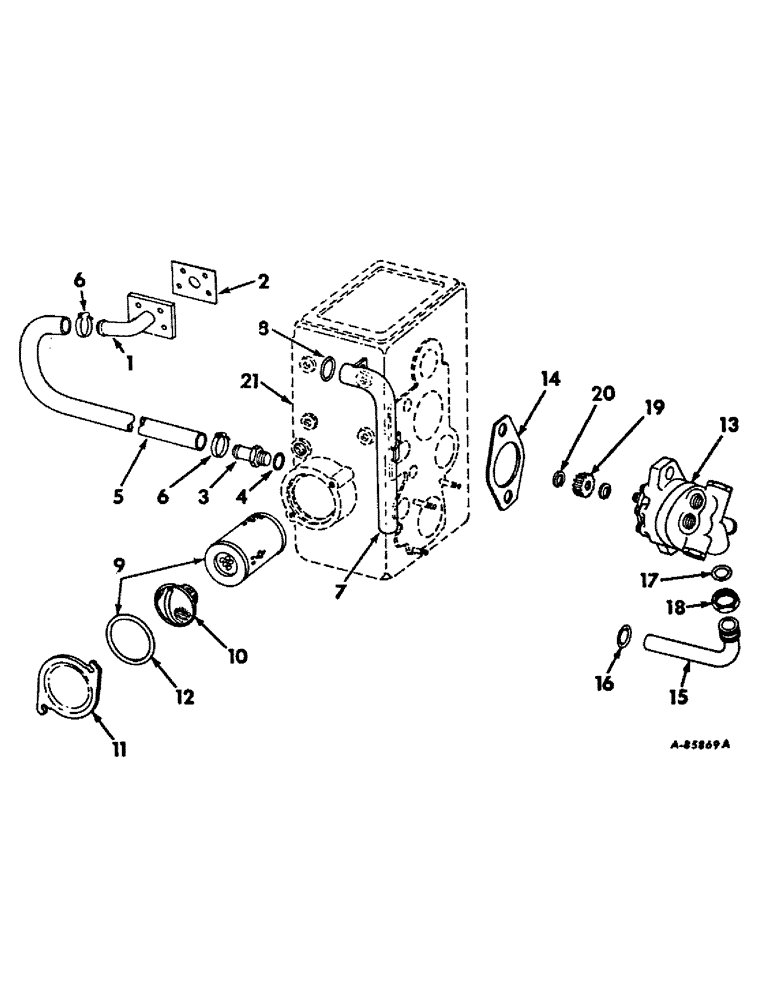

Запчасти Case IH 4100 (F-07) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, OIL FILTER AND PIPING, IN TRANSFER CASE (07) - HYDRAULIC SYSTEM

1

390637R11

PIPE ASSY, flange suction

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

2

390639R1

GASKET

suction pipe flange

1шт.

3

390640R1

FITTING

ASSY, suction hose adapter, transfer case to 9 GPM pump

1шт.

4

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, suction hose adapter

1шт.

5

390641R1

HOSE,1.03" ID x 20.70", SAE 100R4

Transfer Case Pump Suction 1.03" ID x 20.70", SAE 100R4

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

ASSY, suction hose

1шт.

7

390606R11

PIPE ASSY, filter suction

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, filter suction tube seal

1шт.

9

390560R91

ELEMENT

SERVICE PACKAGE, filter cartidge

1шт.

10

386121R92

VALVE

ASSY, hyd flter relief

1шт.

11

390609R1

COVER, hyd oil filter

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap

2шт.

20893R1

WASHER

11/32 x 1 x .120 C-Z

2шт.

12

390610R1

O-RING,5.109" ID x 0.139" Width

5-1/8 x 5-3/8 x 1/8, hyd oil filter cover seal

1шт.

13

404445R94

PUMP

ASSY, hydraulic, 20 GPM, Will work For 390617R91, rear mounted w/flow divider, for components see list of parts under details of hydraulic pump listing, This section

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

13

404446R92

PUMP

ASSY, rear mtd w/flow divider, Will work for 397165R91, For components see list of parts under details of hydraulic pump listing, This section

1шт.

14

390618R1

GASKET

rear mounted pump

1шт.

15

390620R11

PIPE ASSY, pump suction

1шт.

16

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction pipe seal

1шт.

17

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64

1шт.

18

941065

HOSE

NUT, 1-5/8-12 adj str thd fitting lock

1шт.

19

390442R1

GEAR WHEEL

GEAR, pump driven, 23T

1шт.

20

390622R1

RING, pump gear snap

2шт.

21

CASE, transfer, Refer to transfer case and cover listing, Section B

1шт.
