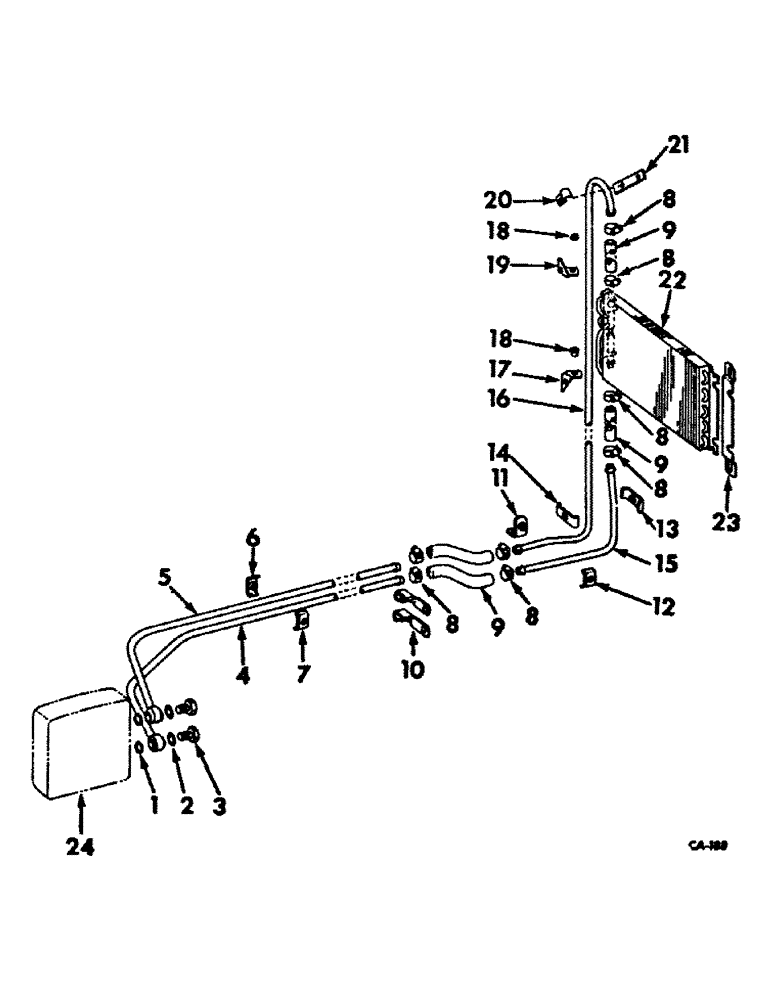

Запчасти Case IH 4100 (F-05) - HYDRAULIC SYSTEM, OIL COOLER AND CONNECTIONS (07) - HYDRAULIC SYSTEM

1

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16, union plug

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, union plug

2шт.

3

384577R1

NIPPLE, LUBE

PLUG, union

2шт.

4

390616R11

PIPE ASSY, oil cooler outlet rear

1шт.

5

390613R11

PIPE ASSY, oil cooler inlet rear

1шт.

6

384855R11

CLAMP

ASSY, oil cooler rear pipes

1шт.

143696

DRIVING SPROCKET

NUT, 1/4-20 tee

1шт.

7

381448R1

CLAMP

oil cooler rear pipe support

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP ASSY, oil cooler hose

8шт.

9

387330R1

HOSE, oil cooler pipes

4шт.

10

363660R1

CLIP

oil cooler pipe, twisted, on crankcase front cover

2шт.

11

384484R11

SUPPORT TUBE

SUPPORT ASSY, oil cooler front pipes lower

1шт.

12

381448R1

CLAMP

oil cooler front pipes lower

1шт.

13

384855R11

CLAMP

ASSY, oil cooler front pipes

1шт.

14

381448R1

CLAMP

oil cooler front pipe support

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

15

390614R1

PIPE, oil cooler outlet front

1шт.

16

390612R1

PIPE, oil cooler inlet front

1шт.

17

387325R2

BRACKET, oil cooler mounting lower

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

18

387327R1

BUSHING

oil cooler pivot

2шт.

19

387324R2

BRACKET, oil cooler mounting upper

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

1шт.

20

341670R1

CLIP, front cooler pipes upper support

1шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

390603R1

STRIP, front cooler pipes upper support

1шт.

22

390611R91

COOLER ASSY, oil

1шт.

23

387326R1

SUPPORT, oil cooler

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 pt

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

24

VALVE ASSY, multiple control, Refer to power supply and multiple control valve listing, Section F

1шт.
