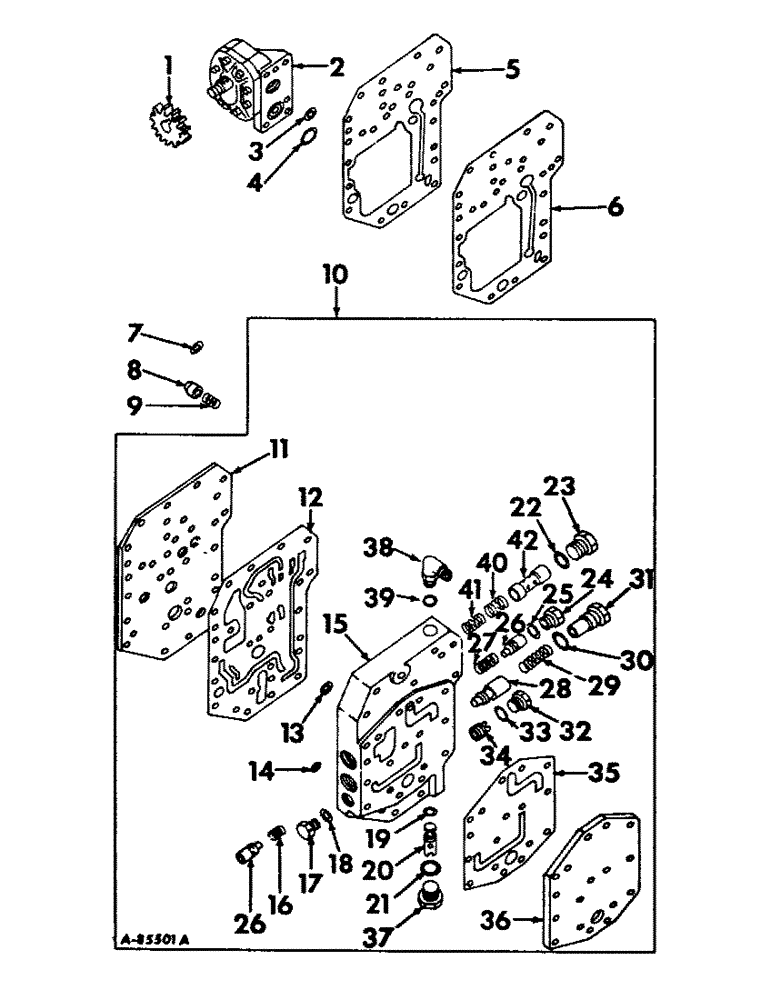

Запчасти Case IH 4100 (F-03) - HYDRAULIC SYSTEM, POWER SUPPLY AND MULTIPLE CONTROL VALVE ON CLUTCH HOUSING (07) - HYDRAULIC SYSTEM

1

382332R1

GEAR WHEEL

GEAR, hyd pump drive, 19T

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 ESNA stop

1шт.

2

391353R92

PUMP

PUMB ASSY, hydraulic, 9 GPM, Thompson, For components see list of parts under details of hydraulic pump listing, This section, optional with 391354R92

1шт.

2

1949304C1

REMAN-HYD PUMP

Reman for New PN 391353R92

1шт.

2

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

391354R92

PUMP

ASSY, hydraulic, 9 GPM, Cessna, For components see list of parts under details of hydraulic pump listing, This section, optional with 391353R92

1шт.

2

1949304C1

REMAN-HYD PUMP

Reman for New PN 391354R92

1шт.

2

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump bolt sealing

4шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, pump pressure port

1шт.

4

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32, pump suction port

1шт.

5

382336R2

GASKET

multiple control valve plate, heavy

1шт.

6

382335R2

GASKET

multiple control valve plate, light

1шт.

7

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, power steering pressure port

1шт.

8

354057R2

VALVE

power steering return check

1шт.

9

382334R1

SPRING

power steering return check valve

1шт.

10

390598R91

VALVE ASSY, multiple control std

1шт.

10

404059R91

CONTROL VALVE

VALVE ASSY, multiple control, tractors w/independent PTO

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

SCREW, 5/16-18 x 1-3/8 hex-hd cap

1шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

SCREW, 5/16-18 x 1-3/4 hex-hd cap

3шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

SCREW, 5/16-18 x 2-1/4 hex-hd cap

6шт.

454866

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

SCREW, 5/16-18 x 2-1/2 hex-hd cap

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

11

392009R1

PLATE, multiple control valve, Inner, for valve, 390598R91

1шт.

11

404109R1

PLATE, multiple control valve, Inner, for valve, 404059R91

1шт.

12

382322R2

GASKET

multiple control valve, Inner

1шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pump pressure port

1шт.

14

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32, power steering input port

1шт.

15

392008R11

BODY ASSY, multiple control valve, for valve, 390598R91

1шт.

15

404107R1

BODY ASSY, multiple control valve, for valve, 404059R91

1шт.

16

382299R1

SPRING

cooler by-pass valve

1шт.

17

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/16 OD str thd o-ring boss, power steering input port

1шт.

18

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16, power steering input port plug

1шт.

19

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, safety valve

1шт.

20

384443R92

VALVE

ASSY, safety, 2000 P.S.I.

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, safety valve

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, pressure regulator valve plug

1шт.

23

9410359

PLUG

1/2 OD str thd o-ring boss, pressure regulator valve, Includes: Ref. 24

1шт.

24

384403R1

PLUG

lub regulator by-pass valve

1шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, lub regulator by-pass valve plug, Includes: Ref. 26 and 27

1шт.

26

382301R1

LOCK VALVE

VALVE, by-pass

2шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 chamfered str, by-pass valve retaining

1шт.

27

382312R1

SPRING

lubrication regulator

1шт.

28

VALVE, flow control, Not serviced separately order body assy 392008R11 or 404107R1

1шт.

29

379211R1

SPRING

flow control valve

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, flow control valve plug, Includes: Ref. 31 and 32

1шт.

31

382297R1

PLUG

flow control valve, Includes: Ref. 32

1шт.

32

9410357

PLUG

1/2-20 C-Z str thd o-ring boss, flow control orifice port

1шт.

34

382298R1

JET

ORIFICE, flow control

1шт.

35

392011R1

GASKET

multiple control valve, outer cover

1шт.

36

392010R1

COVER, multiple control valve, outer screw, 5/16-18 x 5/8 hex-hd cap

1шт.

37

9410359

PLUG

1/2 OD str thd o-ring boss, safety valve

1шт.

38

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 degree hyd flared tube 90 degree, for valve 404059R91

1шт.

39

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, for valve, 404059R91

1шт.

40

382306R1

SPRING

pressure regulator valve outer, for valve, 404059R91

1шт.

41

404517R1

SPRING, pressure regulator valve inner, for valve, 404059R91

1шт.

42

382307R11

VALVE

ASSY, pressure regulator, for valve, 404059R91

1шт.

33

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Flow control orifice port plug

1шт.
