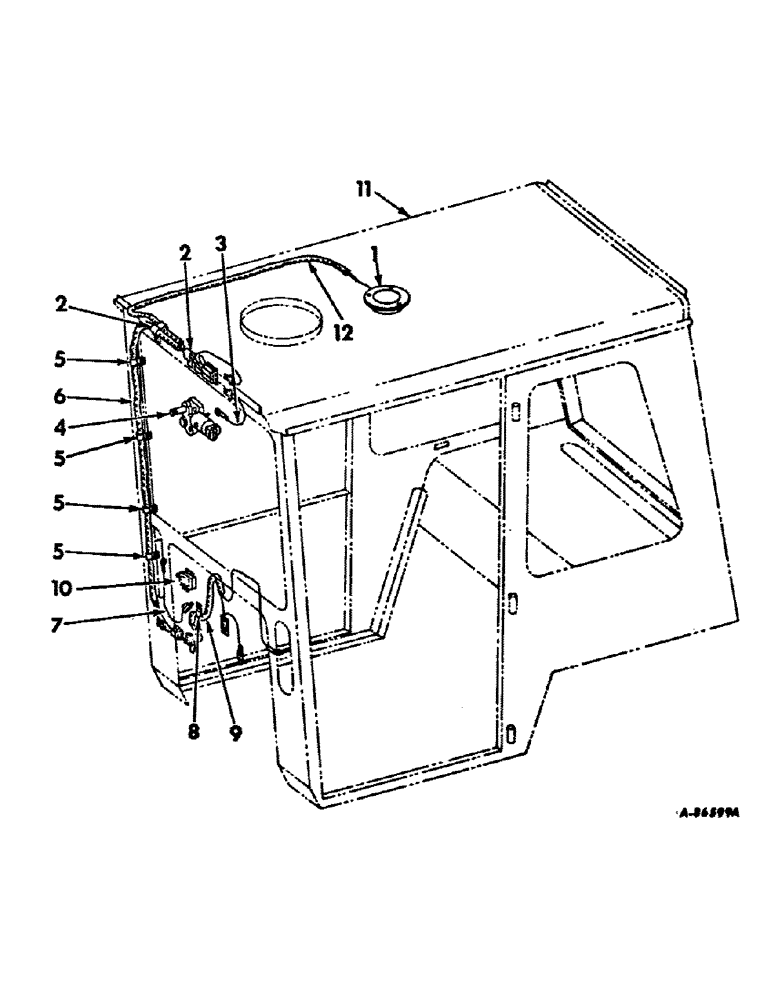

Запчасти Case IH 4100 (G-18) - ELECTRICAL SYSTEM, TRACTOR CAB WIRING AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

391758R91

LIGHT W/CABLE, cab dome, Serial no. 8050 and below

1шт.

1

404150R91

LIGHT ASSY, cab dome, Serial no. 8051 and above

1шт.

2

299406R91

CLAMP, power supply cable harness

1шт.

4

391195R92

WIPER MOTOR

MOTOR ASSY, windshield wiper, For components see list of parts under details of windshield wiper motor listing, Section N

1шт.

145193

BATTERY

10-16 x 1/2 C-Z slt-pan-hd tap.

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 C-Z int-ext tooth lock

1шт.

5

299405C1

CLAMP,7/16", Insul, 1/4" Bolt

cable harness

6шт.

441201

SCREW, 12-14 x 1/2 C-Z slt-pan hd tap.

6шт.

6

391790R91

HARNESS ASSY, cab power supply cable

1шт.

7

358113R92

CABLE ASSY, cab to tractor ground, Serial no. 8603 and below

1шт.

7

396457R1

CABLE ASSY, cab to tractor ground, Serial no. 8604 and above

1шт.

8

36212R1

CLIP, panel to tractor cab harness

1шт.

9

392817R91

HARNESS ASSY, panel to tractor cab, Serial no. 8603 and below

1шт.

9

396442R2

HARNESS ASSY, panel to tractor cab, Serial no. 8604 and above

1шт.

10

1115841

RELAY

electric load, 202303R91, Serial no. 8851 and above

1шт.

157716

SCREW, 1/4-20 x 1/2 C-Z slt-truss hd mach

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 C-Z int-ext tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

11

CAB ASSY, tractor, Refer to tractor cab and connections listing, Section N

1шт.

12

404151R1

CABLE ASSY, dome light extension

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

3шт.
