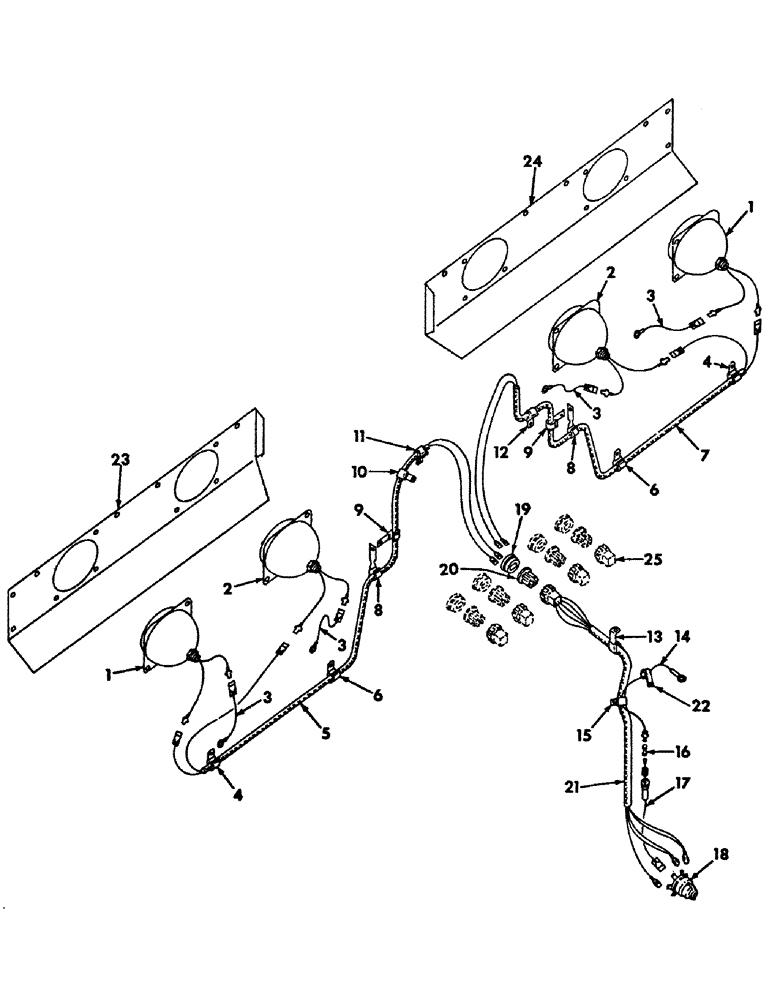

Запчасти Case IH 4100 (G-11) - ELECTRICAL SYSTEM, SIDE HEAD LIGHTS, IN FENDERS (06) - ELECTRICAL SYSTEMS

390755R91

PARTS ACCESSORY, side head lights

1шт.

1

387730R91

LIGHT

ASSY, outer shock proof head, Only serviceable item is sealed beam unit, 373662R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light mounting

6шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 C-Z

6шт.

2

390747R91

LIGHT ASSY, inner shock proof head, Only serviceable item is sealed beam unit, 390759R91

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light mounting

6шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 C-Z

6шт.

3

405209R1

CABLE

ASSY, head light to ground, Replaces 370387R91

1шт.

4

362121R1

CLIP

head light harness, on outer head light mounting bolt, LH and RH side

2шт.

5

390752R91

HARNESS ASSY, LH head light cable

1шт.

6

362121R1

CLIP

head light harness, on inner head light mounting bolt, LH and RH side

2шт.

7

390753R91

HARNESS ASSY, RH head light cable

1шт.

8

363660R1

CLIP

head light harness, on top fender mounting bolt, LH and RH side

2шт.

9

384559R1

CLIP

head light harness, on top fender mounting bolt, LH and RH side

2шт.

10

366460R1

CABLE CLIP

CLIP, head light harness, on air cleaner upper LH mounting bolt

1шт.

11

366460R1

CABLE CLIP

CLIP, head light harness, on air cleaner top mounting bolt

1шт.

12

362121R1

CLIP

head light harness, on voltage regulator upper mounting bolt

1шт.

13

362126R1

CLIP

lighting switch harness, on steering support bracket RH mounting bolt, bend 90 degrees

1шт.

14

390749R91

CAP ASSY, fuse housing

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting switch harness, on steering support cover upper LH mounting bolt

1шт.

16

9426333

FUSE,15 Amp, Type 3AG

15 ampere

1шт.

17

390750R91

HOUSING ASSY, fuse

1шт.

18

390748R92

IGNITION SWITCH

SWITCH ASSY, lighting

1шт.

19

390533R1

GROMMET, 8 contact bulkhead connector

1шт.

20

390532R1

CONNECTOR, bulkhead- 8 contact

1шт.

21

390751R91

HARNESS ASSY, lighting switch cable

1шт.

22

366460R1

CABLE CLIP

CLIP, fuse housing cap cable, on steering support cover upper RH mounting bolt

1шт.

23

393714R1

PLATE, LH head light mounting

1шт.

24

393715R1

PLATE, RH head light mounting

1шт.

25

CONNECTOR, bulkhead, Refer to starting and lighting listing, This section

1шт.
