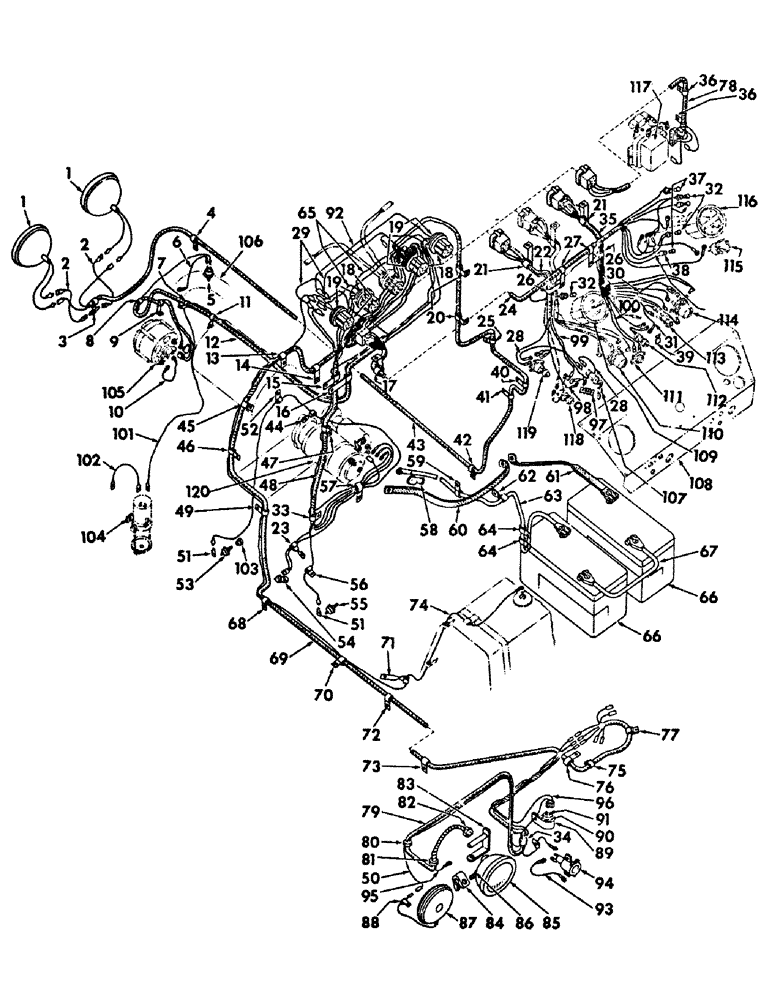

Запчасти Case IH 4100 (G-07) - ELECTRICAL SYSTEM, STARTING AND LIGHTING (06) - ELECTRICAL SYSTEMS

1

387730R91

LIGHT

ASSY, sealed beam head shock mounted, Only serviceable item is sealed beam unit, 373662R91

2шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light housing mounting

6шт.

2

405209R1

CABLE

ASSY, head light to ground, Will work for 370387R91

2шт.

3

362121R1

CLIP

head light harness, on front bolster

1шт.

4

384558R1

CLIP

head light harness, on step support bracket upper mounting bolt

1шт.

102639

NUT,5/8"-11, G5

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

389682R91

SWITCH

electric air cleaner vacuum

1шт.

6

405211R1

CABLE PULLING GRIP

CABLE ASSY, electric air cleaner vacuum switch to ground, Will work for 377120R92

1шт.

7

384559R1

CLIP

alternator generator harness, on air cleaner hose support

1шт.

8

383622R1

CLIP

alternator generator harness, on angle hose support bolt

1шт.

9

362126R1

CLIP

alternator generator harness, on thermostat housing RH front mounting bolt

1шт.

10

385006R91

CABLE ASSY, alternator, Serial Range: generator-ground

1шт.

11

363660R1

CLIP

alternator generator harness, on air cleaner end cover upper RH bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

405271R1

HARNESS ASSY, alternator generator cable, Serial No. 9329 and below

1шт.

12

529318R1

VALVE

HARNESS ASSY, alternator generator, Serial No. 9330 and above

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

13

384559R1

CLIP

rear light harness, on air cleaner top mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

362123R1

CLIP

rear light harness, on air

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

362123R1

CLIP

main harness, on air cleaner upper RH mounting bolt

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

16

362126R1

CLIP

alternator generator harness, on air cleaner upper RH mounting bolt

1шт.

17

362126R1

CLIP

instrument panel harness, on steering support bracket mounting bolt

1шт.

18

390532R1

CONNECTOR, bulkhead, 8 contact

4шт.

19

390533R1

GROMMET, bulkhead connector, 8 contact

4шт.

20

362121R1

CLIP

head light harness, on voltage regulator mounting bolts

2шт.

21

384559R1

CLIP

switch panel harness, on steering support bracket mounting bolt

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3/8-16 hex. jam

1шт.

22

405255R1

HARNESS ASSY, switch panel cable, will work for 390323R91

1шт.

23

363660R1

CLIP

safety switch cables, on park brake pedal lower bracket top front bolt

1шт.

24

405254R1

HARNESS ASSY, instrument panel cable

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light harness, on brake valve bracket upper front mounting bolt

1шт.

26

384559R1

CLIP

switch panel harness, on steering support cover upper mounting bolt

2шт.

27

362123R1

CLIP

instrument panel harness, on steering support cover upper mounting bolts

2шт.

28

405230R1

CABLE ASSY, key switch, will work for 390320R91

2шт.

29

405232R1

CABLE ASSY, instrument light junction, will work for 390330R91

1шт.

30

404398R1

CABLE ASSY.

CABLE ASSY, fuse housing to lighting switch, will work for 379417R91

1шт.

31

404397R1

CABLE

ASSY, fuse housing to junction block, will work for 379416R91

1шт.

32

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt, speedometer, tachometer and gage cluster instrument light

3шт.

33

363117R1

CLIP

main harness, on pedal cover

1шт.

34

376359R1

GROMMET

rubber rear light harness, in rear LH fender brace

1шт.

35

405256R1

HARNESS ASSY, lighting switch cable, will work for 390324R91

1шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, voltage regulator harness, on upper heat baffle top and center mounting bolts

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3/8-16 hex. jam

2шт.

37

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, oil, AMP and transmission tellite flasher

3шт.

38

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

39

42915D

BLOCK

ASSY, junction RH

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132923

SCREW,Sl Rnd Hd, #10 - 32 x 1"

10-32 x 1 C-Z slt-rd-hd mach

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

395-31022

WASHER,#10

13/64 x 15/32 x .036 C-Z

1шт.

40

384559R1

CLIP

head light harness, on brake valve bracket lower rear mounting bolt

1шт.

41

384559R1

CLIP

head light harness, on fender bracket lower mounting bolt

1шт.

42

358986R1

CABLE CLIP

CLIP, head light harness, on steering support lower front mounting bolt

1шт.

43

405257R1

HARNESS ASSY, head light cable, will work for 390328R91

1шт.

44

370819R1

CLIP, engine oil pressure switch cable, on cranking motor top mounting bolt

1шт.

45

362123R1

CLIP

rear light harness, on air cleaner upper LH mounting bolt

1шт.

46

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on top fender front mounting bolt

1шт.

47

362123R1

CLIP

main harness, on air cleaner lower RH mounting bolt

1шт.

48

405288R1

HARNESS ASSY, main cable, Serial No. 9329 and below

1шт.

48

529317R1

HARNESS ASSY, main cable, Serial No. 9330 and above

1шт.

49

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light harness, on fender bracket lower mounting bolt

1шт.

50

405236R1

CABLE ASSY, flasher warning light jumper, will work for 394473R91

1шт.

51

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

52

362667R1

CLIP

engine oil pressure switch cable, on lifting eye lower center mounting bolt

1шт.

53

392249R92

SWITCH

engine oil pressure

1шт.

54

382728R91

SWITCH

safety starting

1шт.

55

395112R1

SWITCH

transmission oil pressure

1шт.

56

384554R1

CLIP

transmission oil pressure switch cable, on park brake pedal lower bracket front mounting bolt

1шт.

57

363117R1

CLIP

main harness, on pedal cover

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

58

364910R1

BOOT

COVER, battery terminal

1шт.

59

362126R1

CLIP

battery to solenoid switch cable, on clutch housing cover rear boss

1шт.

321872R1

SCREW

3/8-16 x 3/4 hex-hd cap w/nylon pellet

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

60

390318R91

CABLE ASSY, cranking motor to ground, Serial No. 9329 and below

1шт.

61

390316R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

62

370383R1

CLIP

battery to solenoid switch cable, on platform front support

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

63

390315R91

CABLE

ASSY, battery to solenoid switch, Serial No. 9329 and below

1шт.

64

358986R1

CABLE CLIP

CLIP, battery to solenoid switch cable, on battery plate support mounting bolts

2шт.

65

405234R1

CABLE ASSY, key switch junction, will work for 390332R91

1шт.

66

390774R91

BATTERY, prestolite D7-6 volt

2шт.

67

390317R91

CABLE ASY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASY, battery cable

2шт.

68

358986R1

CABLE CLIP

CLIP, rear light harness, on steering support top rear mounting bolt

1шт.

69

405259R1

HARNESS ASSY, rear light cable long, will work for 390764R91

1шт.

70

358986R1

CABLE CLIP

CLIP, rear light harness, on platform rear support mounting bolt

1шт.

71

370819R1

CLIP, fuel gage cable, on console rear mounting bolt

1шт.

72

383622R1

CLIP

rear light harness, on fender rear side plate top mounting bolt

1шт.

73

358986R1

CABLE CLIP

CLIP, rear light harness, on fender rear side plate 2nd from rear top mounting bolt

1шт.

74

405231R1

CABLE ASSY, fuel gage sending unit connector, will work for 390321R91

1шт.

75

391213R1

CLIP, rear light harness, on junction block support bracket, LH mounting bolt

1шт.

76

362126R1

CLIP

rear light harness, on junction block support bracket, LH mounting bolt

1шт.

77

391213R1

CLIP, rear light harness, on junction block support bracket, RH mounting bolt

1шт.

78

405267R1

HARNESS ASSY, voltage regulator cable, will work for 397839R1

1шт.

79

405258R1

HARNESS ASSY, rear light cable short, will work for 390759R91

1шт.

80

52118D

GROMMET

rubber, in rear top LH fender

1шт.

81

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

rubber, in rear fender LH side plate

1шт.

82

377105F1

CONNECTOR, combination rear lamp

1шт.

83

390310R11

SUPPORT

ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

84

350920R1

CLAMP

rear light

1шт.

85

387729R91

LIGHT

ASSY, combination rear shock mounted, only serviceable items are lamp, 455490 and unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

86

365503R1

SPACER

rear light

1шт.

87

394129R91

LIGHT

ASSY, flashing warning, Only serviceable item is lamp, 9417866

1шт.

394262R1

WASHER

GASKET, flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

88

358986R1

CABLE CLIP

CLIP, flasher light cable, on warning light stud

1шт.

89

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

90

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

91

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

92

405233R1

CABLE ASSY, AMP tellite junction, will work for 390331R91

1шт.

93

CABLE ASSY, breakaway connector socket to ground, Refer to electric breakaway connector socket listing, This section

1шт.

94

SOCKET ASSY, electric breakaway, Refer to electric breakaway connector socket listing, This section

1шт.

95

405211R1

CABLE PULLING GRIP

CABLE ASSY, combination light to ground, will work for 377120R92

1шт.

96

405896R1

CABLE ASSY, flasher and breakaway connector, will work for 394344R91

1шт.

97

47915D

BLOCK ASSY, junction, LH, tractors w/mechanically operated ether starting

1шт.

97

371031R91

BLOCK ASSY, junction, LH, tractors w/solenoid operated ether starting

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132923

SCREW,Sl Rnd Hd, #10 - 32 x 1"

10-32 x 1 C-Z slt-rd-hd mach

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

395-31022

WASHER,#10

13/64 x 15/32 x .036 C-Z

1шт.

98

405237R1

CABLE ASSY, ether injection solenoid control switch to junction block, will work for 395086R1

1шт.

99

404391R1

CABLE

ASSY, push button switch to junction block, will work for 357929R92

1шт.

100

395083R1

CABLE ASSY, ether injection solenoid control switch to harness connector

1шт.

101

395084R1

CABLE ASSY, ether injection, Serial Range: solenoid-ground

1шт.

102

395085R1

CABLE ASSY, ether injection, Serial Range: solenoid-ground

1шт.

103

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

104

SOLENOID ASSY, ether starting, Refer to ether starting and connections listing, Section E

1шт.

105

ALTERNATOR GENERATOR ASSY, Refer to alternator generator listing, This section

1шт.

106

HOSE ASSY, air cleaner, Refer to air cleaner and connections listing, Section E

1шт.

107

SWITCH ASSY, ignition, Refer to engine controls and instruments listing, Section H

1шт.

108

PANEL ASSY, instrument, Refer to engine controls and instruments listing, Section H

1шт.

109

GAUGE ASSY, speedometer-tachometer, Refer to engine controls and instruments listing, Section H

1шт.

110

SWITCH ASSY, side headlight, Refer to engine controls and instruments listing, Section H

1шт.

111

SWITCH ASSY, ether start, Refer to engine control and instruments listing, Section H

1шт.

112

LIGHTER ASSY, cigarette, Refer to engine controls and instruments listing, Section H

1шт.

113

HOUSING ASSY, fuse, Refer to engine controls and instruments listing, Section H

1шт.

114

SWITCH ASSY, lighting, Refer to engine controls and instruments listing, Section H

1шт.

115

INDICATOR ASSY, air cleaner, Refer to engine controls and instruments listing, Section H

1шт.

116

GAUGE ASSY, cluster, Refer to engine controls and instruments listing, Section H

1шт.

117

REGULATOR ASSY, voltage, Refer to alternator generator and connections listing, This section

1шт.

118

SWITCH ASSY, horn, Refer to engine controls and instruments listing, Section H

1шт.

119

SWITCH ASSY, push button, Refer to engine controls and instruments listing, Section H

1шт.

120

MOTOR ASSY, cranking, Refer to cranking motor listing, This section

1шт.
