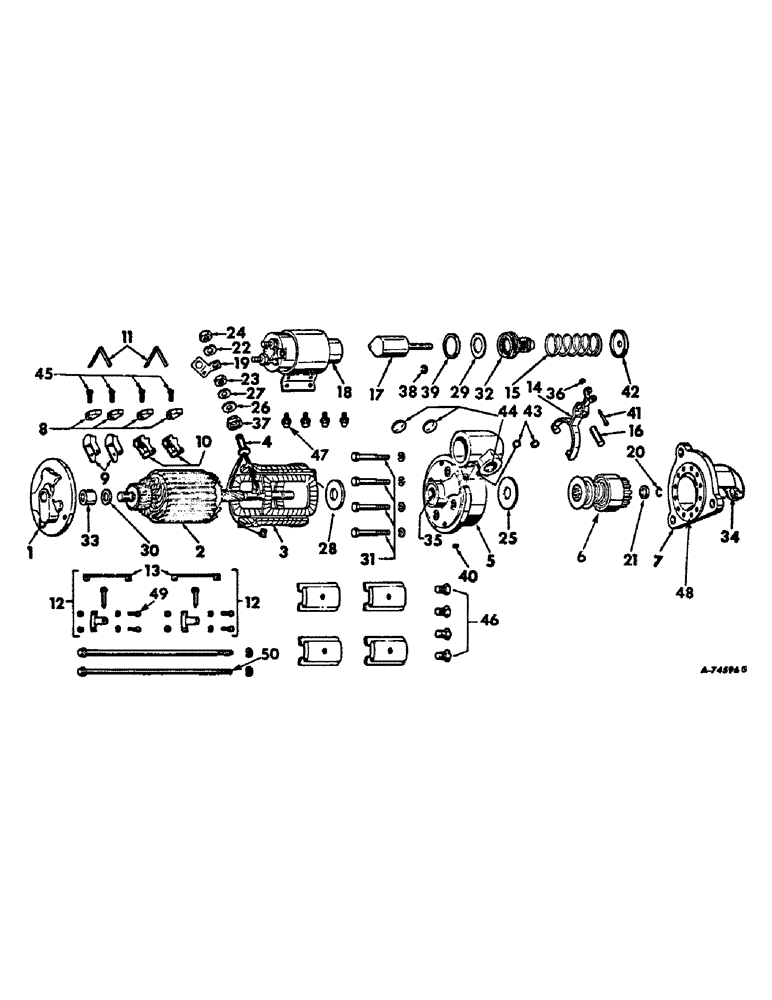

Запчасти Case IH 4100 (G-05[A]) - ELECTRICAL SYSTEM, BATTERY HOLD DOWN CLAMP (06) - ELECTRICAL SYSTEMS

1113682

MOTOR ASSY, cranking, 406178R91, replaces 1114123, also order battery cable, 527319R2 and spacer, 390554R1

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

3шт.

390554R1

SPACER, governor mounting support, upper mounting screw

1шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

1

1971855

FRAME, commutator end

1шт.

1916439

WICK

commuator end

1шт.

9421423

WASHER

C.E. frame attaching lock

4шт.

2

1959458

ARMATURE

1шт.

3

800852

COIL ASSY.

COIL ASSY, field

4шт.

1868835

INSULATOR

INSULATION, field coil

2шт.

1971857

INSULATOR

field coil

1шт.

4

1950561

STUD

terminal

1шт.

5

1971904

HOUSING, lever

1шт.

1914869

SCREW

lever housing attaching

5шт.

9421423

WASHER

lever housing attaching screw

5шт.

6

1968662

DRIVE, clutch motor

1шт.

800166

TERMINAL, commutator end

1шт.

1950064

BUSHING

terminal

1шт.

9421425

WASHER

LOCKWASHER, terminal

1шт.

7

1949370

HOUSING

drive

1шт.

1867150

OIL RESERVOIR

SEAL, lever housing oil

1шт.

1945356

PLUG

inspection

1шт.

1964857

GASKET

inspection plug

1шт.

8

1906988

BRUSH, COMMUTATOR

BRUSH

4шт.

9

1971848

PLATE, brush holder

3шт.

1971851

PLATE, brush

1шт.

9417096

SCREW

brush plate attaching

1шт.

810794

WASHER

brush plate screw

1шт.

453844

WASHER

brush plate screw lock

1шт.

10

1971849

HOLDER, insulated brush

4шт.

11

1971846

SPRING

brush

4шт.

1971847

PIN, brush spring

4шт.

1971854

CONNECTOR, brush strap

3шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

NOT USED IN THIS APPLICATION

1шт.

14

1942245

LEVER

ASSY, shift

1шт.

15

1948521

SPRING

lever assy

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

ASSY

1шт.

18

1115518

IGNITION SWITCH

SWITCH SOLENOID

1шт.

19

1971905

WIRE CONNECTOR

CONNECTOR, switch

1шт.

1947350

WICK

lever housing

1шт.

20

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

21

1928021

COLLAR

drive end pinion stop

1шт.

22

9421427

WASHER

terminal stud lock

1шт.

23

9414418

NUT

terminal stud

2шт.

24

280136

NUT,3/8"-16, G8

Terminal 3/8"-16, G8

1шт.

25

821453

WASHER

brake, between center brg and motor drive

1шт.

26

1922457

WASHER

insulated terminal stud

2шт.

27

805790

WASHER

terminal stud plain

1шт.

811912

WASHER

terminal stud

1шт.

28

1946395

WASHER

space, between lever housing and armature

1шт.

29

1942259

WASHER

spring retainer

1шт.

30

1914842

WASHER

commutator end

1шт.

31

1962546

BOLT (SPREADER)

SCREW, drive housing attaching

4шт.

32

1949618

BOOT

1шт.

33

800139

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING, lever attaching snap

1шт.

37

1965472

PACKAGE

BUSHING, insulated terminal stud

1шт.

38

9415235

RING, SNAP

RING, spring retaining plunger snap

1шт.

39

1942256

RETAINER

1-13/64 hole spring

1шт.

40

NOT USED IN THIS APPLICATION

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, 13/32 hole spring

1шт.

43

9419572

PLUG

1/2 lever housing expansion

2шт.

44

9411375

PLUG

1-3/16 lever housing expansion

2шт.

45

1971852

SCREW, brush spring pin attaching

4шт.

46

1964294

SCREW

AND WASHER, pole shoe

8шт.

47

1930611

LOCK SCREW

SCREW AND WASHER, switch attaching

1шт.

48

1946012

GASKET

housing

1шт.

49

1971853

SCREW, brush holder attaching

4шт.

453418

LOCK SCREW

SCREW, brush lead attaching

4шт.

1916272

O-RING

C.E. and D.E.

2шт.

50

1914869

SCREW

commutator end frame attaching

4шт.

1

390311R11

CLAMP ASSY, battery hold down

2шт.

2

393161R1

ROD

battery hold down clamp

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex, battery hold down clamp

8шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065, battery hold down clamp

8шт.
