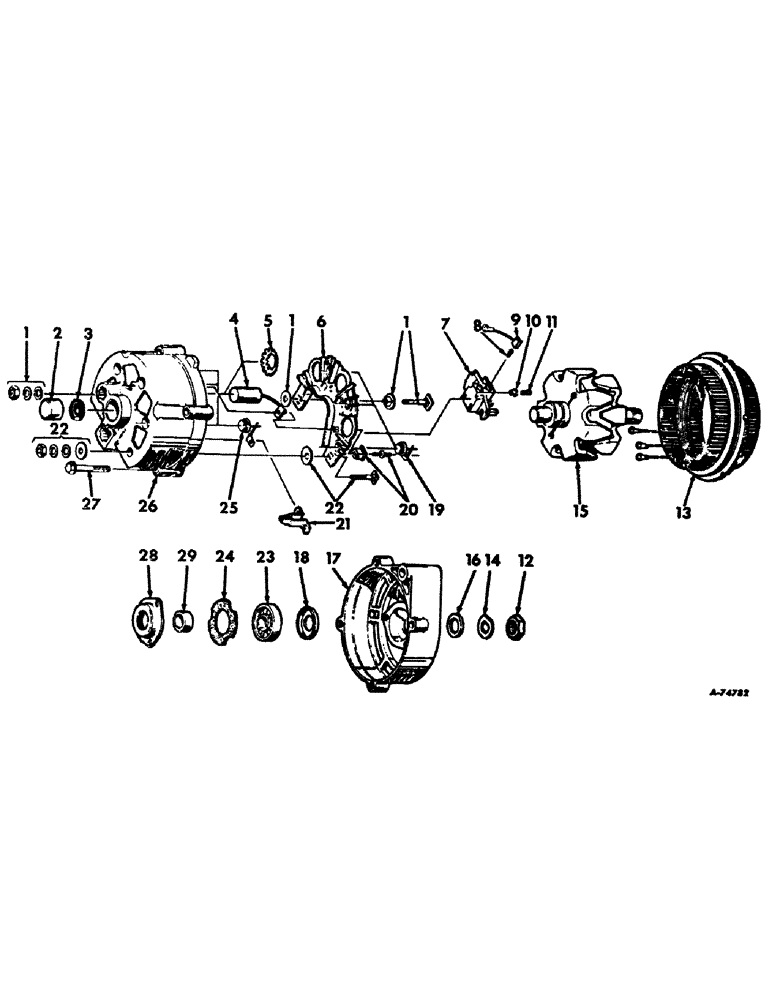

Запчасти Case IH 4100 (G-04) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, S/N 8604 & ABOVE (06) - ELECTRICAL SYSTEMS

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

NUT, no. 12-24 hex mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL PACKAGE, ground

1шт.

2

7451326

BEARING

BEARING, slip ring end roller

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

1959523

SPARE PART WASHER, capacitor screw insulator

1шт.

5

1960750

VALVE SPRING

SPRING, capacitor

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush and spring

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

NOT SERVICED SEPARATELY, Order holder assy, 1964682

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959531

STATOR

STATOR ASSY

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1958565

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

1964353

DIODE

DIODE, positive

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

904751

BEARING

BEARING, drive end ball

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1964354

DIODE

DIODE, negative

3шт.

26

1969329

FUNNEL

FRAME FRAME, slip ring end retainer and condenser

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing screw, attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.
