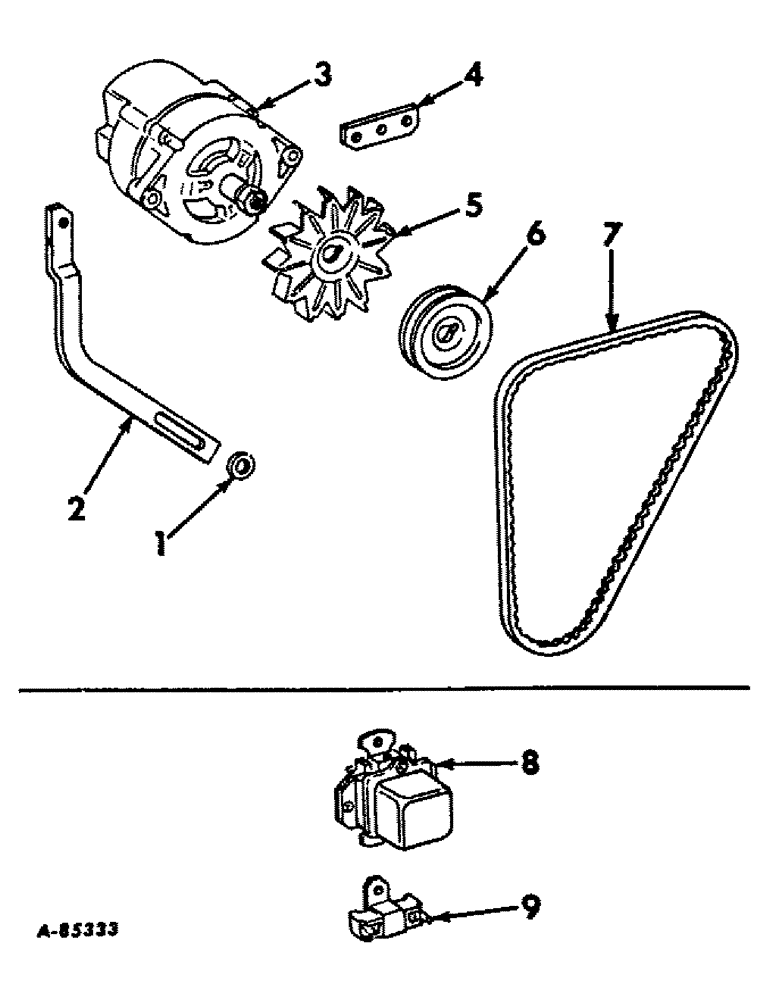

Запчасти Case IH 4100 (G-02) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
Q5028
WASHER
SPACER, alternator generator brace
1шт.
2
390308R1
SPARE PART BRACE, alternator generator
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
BOLT, Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
3
1100720
ALTERNATOR
ALTERNATOR GENERATOR ASSY, 389276R91, Serial Range: -8603
1шт.
3
1100791
GENERATOR
ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator listing, This section, Start Serial: 8604
1шт.
3
103805A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 55 ampere
1шт.
3
103805A1C
CORE-ALTERNATOR
Return Number
1шт.
3
103806A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 60 ampere
1шт.
3
103806A1C
CORE-ALTERNATOR
Return Number
1шт.
225-14112
NUT,#12-24
12-24 C-Z hex. mach screw
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
121744
ANGLE
Washer, Lock, #12
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
4
390309R1
WASHER
STRIP, alternator generator mounting bracket
1шт.
102635
NUT,3/8"-16, G5
NUT, 3/8"-16, G5
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
186283
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
SCREW, 3/8-16 x 3-/12 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
5
1940994
FAN
FAN, pulley, 221425R1
1шт.
6
390536R1
SPARE PART PULLEY, alternator generator
1шт.
7
390461R1
BELT
BELT, water pump and alternator
1шт.
8
1119516
REGULATOR
REGULATOR ASSY, voltage, 384988R91, Composed of
1шт.
1958151
COVER
1шт.
1119515
REGULATOR
REGULATOR
1шт.
1119515GV
VOLTAGE REGULATOR
REGULATOR
1шт.
1962733
SCREW
SCREW, cover
2шт.
1963629
SHOCK BRACKET PACKAGE
1шт.
109084
NUT,1/4"-20, G5
NUT, 1/4"-20, G5
2шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
SCREW, 1/4-20 x 3/4 hex-hd cap
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
9
260602C91
RESISTOR
RESISTANCE UNIT
1шт.
Выбрано товаров: 32
