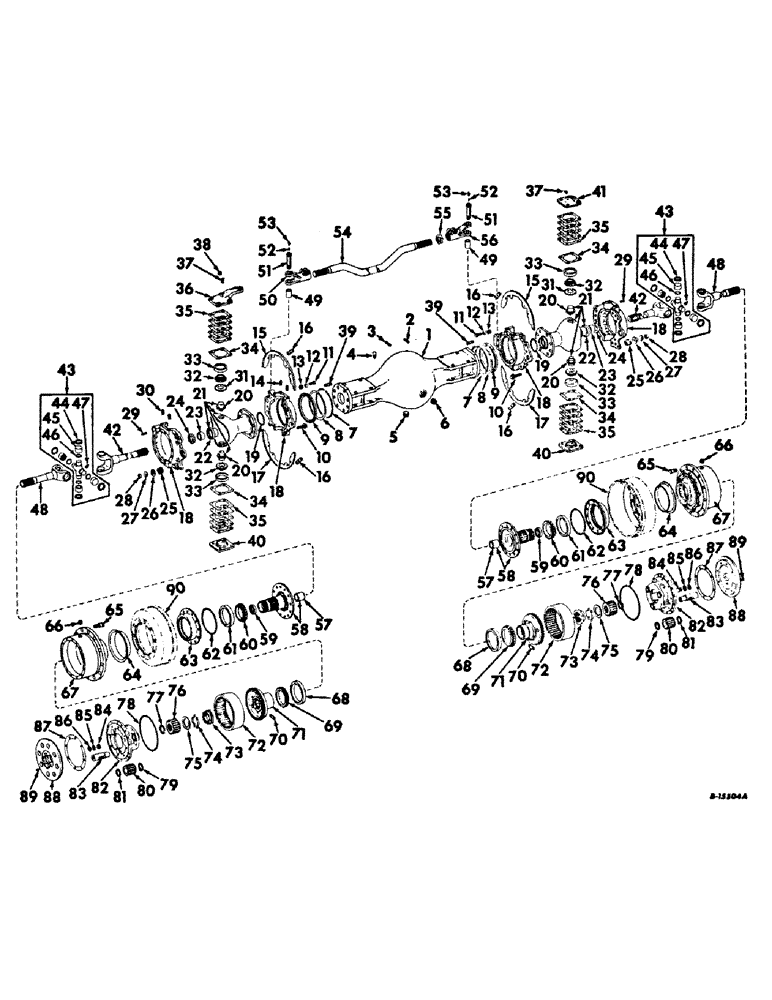

Запчасти Case IH 4100 (B-09) - POWER TRAIN, FRONT AXLE AND CONNECTIONS, LESS DIFFERENTIAL CARRIER AND BRAKES (03) - POWER TRAIN

1

393657R1

HOUSING, axle

1шт.

218200

NUT,7/8"-14, G5

7/8-14 hex.

8шт.

17292R1

SCREW, 7/8-14 x 7 hex-hd cap

8шт.

2

899973R1

STUD

carrier to housing short

10шт.

158183H1

NUT,5/8"-18

5/8-18 nylon insert

10шт.

899168R1

WASHER, Serial Range: carrier-housing

10шт.

3

72338R1

STUD

carrier to housing long

4шт.

158183H1

NUT,5/8"-18

5/8-18 nylon insert

4шт.

899168R1

WASHER, Serial Range: carrier-housing

4шт.

4

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

axle housing

1шт.

5

20981R1

PLUG

1-1/4 auto sq-soc-hd pipe, axle housing bottom

1шт.

6

20965R1

PLUG

1-1/4 auto sq-hd pipe, axle housing side

1шт.

7

149446H1

RETAINER

RING, trunnion socket oil seal snap

2шт.

8

149445H1

RETAINER

trunnion socket oil seal

2шт.

9

149444H1

RESERVOIR, HYDRAULIC

SEAL, trunnion socket oil

2шт.

10

116287H1

BOLT ASSY, brake cam

4шт.

11

254483R1

BOLT

SCREW, steering stop

2шт.

12

611153R1

SPACER, stop screw, For use w/18.4-26 R1, R2 and R4 or 18.4-30 R1 tires

2шт.

12

573713R1

SPACER,3/4" Tube x 11/16"

steering stop screw, For use w/18.4-30 R2, 23.1-26 R1 R3 and R4 tires

2шт.

12

394703R1

SPACER, steering stop screw, For use w/18.4-34 R1 or 23.1-26 R2 tires

2шт.

12

399366R1

SPACER, steering stop screw, For use w/28.1-26 tires

2шт.

13

109471H1

SHIM, stop screw

12шт.

14

393666R1

STUD

steering arm long

2шт.

15

393685R1

SHIELD

dust, top RH, bottom LH

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

878163R1

PLATE, dust shield mounting

4шт.

560164R1

SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd

3/8-16 x 7/8 hex-hd cap type 4

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

393686R1

SHIELD

dust, top LH, bottom RH

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

393663R91

FLANGE ASSY, steering knuckle and companion, Composed of

2шт.

116287H1

BOLT

2шт.

109386H1

BUSHING

1шт.

136583H

CAM

2шт.

FLANGE (NSS)

2шт.

878177R1

NUT

2шт.

275200C1

RETAINER

2шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW

6шт.

328702R1

BOLT

SCREW

2шт.

393664R1

SPRING

2шт.

103363

PIN, SPLIT (COTTER)

WASHER

8шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 hex-hd cap type 4

12шт.

328702R1

BOLT

SCREW, 1/2-20 x 1-7/8 hex-hd cap type 4

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

19

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8, Trunnion socket to housing

2шт.

20

393659R1

PIN, steering brg

4шт.

21

393658R91

SOCKET ASSY, trunnion

2шт.

20746R1

NUT, 3/4-16 ESNA stop

16шт.

22

393660R1

HOLDER

SUPPORT, axle drive shaft and bushing

2шт.

23

393661R1

BUSHING

inner axle

2шт.

24

393662R91

SEAL

inner axle oil

2шт.

25

116290H1

SPRING, brake cam

4шт.

26

116289H1

RETAINER, brake cam spring

4шт.

27

136583H

CAM

brake shoe adjusting

4шт.

28

878177R1

NUT, 1/2-20 thick hex.

4шт.

29

152138H1

STUD, steering, Serial Range: knuckle-flange

24шт.

30

878423R1

STUD

steering arm short

2шт.

31

109379H1

RETAINER

upper brg grease

2шт.

32

49372H

BEARING ASSY,1.75" ID x 1.1142"

ASSY, trunnion cone

4шт.

33

40542V

BEARING CUP

trunnion cup

4шт.

34

109470H1

SHIM

trunnion brg, .010, Or as required

4шт.

35

109469H1

SHIM

trunnion brg, .005, Or as required

20шт.

36

393668R2

ARM, steering

1шт.

274468

HAMMER

NUT, 5/8-18 hex.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

37

16884R1

FITTING, 1/8-27PTF 65 degree angle vented lub, trunnion brgs and joint

2шт.

38

109376H1

BUSHING

DOWEL, steering arm stud taper

2шт.

39

393874R1

STUD

trunnion, Serial Range: socket-housing

16шт.

40

109486H1

CAP

trunnion brg lower

2шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap type 4

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

41

109485H1

CAP, trunnion brg upper

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap type 4

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

42

393669R1

YOKE

inner axle

2шт.

43

393671R91

U-JOINT SPIDER

PACKAGE, spider and brg

2шт.

44

968898R1

SNAP RING,1.938", Int, #193

Ring, Snap, 1.938", Int, #193

8шт.

45

393672R91

BEARING ASSY, needle cup

8шт.

46

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1-1/8, needle cup brg

8шт.

47

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 degree lub

2шт.

48

393670R1

YOKE

outer axle

2шт.

49

109386H1

BUSHING

steering yoke bolt

2шт.

50

109495H1

YOKE

tie rod, 12 thread

1шт.

225857

NUT

1/2-20 C-Z hex.

2шт.

21178R1

SCREW, 1/2-20 x 2-3/4 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

51

109354H1

BOLT

tie rod yoke end

2шт.

109384H1

NUT

tie rod yoke end

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

52

878424R1

PIN

tie rod end bolt lock

2шт.

53

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27PTF 30 degree angle lub, tie rod end

2шт.

54

393731R1

ROD

steering tie

1шт.

55

109385H1

NUT, tie rod yoke lock

1шт.

56

109494H1

YOKE

tie rod, 16 thread

1шт.

225857

NUT

1/2-20 C-Z hex.

2шт.

21178R1

SCREW, 1/2-20 x 2-3/4 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

57

136237H1

BUSHING

steering knuckle

2шт.

58

393673R91

STEERING KNUCKLE

KNUCKLE ASSY, steering

2шт.

59

393675R91

OIL SEAL

SEAL, outer axle shaft oil

2шт.

60

393803R91

BEARING ASSY,4" ID x 6.1875" OD x 1.4375"

ASSY, inner axle cone

2шт.

61

64371H

BEARING ASSY

inner axle cup

2шт.

62

295243R1

O-RING

8-3/4 x 9 x 1/8, steering knuckle

2шт.

63

148522H2

RETAINER

ASSY, hub brg oil seal

2шт.

144422H

LOCK NUT,9/16" - 18, GC

NUT, 9/16-18 ESNA stop

24шт.

148528H1

OIL RESERVOIR

WASHER, hub brg oil seal retainer stud nut

24шт.

64

136251H1

SLINGER

hub brg oil

2шт.

65

135996H1

WHEEL BOLT,3/4" - 16 x 2 3/8", Gr 8

STUD, wheel

24шт.

84711H

NUT

wheel stud

24шт.

66

395164R1

PLUG, planetary drain, in wheel hub

2шт.

67

393687R91

HUB CAP

HUB W/CUP, ST 983 and cup, 64371H, wheel

2шт.

68

ST2094

TAPERED BEARING,4.625" ID x 7.125" OD x 1.375"

BEARING ASSY, outer axle cone

2шт.

69

ST983

TAPERED BEARING,4.5" ID x 7.125" OD x 1.375"

BEARING, outer axle cup

2шт.

70

136003H1

LOCK, planetary ring gear

8шт.

141292H

BOLT,Drilled Hex, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 dld-hex-hd cap

16шт.

71

136026H1

HUB ASSY, planetary ring gear

2шт.

72

136023H1

WHEEL GEAR

GEAR, planetary ring, 52T

2шт.

73

136004H1

NUT, hub brg adjusting

2шт.

74

136013H1

LOCK, hub brg adj nut

4шт.

75

136005H1

WASHER

sun gear thrust

2шт.

76

136024H1

GEAR

planetary sun, 20T

2шт.

77

165814R1

RING

sun gear snap

2шт.

78

183214H1

GASKET

O-RING, 11-1/2 x 11-/16 x 3/32, Planet spider to wheel hub

2шт.

79

136006H1

WASHER

planetary pinion thrust outer

6шт.

80

136025H1

PINION

planetary, 16T

6шт.

81

198031H1

THRUST WASHER

planetary pinion thrust inner

6шт.

82

144029H1

U-JOINT SPIDER

SPIDER, planetary gear

2шт.

20653R1

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 8

SCREW, 1/2-13 x 1-5/8 hex-hd cap type 4

32шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

83

204067H1

SHAFT

planetary pinion

6шт.

84

136012H1

BUTTON

sun gear thrust

2шт.

85

162470H1

SHIM

thrust button, .010, Or as required

6шт.

86

162471H1

SHIM

thrust button, .015, Or as required

4шт.

87

136016H1

GASKET

planetary spider cover

2шт.

88

393728R91

COVER ASSY

planetary spider

2шт.

877002C1

CAPSCREW, planetary spider

16шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

89

444775

PLUG

1/4-18 auto. sq-soc-hd drain, In spider cover

2шт.

90

DRUM, brake, Refer to wheel brakes and connections listing, Section H

1шт.
