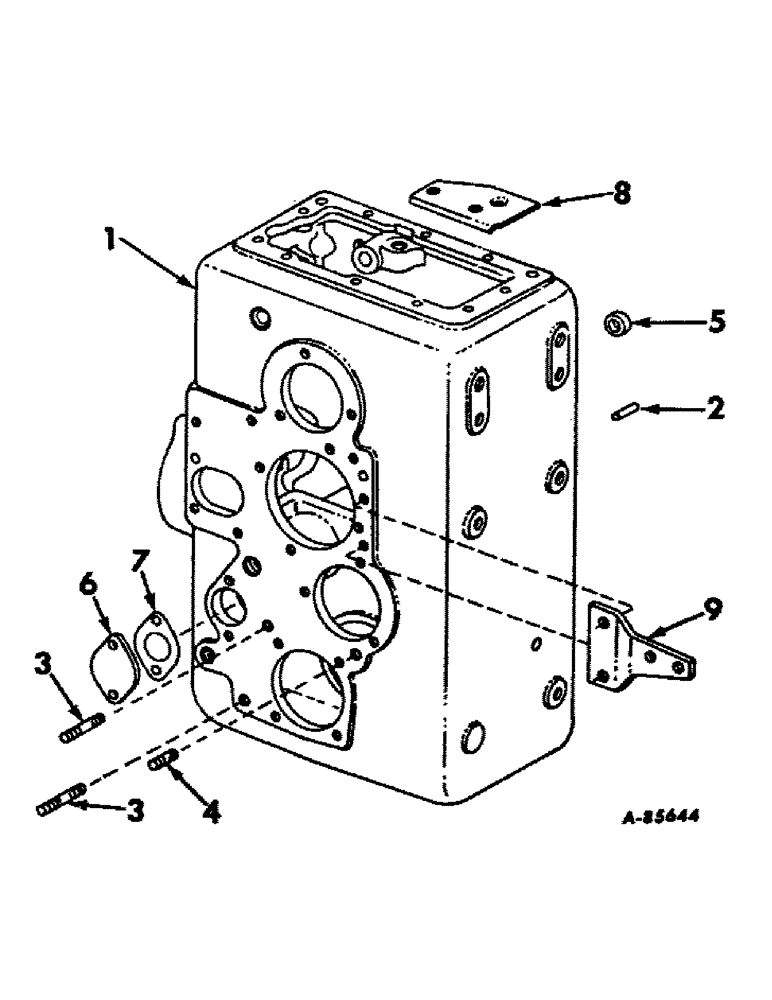

Запчасти Case IH 4100 (B-05) - POWER TRAIN, TRANSFER CASE AND COVERS (03) - POWER TRAIN

1

390337R21

CASE

ASSY, transfer, Composed of

1шт.

390337R2

CASE (NSS)

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

2шт.

160170R1

STUD

2шт.

190142R1

STUD

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

2шт.

2

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel

1шт.

3

160170R1

STUD, brake bracket long

2шт.

4

190942R1

STUD

brake bracket short

1шт.

5

111710R91

SEAL

shift shaft

1шт.

6

390339R1

COVER, independent PTO suction opening

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

390340R1

GASKET

independent PTO suction opening cover

1шт.

8

394711R1

BAFFLE, lube

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

390703R1

BRACKET, brake cable anchor

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

2шт.
