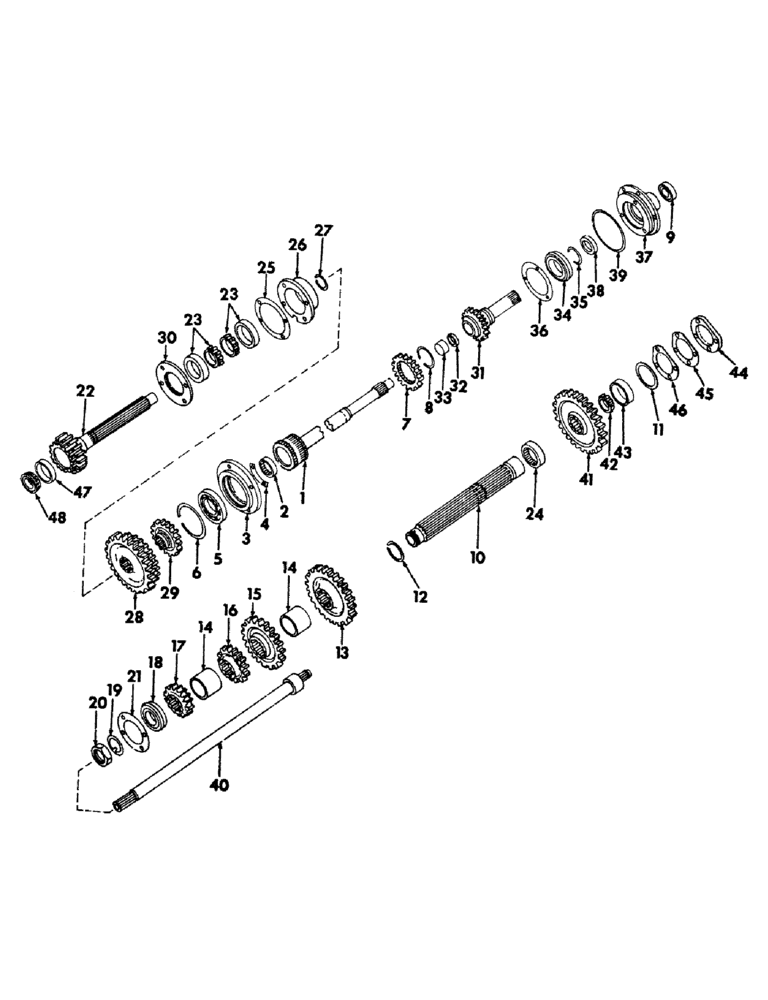

Запчасти Case IH 4100 (B-03) - POWER TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (03) - POWER TRAIN

1

380076R3

SHAFT

transmission drive, 26T

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

ASSY, main shaft front needle

1шт.

3

380080R1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive bearing cage internal retaining

1шт.

7

3980256R1

GEAR, constant mesh drive, 26T

1шт.

8

381330R1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch shaft pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

380082R2

SHAFT

COUNTERSHAFT

1шт.

11

384103R1

SEAL RETAINER

SEAL, PTO front brg retainer

1шт.

12

357035R1

RING

constant mesh gear snap

1шт.

13

390257R1

GEAR, constant mesh, 47T

1шт.

14

380126R1

BUSHING

SPACER, countershaft gears

2шт.

15

390815R1

GEAR, 3rd speed driving, 44T

1шт.

16

390816T1

GEAR, 2nd speed driving, 40T

1шт.

17

390259R1

PINION

GEAR, 1st speed driving, 27T

1шт.

18

ST345A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, countershaft rear

1шт.

19

390091R2

WASHER, countershaft brg lock nut

1шт.

20

380092R1

NUT

countershaft brg lock

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

3/8-16 x 1-1/8 hex hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

390260R3

SHAFT

main, 23T

1шт.

23

ST2132

BEARING ASSY,55mm ID x 90mm OD x 23mm W

main shaft rear

2шт.

24

384114R961

BEARING, countershaft front

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

380096R2

CAGE

main shaft rear bearing

1шт.

27

380097R1

RING

main shaft rear bearing snap

1шт.

28

390817R1

GEAR, 1st and 2nd speed sliding, 46 and 32T

1шт.

29

390818R1

GEAR, 3rd and 4th speed sliding, 29T

1шт.

30

380098R2

RETAINER

main shaft rear bearing

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

380261R1

SHAFT

PTO drive, 28T

1шт.

32

385134R91

OIL SEAL

PTO drive shaft oil

1шт.

33

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

PTO drive shaft

1шт.

34

ST343

BEARING

PTO drive shaft

1шт.

35

384337R1

RING

PTO shaft brg snap

1шт.

36

384184R1

RETAINER

PTO shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

3шт.

37

384079R2

CAGE

PTO drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

38

384090R91

OIL SEAL

PTO shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8, PTO shaft bearing cage sealing

1шт.

40

390263R11

SHAFT

ASSY, PTO driven

1шт.

384342R2

SPACER, driven gear

1шт.

41

391828R1

GEAR WHEEL

GEAR, PTO driven, 58T

1шт.

42

G15215

ROLLER BEARING

BEARING ASSY, PTO driven shaft front cone

1шт.

43

619387R1

BEARING CUP

BEARING, PTO driven shaft front cup

1шт.

44

380107R1

RETAINER

PTO driven shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

4шт.

45

384382R1

SHIM

PTO shaft brg retainer, .028

1шт.

46

384106R1

SHIM

PTO driven shaft brg retainer, Or as required

3шт.

47

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING, main shaft front cup

1шт.

48

871244R91

ROLLER BEARING

BEARING ASSY, main shaft front cone

1шт.

372703R5

FLUID, Hy-tran, Quart can

1шт.

372704R5

FLUID

Hy-tran, Gallon can

1шт.

372705R5

FLUID

Hy-tran, Five gallon can

1шт.

407024R5

FLUID, Hy-tran, Fifteen gallon can

1шт.
