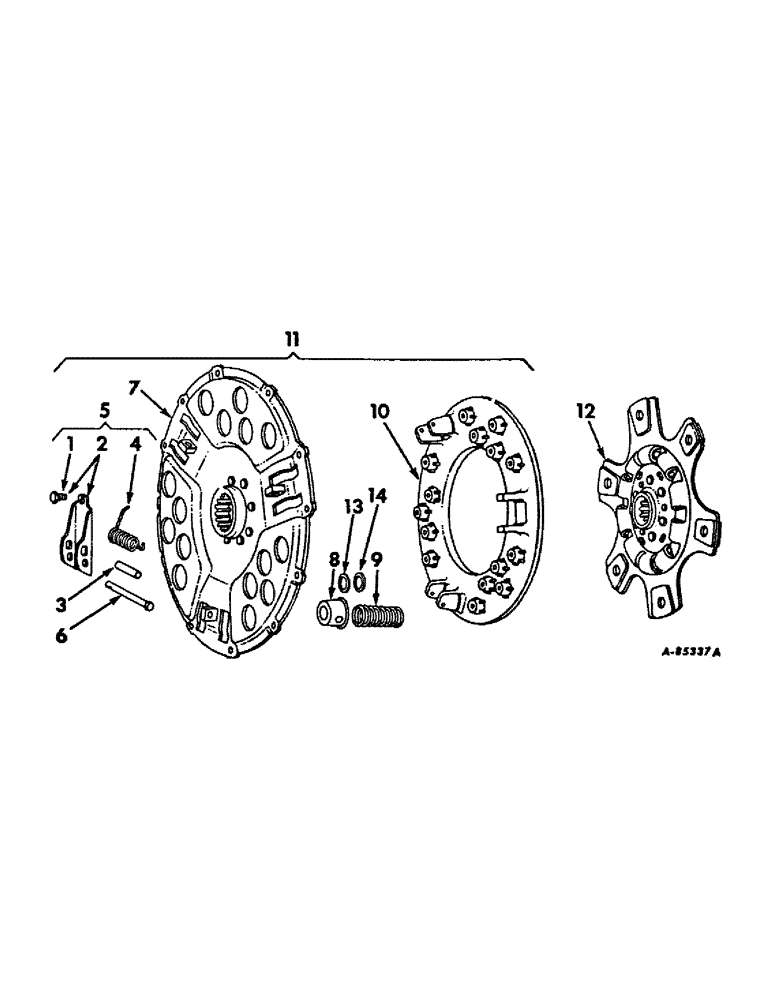

Запчасти Case IH 4100 (B-02) - POWER TRAIN, CLUTCH (03) - POWER TRAIN

1

163479R1

SCREW

clutch lever adjusting, Includes: Ref. 2

3шт.

2

390810R91

LEVER

ASSEMBLY, clutch

3шт.

3

146810R1

AXLE PIN

PIN, lever pivot

3шт.

4

390809R1

SPRING

clutch lever

3шт.

5

390808R91

KIT

PACKAGE, clutch lever assembly

1шт.

6

146809R1

PIN

clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065

3шт.

7

390806R92

PLATE

ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

9

172062R1

SPRING

clutch pressure

12шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

390254R93

CLUTCH PLATE

PLATE ASSY, clutch pressure

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

12

394239R92

DISC

ASSY, dyna-life clutch driven

1шт.

13

311291C1

INSULATING WASHER

insulating

12шт.

14

311292C1

WASHER

RETAINER, washer

12шт.
