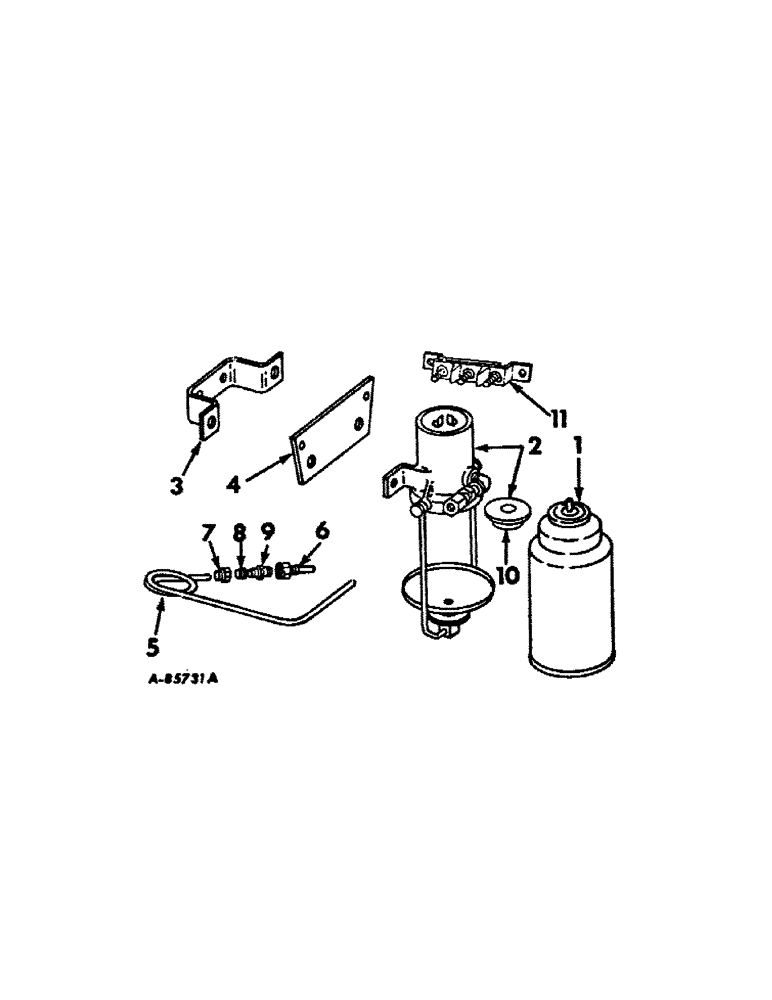

Запчасти Case IH 4100 (E-06[A]) - FUEL SYSTEM, ETHER STARTING, SOLENOID OPERATED (02) - FUEL SYSTEM

1

385064R91

FLUID

ether starting, 12 oz can

1шт.

2

393719R92

NOZZLE

SOLENOID ASSY, ether starting, replaces 393719R91, Consists of

1шт.

395686R1

GASKET

1шт.

404247R1

BAIL

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

400443R1

BRACKET ASSY, solenoid mounting, Will work for 395087R1

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

395089R1

STRIP ASSY, solenoid mounting

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

400442R1

PIPE, starting fluid, will work for 395091R1

1шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

121220

TUBE NUT

NUT, tube connector

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

140284

PIPE FITTING

CONNECTOR, tube

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

378336R91

BLOCK

junction small

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 C-Z pan-hd-slt mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.
