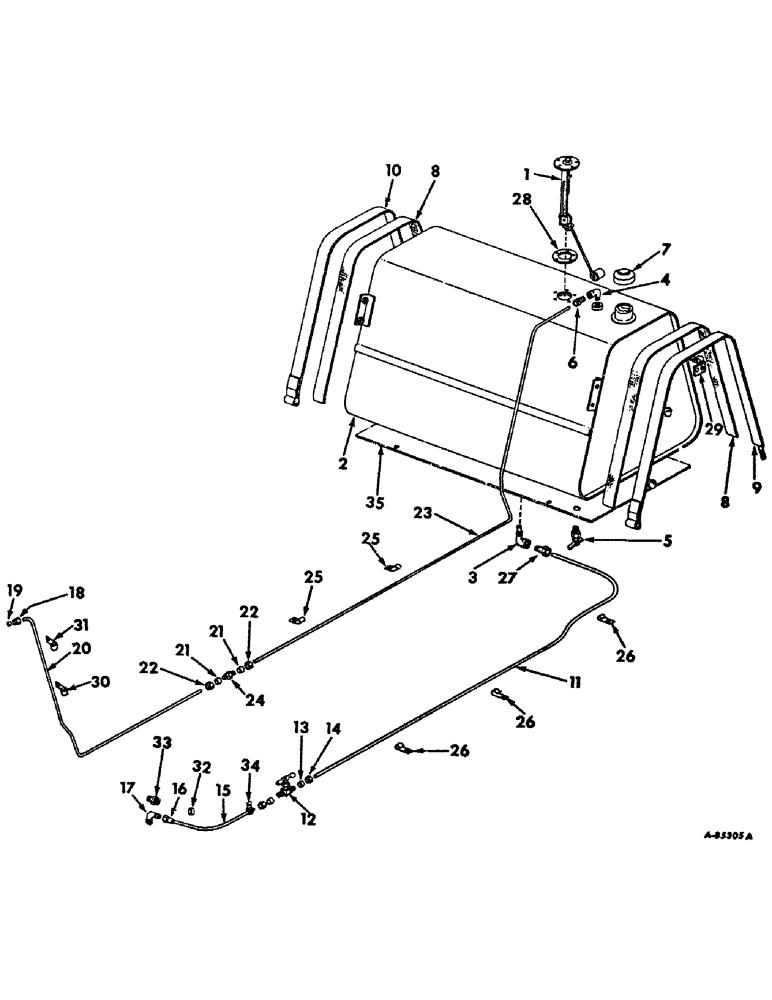

Запчасти Case IH 4100 (E-04) - FUEL SYSTEM, FUEL TANK, PIPING AND HOLD DOWN STRAPS (02) - FUEL SYSTEM

1

390312R91

NO LONGER SERVICED

GAGE ASSY, electrical fuel sending unit

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

390286R91

TANK W/FILLER CAP, fuel

1шт.

102637

NUT,1/2"-13, G5

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

390295R91

FITTING ASSY, fuel tank outlet stand pipe

1шт.

4

252374R1

ELBOW,90 Degree x 1/4" NPT x 7/16"-24

7/16-24 90 degree hi-duty tube fitting male pipe

1шт.

5

86982771

VALVE

COCK, 1/4 PTF type E drain

1шт.

6

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty fitting

1шт.

7

23995DC

FILLER CAP

CAP ASSY, fuel

1шт.

8

PAD, fuel tank strap, Use 63 inches of cotton webbing from 50 foot roll marked, 990543R1

2шт.

9

390299R91

STRAP ASSY, fuel tank hold down LH

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

Q3550

PIN

1/2 x 3-1/8 std-hd

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

Q5035

WASHER

17/32 x 1 x 16 GA

1шт.

10

390300R11

STRAP ASSY, fuel tank hold down RH

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

Q3550

PIN

1/2 x 3-1/8 std-hd

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

Q5035

WASHER

17/32 x 1 x 16 GA

1шт.

11

390303R11

PIPE ASSY, tank to shutoff fuel line, Includes: Ref. 13, 14 and 27

1шт.

12

390304R91

VALVE

ASSY, fuel line shutoff

1шт.

13

222-654

FERRULE,3/8" Tube, Comp

3/8 ball

2шт.

14

NLS

NO LONGER SERVICED

9/16-24 ball sleeve tube

2шт.

15

390742R91

PIPE ASSY, shut-off to primary fuel filter, For tractors with solar turbocharger

1шт.

15

400917R91

TUBE ASSY, shut-off to primary fuel filter, For tractors with airesearch turbocharger

1шт.

16

NLS

NO LONGER SERVICED

NUT, 5/8-18 flared tube short, For tractors with solar turbocharger

1шт.

16

265205R1

TUBE NUT,0.531" Length

NUT, 3/8 OD flex tube, For tractors with airesearch turbocharger

1шт.

17

393125R1

ELBOW, primary fuel filter, For tractors with solar turbocharger

1шт.

18

915499R1

TUBE NUT

NUT, 1/4 OD tube flex, At fuel return manifold tee

1шт.

19

915500R1

SLEEVE

1/4 OD tube flex, At fuel return manifold tee

1шт.

20

390306R11

PIPE ASSY, fuel return front line, Includes nut, 114627 and sleeve, 114628

1шт.

21

114628

SLEEVE,Ball Type, 1/4" Tube

1/4 ball

2шт.

22

222-662

TUBE NUT,7/16"-24, 45 Degree Fl, Comp

NUT, 7/16-14 ball sleeve tube

2шт.

23

390307R11

PIPE ASSY, fuel return rear line, Includes: Ref. 6, 21 and 22

1шт.

24

115056

UNION, 1/4 OD tube ball sleeve

1шт.

25

61387D

CLIP, fuel return line

12шт.

26

253313R1

CLIP, tank to shutoff fuel line

3шт.

27

19986R1

TUBE NUT,9/16"-20

NUT, 9/16-20 hi-duty tube fitting

1шт.

28

369154R1

GASKET

sending unit

1шт.

29

390297R1

STRIP, backing plate

2шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fuel return line pipe, On crankcase front cover

1шт.

31

366460R1

CABLE CLIP

CLIP, fuel return line pipe, Upper, On crankcase front cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

32

265204R1

SLEEVE

3/8 OD flex tube, For tractors with airesearch turbocharger

1шт.

33

606819C1

CONNECTOR, ELEC

CONNECTOR, primary filter inlet, For tractors with airesearch turbocharger

1шт.

34

362123R1

CLIP

shut-off to filter line

1шт.

35

PLATE, fuel tank support, Refer to frame, sub-frame, bolster, rear covers and related parts listing, Section A

1шт.
