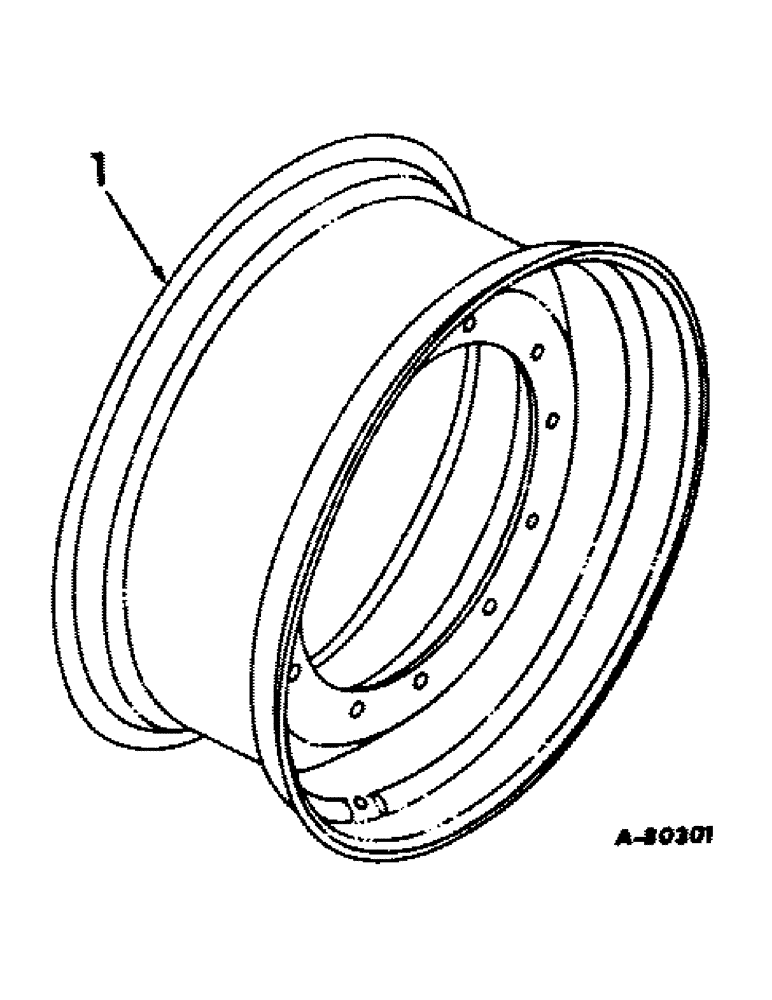

Запчасти Case IH 4100 (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT AND REAR WHEELS Wheels & Wheel Weights

1

392466R91

WHEEL ASSY, non reversible disc, DW16-26 rim for 18.4-26 tire

4шт.

1

392469R91

WHEEL ASSY, non reversible disc, DW20-26 rim for 18.00-16 or 23.1-26 tire

4шт.

1

392468R91

WHEEL ASSY, non reversible disc, DW16-30 rim for 18.4-30 tire

4шт.

1

394821R91

WHEEL ASSY, non reversible disc, DW16-34 rim for 18.4-34 tire

4шт.

84711H

NUT

wheel stud

48шт.

1

399365R1

WHEEL ASSY, non reversible disc, DWH25-26 rim for 28.1-26 tire

4шт.

All wheel assemblies listed are 12 bolt hole pattern and have a 16.625" bolt hole to bolt hole center line diameter. Also the large hole in the middle has a approximate diameter of 14.54".

1шт.
