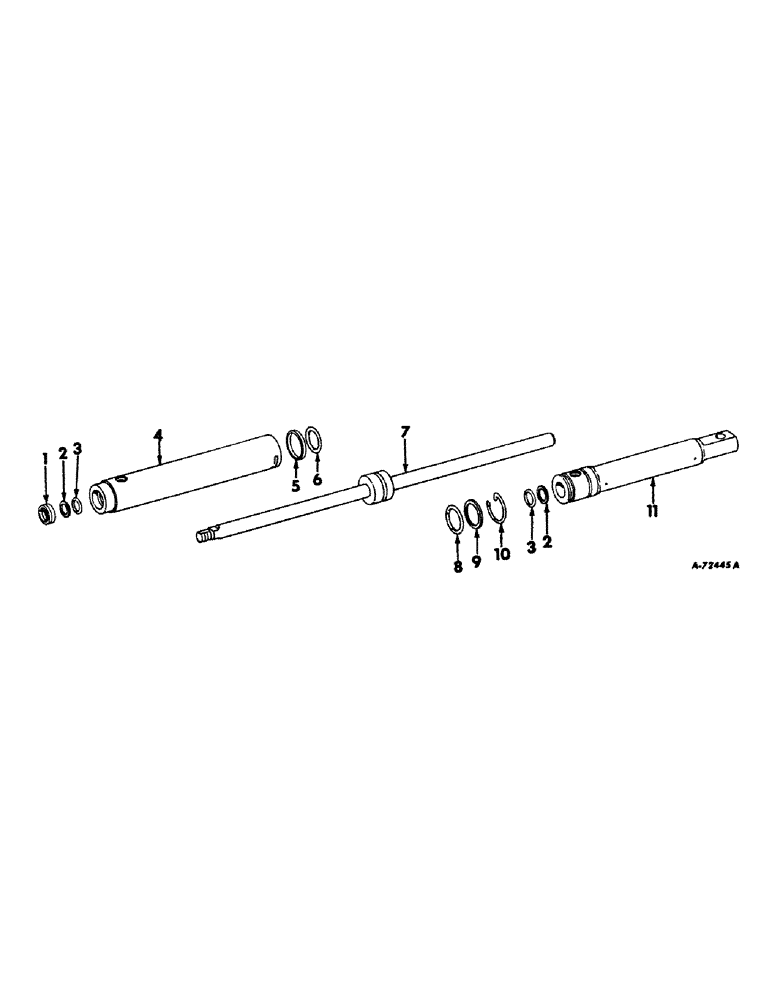

Запчасти Case IH 4100 (J-11) - STEERING MECHANISM, POWER STEERING CYLINDER Steering Mechanism

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering, will work for 380492R92

2шт.

1

378587R91

OIL SEAL

scraper oil

2шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back-up

4шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, cylinder retainer

2шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

4

380494R11

BODY ASSY, cylinder rear, Used w/cylinder, 380492R92, Serial no. 8040 and below

1шт.

4

395070R1

BODY ASSY, cylinder rear, Used w/cylinder 395068R91, Serial no. 8041 and above

1шт.

5

379959R1

RING,Square, 3.17mm Thk x 58mm ID

piston

2шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

7

380496R21

ROD

1шт.

8

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8, cylinder front head

2шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

9

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

telfon back-up

2шт.

Part of cylinder Service Kit, P/N 386695R91

1шт.

10

378740R1

CIRCLIP

RETAINER, cylinder end

2шт.

11

395069R2

HEAD ASSY, front

2шт.

386695R91

SEAL KIT

KIT, cylinder service, Consists of ref nos. 1, 2, 3, 5, 6, 8, and 9

1шт.
