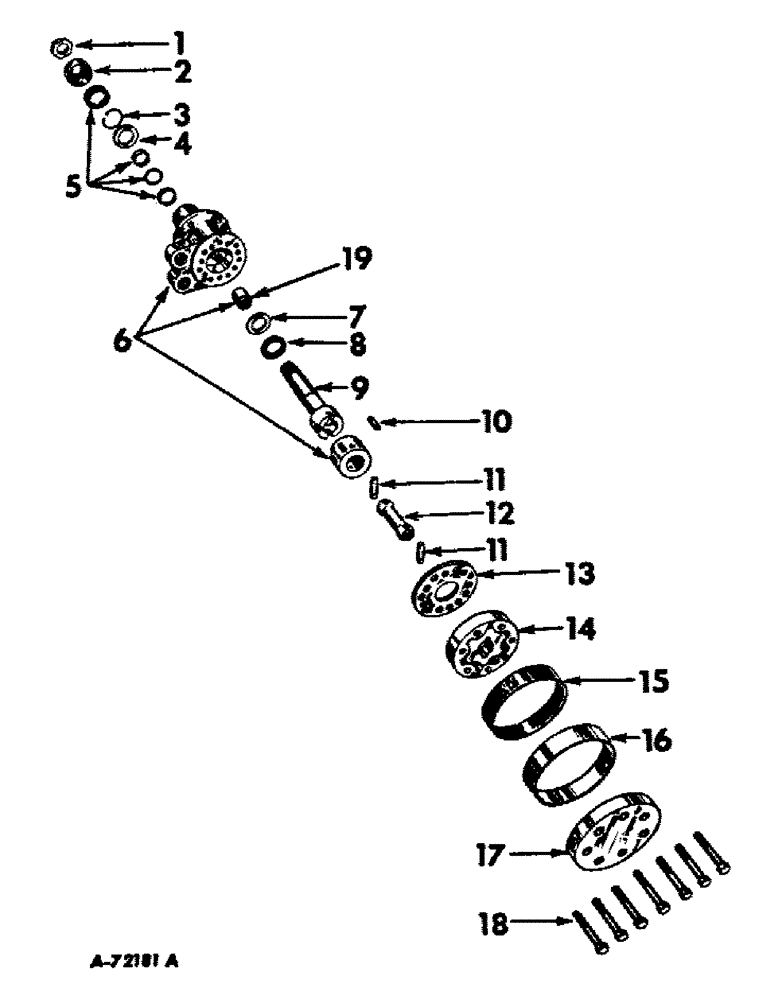

Запчасти Case IH 4100 (J-09) - STEERING MECHANISM, HYDROSTATIC POWER STEERING HAND PUMP Steering Mechanism

378578R95

HYDRAULIC STEERING

PUMP ASSY, power steering hand

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

2

382587R1

SEAL

dust, Not included in pump assy

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

4

379786R1

WASHER

pump shaft

1шт.

5

535122R91

SERVICE KIT

PACKAGE, hydrostatic steering hand pump service

1шт.

6

379694R91

BODY

PUMP BODY AND BEARING ASSEMBLY

1шт.

7

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

8

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

9

379784R1

SHAFT

coupling

1шт.

10

379700R1

PIN

pump spool

1шт.

11

379693R1

PIN

pump link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump

1шт.

14

379697R3

ROTOR

SET

1шт.

15

379781R1

BOOT

SEAL, rotor

1шт.

16

379696R1

RING

RETAINER, seal

1шт.

17

379698R1

COVER

pump end

1шт.

18

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

19

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

405785R91

PACKAGE, REPAIR

PACKAGE, spring and vane

1шт.
