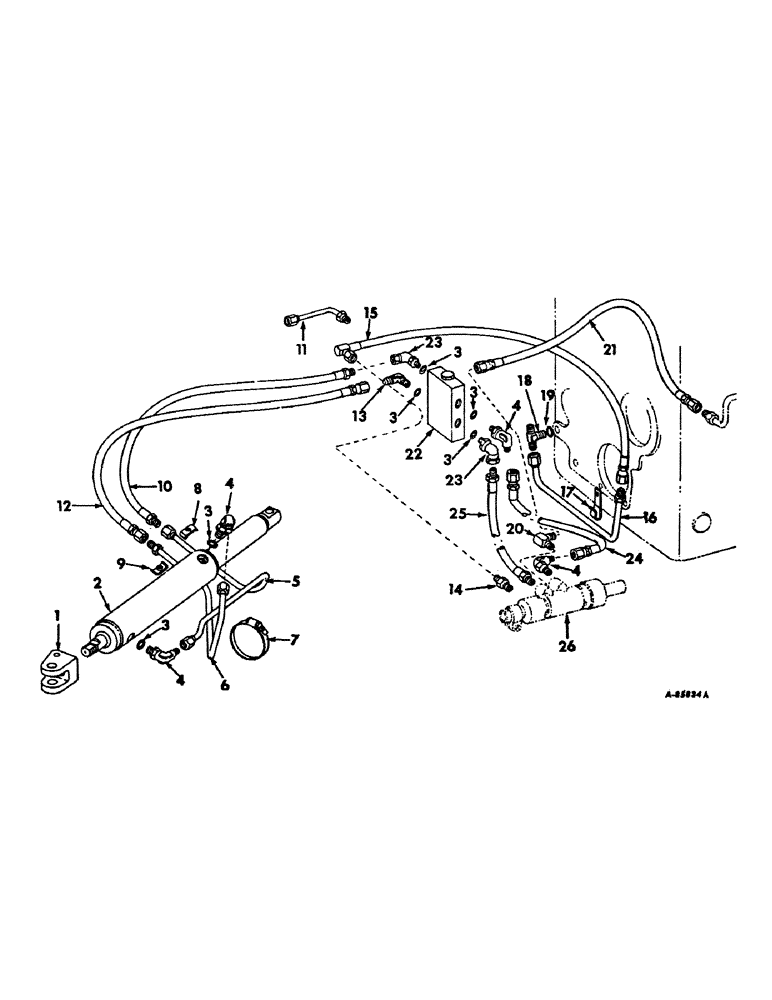

Запчасти Case IH 4100 (J-06) - STEERING MECHANISM, REAR STEERING CYLINDER AND CONNECTIONS Steering Mechanism

1

389052R1

CLEVIS COUPLING

CLEVIS, cylinder rod axle

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd rod clevis end

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 std-hd cyl front end

1шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 std-hd cyl front end

1шт.

2

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering rear, For components see list of parts under details of power steering cylinder listing, This section

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, steering cylinder elbow

6шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 degree hyd flared tube adj str thd 90 degree, steering cyl port

4шт.

5

394884R11

PIPE ASSY, steering cyl long, For service replacement on tractors with Serial no. 8577 and below also order hose assy, 394882R91 and pipe assy, 394883R91

1шт.

6

390696R11

PIPE ASSY, steering cyl short

1шт.

7

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP ASSY, steering cyl short

1шт.

7

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP ASSY, steering cyl short tube support

1шт.

8

381448R1

CLAMP

steering cyl tube retainer

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

9

384855R11

CLAMP

ASSY, steering cyl tubes

1шт.

10

393704R91

HOSE

ASSY, rear steering cylinder, Serial no. 8577 and below

1шт.

10

394882R91

HOSE ASSY.

HOSE ASSY, rear steering cylinder, Serial no. 8578 and above

1шт.

11

394883R11

PIPE ASSY, steering valve cyl rear port, For service replacement on tractors with Serial no. 8577 and below also order hose assy, 394882R91 and pipe assy, 394883R91

1шт.

12

393704R91

HOSE

ASSY, steering pressure, will work for 390605R91

1шт.

13

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

9/16-18 37 degree hyd flared tube 90 degree, steering valve to cyl front port

1шт.

14

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR, 3/4-16 37 degree hyd flared tube, drag link valve return port

1шт.

15

390694R91

HOSE ASSY.

HOSE ASSY, steering valve return

1шт.

16

390697R11

PIPE ASSY, steering valve return

1шт.

17

965694R1

CLIP, steering valve return tube support

1шт.

18

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

7/8-14 degree hyd flared adj str thd

1шт.

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 degree hyd flared tube, used with tee when independent PTO is installed in the field

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 degree hyd flared tube adj str thd 90 degree Tractors w/independent PTO

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

20

321808R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

3/4-16 37 degree hyd flared tube adj str thd 90 degree, steering valve inlet

1шт.

21

390649R1

HOSE ASSY, to power brake valve pipe

1шт.

22

673293R92

VALVE

steering check, Refer to steering check valve listing, This section

1шт.

102635

NUT,3/8"-16, G5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

23

405635R1

ELBOW, 9/16-18 37 degree hyd flared tube adj str thd 90 degree swivel

2шт.

24

391576R91

HOSE ASSY.

HOSE ASSY, check valve to cylinder female swivel

1шт.

25

405636R1

HOSE ASSY, check valve to cylinder male fixed

1шт.

26

VALVE ASSY, drag link, Refer to rear steering control linkage listing, This section

1шт.
