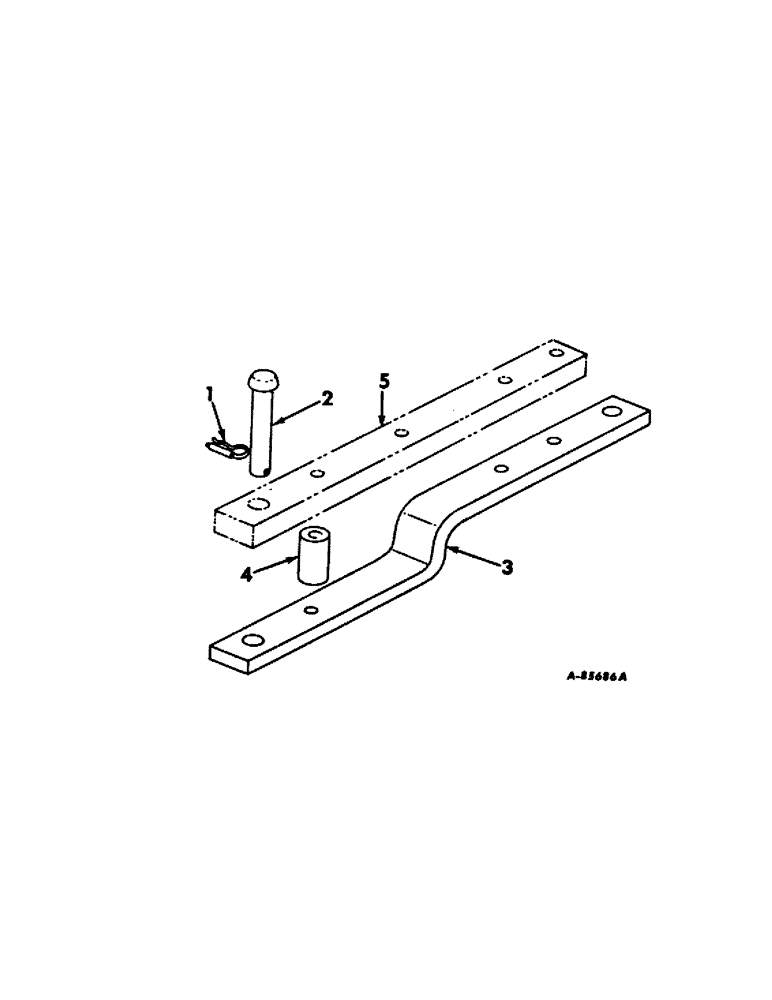

Запчасти Case IH 4100 (K-02[A]) - DRAWBARS AND HITCHES, HAMMERSTRAP Drawbars & Hitches

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

2

400300R1

CLEVIS PIN

PIN, drawbar clevis, Replaces 391871R1

1шт.

3

400412R1

DRAWBAR, hammerstrap, Replaces 390713R1

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 hex-hd cap

1шт.

4

270937R1

SPACER, hammerstrap drawbar

1шт.

400413R1

SPACER, hammerstrap pin

1шт.

5

DRAWBAR, swinging, Refer to drawbar listing, This section

1шт.
