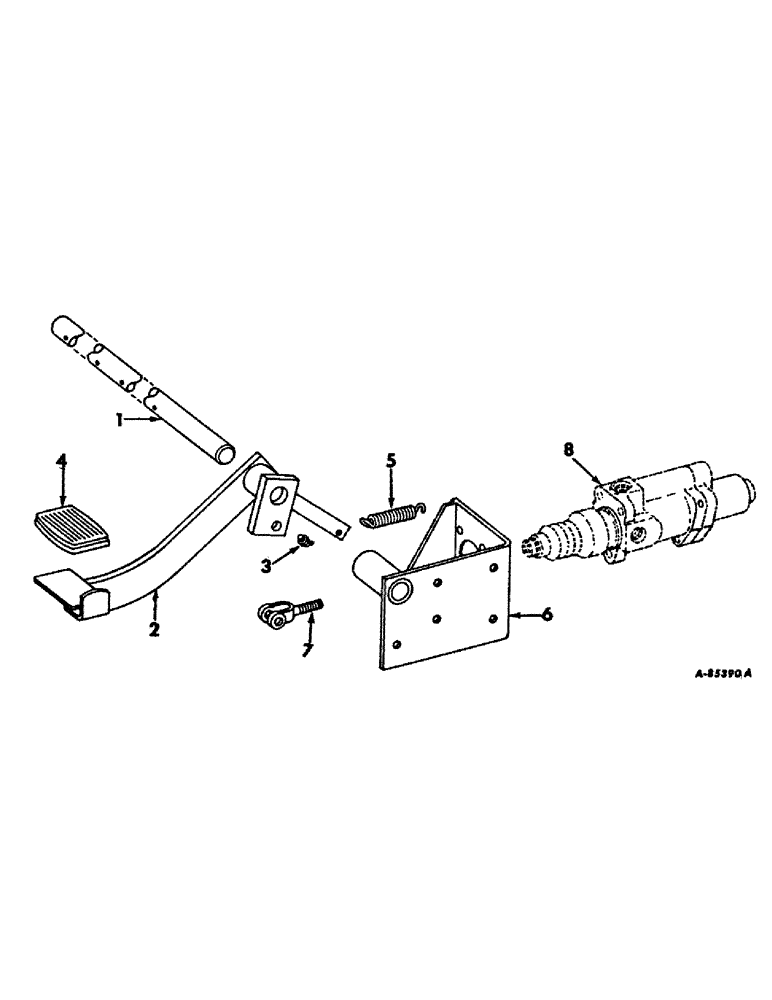

Запчасти Case IH 4100 (H-15) - CONTROLS, WHEEL BRAKE PEDAL AND CONNECTIONS Controls

1

390275R1

ROD, clutch and brake pedal

1шт.

19985R1

TUBE NUT,1/2"-20

PIN, 1/4 x 1-3/8 coiled spring

4шт.

2

390648R91

ARM ASSY, brake pedal

1шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 degree angle lub

1шт.

4

166880R1

PAD

brake pedal

1шт.

5

626206R1

SPRING

BRACKET ASSY, brake valve

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

3шт.

7

359930R1

CLEVIS

brake operating

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

138080

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

8

VALVE ASSY, power brake, Refer to power brake valve listing, Section F

1шт.
