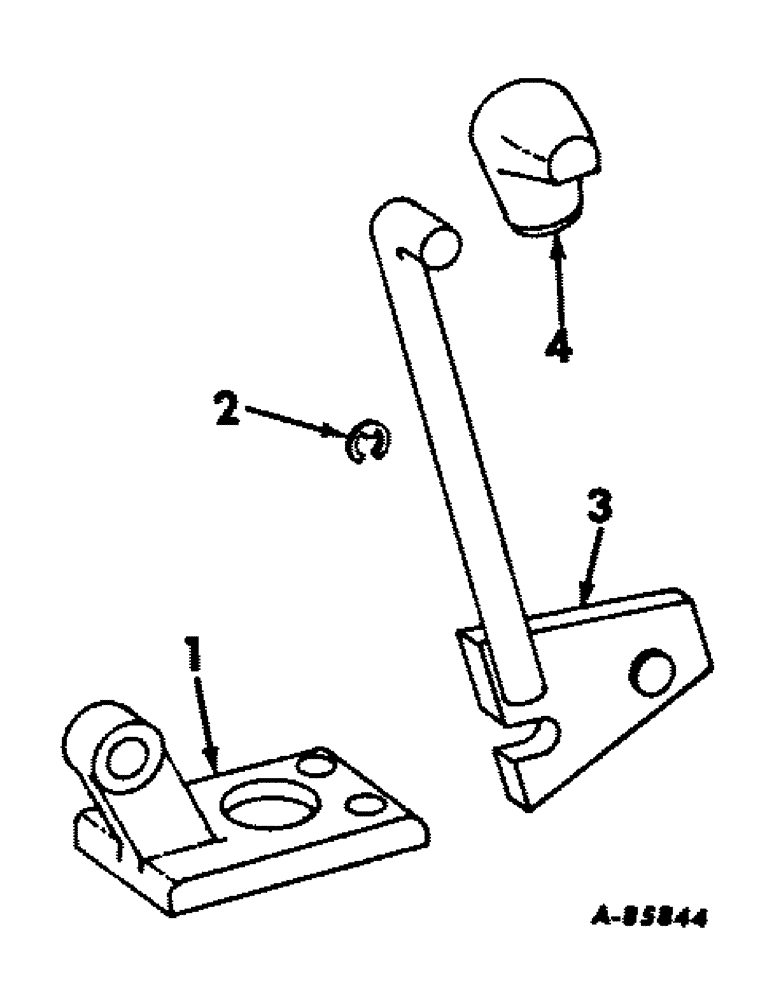

Запчасти Case IH 4100 (H-14) - CONTROLS, AUXILIARY VALVE HANDLE AND CONNECTIONS Controls

1

378029R1

BRACKET

auxiliary valve

1шт.

426367

SCREW, 5/16-18 x 3/4 hex-soc-hd cap

2шт.

108579

BUSHING,5/16"

5/16"

2шт.

J547M

PIN

1/2 x 1-7/16 std-hd

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

3

390248R91

HANDLE ASSY, RH auxiliary valve

1шт.

4

379022R2

KNOB

hyd valve control

1шт.
