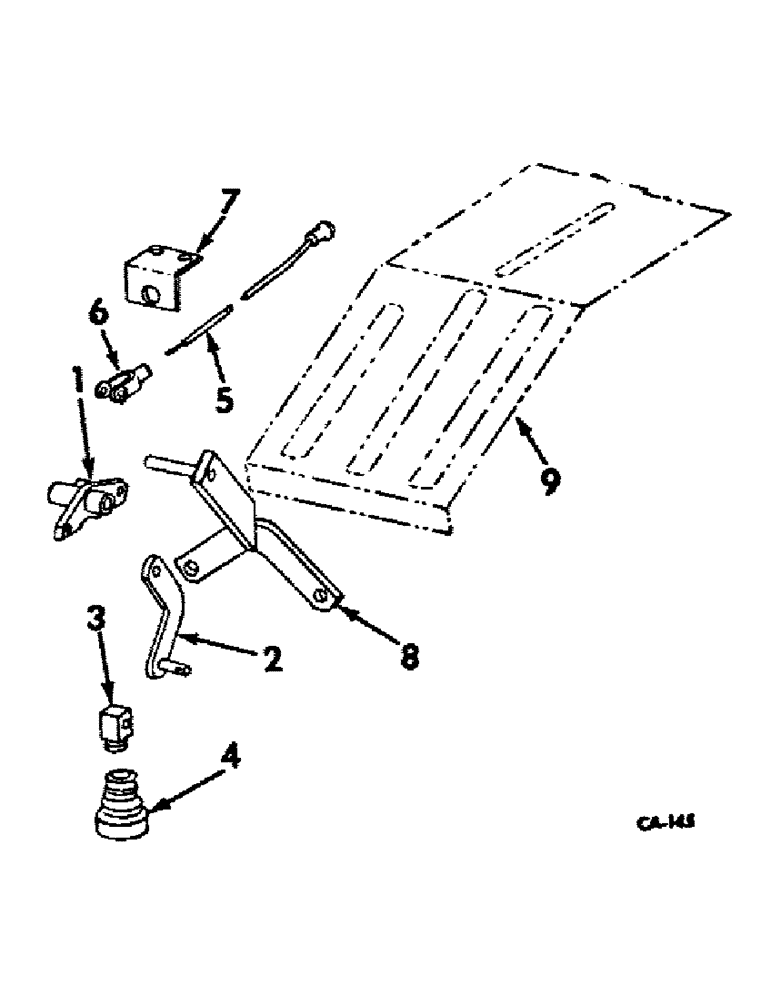

Запчасти Case IH 4100 (H-12) - CONTROLS, INDEPENDENT POWER TAKE-OFF CONTROLS Controls

ATTACHMENT, 1000 RPM independent PTO, 406792R91

1шт.

The following listing contain the remaining service items for attachment, 406792R91, independent PTO listing, Section B and independent PTO tubing and connections listing, Section F

1шт.

1

403941R1

LEVER ASSY, over-center

1шт.

190172R1

SPRING

extension

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

2

384192R11

LEVER

LINK ASSY, valve stem actuating

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

3

384194R2

NUT,3/8" - 16

valve adjustment

1шт.

4

393071R1

BOOT

control dust

1шт.

5

403951R1

CABLE PULLING GRIP

CABLE, control

1шт.

6

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 adj rod end

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

20791R1

CLEVIS PIN,1/4" x .906"

PIN, 1/4 x 29/32 C-Z rod end

1шт.

432-48

COTTER PIN,1/16" x 1/2"

JPIN, 1/16 x 1/2 cot.

1шт.

7

403952R1

ANGLE, cable bracket

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

2шт.

8

403916R1

BRACKET ASSY, linkage support

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

2шт.

102637

NUT,1/2"-13, G5

2шт.

9

PANEL, console top RH, refer to hood, radiator grille, steering support listing, Section A

1шт.
