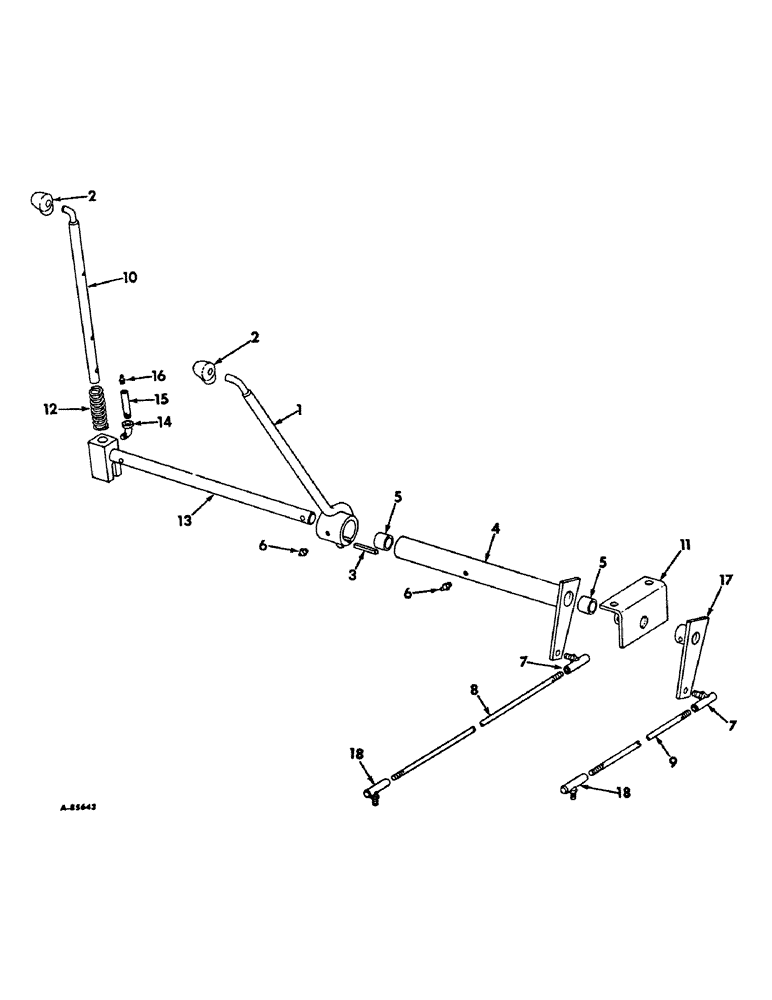

Запчасти Case IH 4100 (H-09) - CONTROLS, RANGE AND SPEED TRANSMISSION LEVERS AND CONNECTIONS Controls

1

390573R91

HANDLE ASSY, selective transmission control

1шт.

2

379022R2

KNOB

transmission shift handle

2шт.

3

Q55

KEY,3/8" Sq x 2", Par

3/8 x 2 sq parallel

1шт.

4

390576R91

ARM ASSY, selective transmission

1шт.

5

390579R1

BEARING, range transmission shaft

2шт.

6

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub

2шт.

7

390589R91

KNEE JOINT

JOINT, 1/2-20 ball

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

4шт.

8

390580R1

ROD, selective transmission operation

1шт.

9

390588R1

ROD, range transmission operating

1шт.

10

390581R1

ROD, range transmission shift handle

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

3шт.

11

390587R11

BRACKET ASSY, shifter shaft support

1шт.

12

390582R1

SPRING, range transmission rod

1шт.

13

390590R91

ROD ASSY, range transmission shift

1шт.

103348

WASHER,1" x 2" x .134"

1-1/6 x 2 plain

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

14

105422

ELBOW UNION

ELBOW, 1/8 90 degree street

1шт.

15

365720R1

PIPE

grease extension

1шт.

16

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 str lub

1шт.

17

390584R91

ARM ASSY, hi-low shifter

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

18

390589R91

KNEE JOINT

JOINT, 1/2-20 ball

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.
