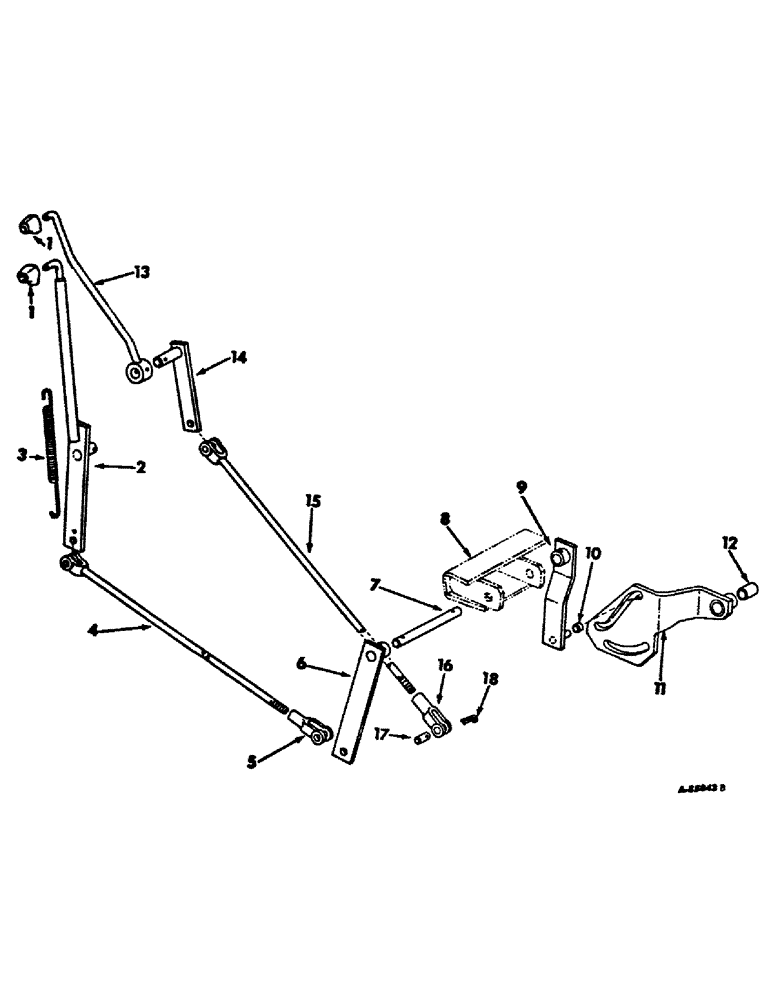

Запчасти Case IH 4100 (H-05) - CONTROLS, FRONT AND REAR STEERING CONTROLS Controls

1

379022R2

KNOB

steering hand lever

2шт.

2

390555R11

ROD ASSY, steering control

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

3

381395R1

SPRING

steering control rod

1шт.

4

390559R11

ROD ASSY, steering control linkage

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

5

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

4шт.

6

390561R91

ARM ASSY, steering control front

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

7

390564R1

PIN, steering control front pivot

1шт.

8

SUPPORT ASSY, platform front RH, Refer to frame, sub frame, bolster, rear covers, channels, supports and related parts listing Section A

1шт.

9

390567R91

ARM ASSY, steering control front inner, Serial No. 8069 and below

1шт.

9

395020R91

ARM

ASSY, steering control front inner, Serial No. 8070 and above

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

2шт.

10

380115R2

ROLLER

cam

1шт.

11

390570R21

CAM ASSY, steering control, Serial No. 8069 and below

1шт.

11

395023R91

CAM

ASSY, steering control, Serial No. 8070 and above

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/8 x .108

1шт.

12

390679R1

BUSHING

cam pivot

1шт.

13

390547R91

HANDLE ASSY, front wheel drive control

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

14

390550R11

PIN ASSY, front wheel drive control

1шт.

15

390553R11

ROD ASSY, front wheel drive control

1шт.

21853H

PIN, 1/2 x 1-1/2 rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

PIN, 1/8" x 1 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/6 x .095 plain

2шт.

16

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

17

384308R2

PIN,12.53mm OD x 28.45mm L

clevis

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

18

460047R1

CLIP, SPRING

PIN, quick attachable cot.

1шт.
