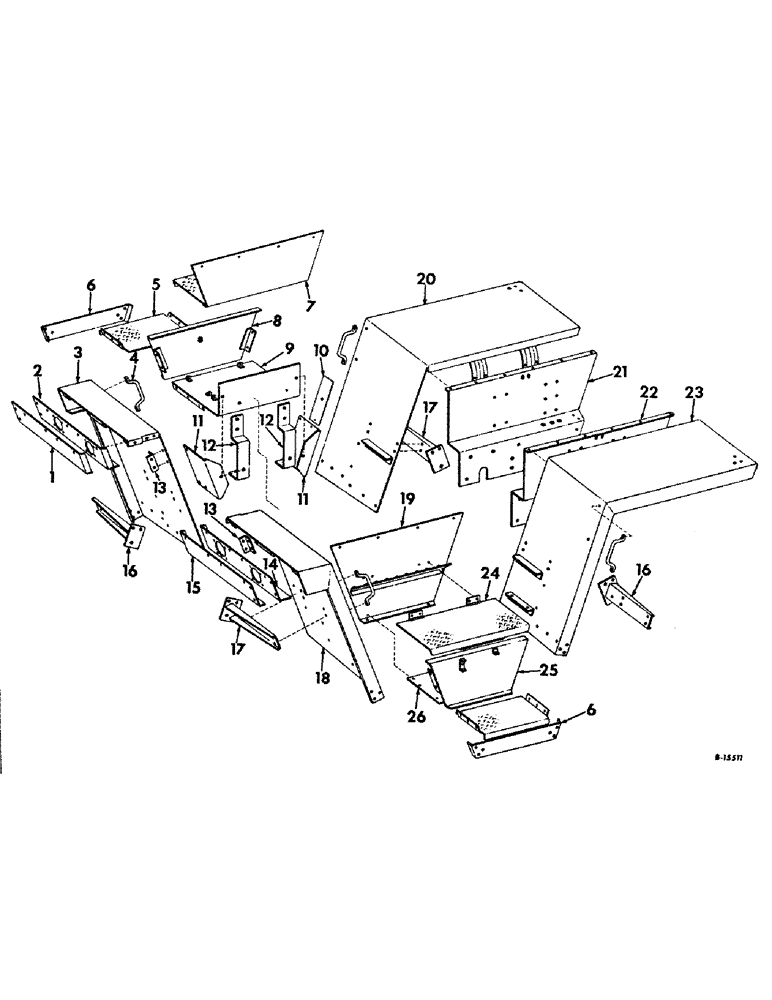

Запчасти Case IH 4100 (A-09) - CHASSIS, RADIATOR AND SHEET METAL, FENDERS, STEPS, SUPPORTS AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

COVER, front fender RH, Discontinued for service, Serial Range: -8000

1шт.

1

393713R1

COVER, front fender RH, Start Serial: 8001

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

front cover mounting

6шт.

2

PLATE, RH heat light mounting, Tractors with side head lights, Discontinued for service, Serial Range: -8000

1шт.

2

393715R1

PLATE, RH head light mounting, Tractors with side head lights, Start Serial: 8001

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light plate mounting

6шт.

3

393718R91

FENDER ASSY, RH front, Tractors, also order cover, 393713R1, Serial Range: -8000

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap w/conical washer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

20249R1

SCREW, 1/2-13 x 1 C-Z slt truss-hd mach

4шт.

390486R1

WASHER, conical

2шт.

4

390488R1

HANDLE, fender

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

8шт.

5

390411R91

STEP ASSY, lower

2шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

6

393711R1

PLATE, fender support

2шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

7

390469R91

RISER

STEP AND RISER ASSY, RH

1шт.

376787R1

WASHER

RETAINER, riser fastening screw

4шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, riser fastening

4шт.

8

390423R11

SHEET ASSY, lower RH riser

1шт.

389117R91

NUT

5/16-18 floating cage

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

390490R11

PLATE ASSY, battery support

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

390788R1

STRIP, battery box dust guard

1шт.

11

390489R1

SHEET, battery box front

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

12

390426R1

SUPPORT, battery box

2шт.

102637

NUT,1/2"-13, G5

4шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

4шт.

13

390498R1

ANGLE, front fender support upper

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap

1шт.

14

PLATE, LH head light mounting, Tractors with side head lights, Discontinued for service, Serial Range: -8000

1шт.

14

393714R1

PLATE, LH head light mounting, Tractors with side head lights, Start Serial: 8001

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

head light plate mounting

6шт.

15

COVER, front fender LH, Discontinued for service, Serial Range: -8000

1шт.

15

393712R1

COVER, front fender LH, Start Serial: 8001

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

front cover mounting

6шт.

16

390494R91

SUPPORT ASSY, fender right front and left rear

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

6шт.

17

390495R91

SUPPORT ASSY, fender left front and right rear

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

6шт.

18

393717R91

FENDER ASSY, LH front, For service replacement on tractors, Also order cover, 393712R1, Serial Range: -8000

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

20249R1

SCREW, 1/2-13 x 1 C-Z truss hd slt mach

4шт.

390486R1

WASHER, conical

2шт.

19

390414R11

SHEET ASSY, upper LH riser

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

390421R22

FENDER ASSY, RH rear

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

10шт.

20249R1

SCREW, 1/2-13 x 1 C-Z truss hd slt mach

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

21

390395R41

FENDER ASSY, rear side plate RH

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

225861

NUT,5/8"-18, G8

5/8-18 C-Z hex., Type 4

1шт.

280954

NUT,3/4"-10, G5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

7шт.

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

5/8-18 x 1-1/2 C-Z hex-hd cap

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

390394R31

FENDER ASSY, rear side plate LH

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

225861

NUT,5/8"-18, G8

5/8-18 C-Z hex., Type 4

1шт.

280954

NUT,3/4"-10, G5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

7шт.

271744

SEAL,Hex, 5/8"-18 x 1 1/2", G5

5/8-18 x 1-1/2 C-Z hex-hd cap

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

390420R22

FENDER ASSY, LH rear

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

10шт.

20249R1

SCREW, 1/2-13 x 1 C-Z truss hd slt mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

24

390415R91

STEP ASSY, upper LH

1шт.

180074

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

SCREW, 5/16-18 x 9/16 C-Z hex-hd cap

4шт.

25

390422R11

SHEET ASSY, lower LH riser

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

26

390419R1

SHEET, tool box bottom plate

1шт.

180117

SCREW, 3/8-16 x 9/16 C-Z hex-hd cap

6шт.
