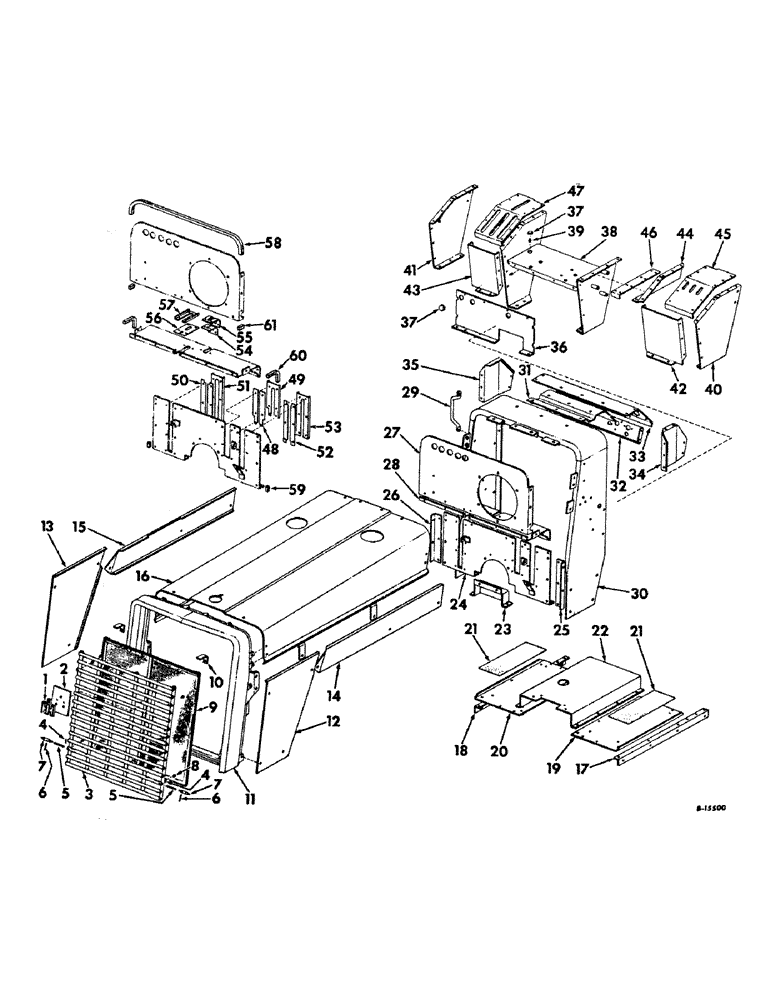

Запчасти Case IH 4100 (A-06) - CHASSIS, RADIATOR & SHEET METAL, HOOD, GRILLE, STEERING SUPPORT, FLOOR PLATES, CONSOLE & INST. PANEL Chassis, Radiator & Sheet Metal

1

2751848R1

PRODUCT GRAPHIC

IH emblem

1шт.

385128R1

SCREW,Sl Rnd Hd, #10 - 16 x 1/2"

10-16 x 1/2 thread cutting

2шт.

2

390695R1

PLATE, IH emblem mounting

1шт.

109084

NUT,1/4"-20, G5

3шт.

113995

BRACKET

1/4 x 1-1/4 slt-f-hd mach

3шт.

38352010

WASHER, 1/4 light lock

3шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

3

390232R91

GRILLE ASSY, radiator, Composed of

1шт.

390239R1

BUMPER

4шт.

390233R91

GRILLE (NSS)

1шт.

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

2шт.

20989R1

PIN,1/4" x 2 1/4", Coiled

2шт.

384124R2

PIN

2шт.

390238R1

SPRING

2шт.

4

19378/R1

PIN, 1/8 x 7/8 C-Z hv coiled spring

2шт.

5

390238R1

SPRING, grille latch

2шт.

6

20989R1

PIN,1/4" x 2 1/4", Coiled

2шт.

7

384124R2

PIN, grille latch

2шт.

8

390239R1

BUMPER, radiator screen

4шт.

9

390243R11

SCREEN ASSY, radiator

1шт.

10

390242R1

SPRING, radiator grille retaining

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

390240R1

FRAME, grille

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

3шт.

12

390519R1

PANEL, radiator support LH

1шт.

13

390520R1

PANEL, radiator support RH

1шт.

14

390517R1

PANEL, hood side LH

1шт.

15

390518R1

PANEL, hood side RH

1шт.

16

390515R11

HOOD ASSY

1шт.

120376

NUT,5/16"-18, G5

8шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

26шт.

17

390481R11

ANGLE ASSY, riser mounting bracket LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

3шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

5шт.

18

390482R11

ANGLE ASSY, riser mounting bracket RH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap

4шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

2шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

6шт.

19

390432R11

PLATFORM ASSY, LH

1шт.

20

390433R11

PLATFORM ASSY, RH

1шт.

21

390487R1

SURFACING, platform non-slip

2шт.

22

390435R1

COVER, center platform

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

390523R1

COVER, lower center

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 hex. washer hd tap

12шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

24

393996R11

COVER ASSY, pedal

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap, tractors without cab

4шт.

157732

SCREW, 5/16-18 x 3/4 cr-rec-truss-hd mach, tractors with cab

4шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

5шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

5шт.

25

393828R1

ANGLE, pedal cover LH

1шт.

26

393829R1

ANGLE, pedal cover RH

1шт.

27

390521R11

BAFFLE ASSY, upper heat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

28

392897R11

BAFFLE ASSY, lower heat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.

157716

SCREW, 1/4-20 x 1/2 slt-truss-hd mach

2шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

5шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

5шт.

29

390488R1

HANDLE, grab, Used only on tractors w/o cab

1шт.

102635

NUT,3/8"-16, G5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

30

390504R91

SUPPORT ASSY, steering

1шт.

102635

NUT,3/8"-16, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

102637

NUT,1/2"-13, G5

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8 x 1-1/4 C-Z sq-nk crg

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

31

390503R21

BRACKET ASSY, steering support

1шт.

32

390502R2

PANEL, switch

1шт.

28407K

WASHER

switch panel

2шт.

33

390551R2

PANEL, instrument

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

instrument panel

3шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

11шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

11шт.

34

390500R1

SIDE, instrument panel LH

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

2шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

3шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

5шт.

35

390501R2

SIDE, instrument panel RH

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap

2шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

3шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

5шт.

36

390473R1

COVER, seat support front

1шт.

102637

NUT,1/2"-13, G5

6шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

6шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

6шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap

4шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

12шт.

37

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. button

4шт.

38

392993R91

SUPPORT ASSY, console and seat

1шт.

39

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub

2шт.

40

390471R1

PANEL, console LH side

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

3шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd

3шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer, tractors without cab

2шт.

157732

SCREW, 5/16-18 x 3/4 cr-rec-truss-hd mach, tractors with cab

2шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

3шт.

41

390472R11

PANEL ASSY, console RH side

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

3шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd

3шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer, tractors without cab

2шт.

157732

SCREW, 5/16-18 x 3/4 cr-rec-truss-hd mach, tractors with cab

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

3шт.

42

390478R1

PANEL, front LH console

1шт.

43

390484R1

PANEL, front RH side console

1шт.

44

390477R1

PANEL, console LH support

1шт.

45

390479R1

PANEL, top LH console

1шт.

45

403237R1

PANEL, top LH console, tractors with three point hitch

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

12шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

12шт.

46

390474R1

COVER, panel LH console

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

4шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

4шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 C-Z ext-tooth lock

8шт.

47

390483R91

PANEL ASSY, top RH console

1шт.

47

403962R1

PANEL ASSY, top RH console, tractors w/independent PTO

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

6шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

6шт.

138479

PLUG

WASHER, no. 10 C-Z ext-tooth lock

12шт.

48

392818R1

SEAL, park brake pedal

2шт.

49

392819R1

RETAINER, park brake pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

6шт.

50

392820R1

SEAL, brake pedal

2шт.

51

392821R1

RETAINER, brake pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

8шт.

52

392822R1

SEAL, clutch pedal

2шт.

53

392823R1

RETAINER, clutch pedal seal

1шт.

390475R1

SCREW,Hex Wshr Hd, #10 - 32 x 1/2"

10-32 x 1/2 C-Z hex. washer hd tap.

6шт.

54

392824R1

SEAL, brake release lever

1шт.

55

392825R1

RETAINER, brake release lever seal

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap.

4шт.

56

392826R1

SEAL, governor rod and steering hose

1шт.

57

392827R1

RETAINER, governor rod and steering hose

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 hex. washer hd tap.

4шт.

58

394791R1

STRIP

GASKET, upper heat baffle sealing

1шт.

59

394792R1

GASKET, lower heat baffle front sealing

2шт.

60

394790R1

GASKET, lower heat baffle rear sealing

2шт.

61

394789R1

GASKET, pedal cover sealing

2шт.
