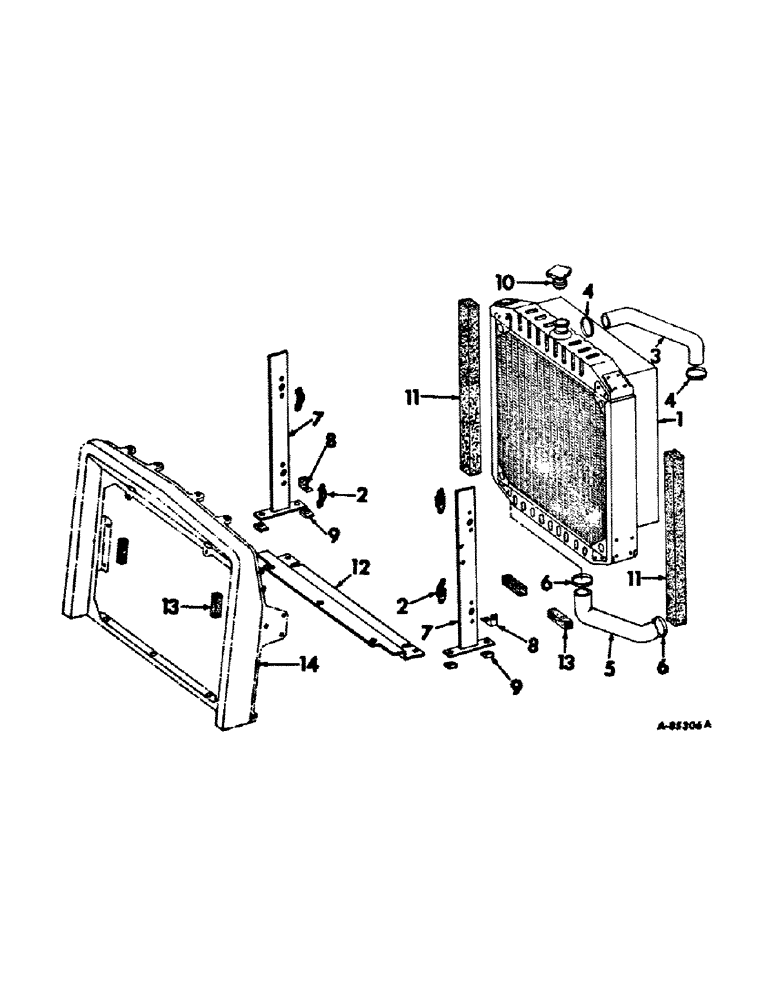

Запчасти Case IH 4100 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR, CONNECTIONS AND SUPPORTS Chassis, Radiator & Sheet Metal

1

390221R91

RADIATOR ASSY, less filler cap

1шт.

2

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

8шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

3

390222R1

RADIATOR HOSE,2.50" ID x 15.50", SAE 20R4 CLASS R, GRADE 1A

Inlet 2.50" ID x 15.50", SAE 20R4 CLASS R, GRADE 1A

1шт.

4

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP ASSY, radiator inlet hose

2шт.

5

390226R1

RADIATOR HOSE,3.00" ID x 13.50", SAE 20R2 CLASS R, GRADE 1A,SAE 20R4, GRADE 1

Outlet 3.00" ID x 13.50", SAE 20R2 CLASS R, GRADE 1A,SAE 20R4, GRADE 1

1шт.

6

274089R91

CLAMP

ASSY, radiator outlet hose

2шт.

7

390227R91

SUPPORT ASSY, radiator

2шт.

8

390230R1

CLIP, radiator support panel mounting

2шт.

102637

NUT,1/2"-13, G5

4шт.

NLS

NO LONGER SERVICED

5/8-11 x 3/4 hex-hd cap

4шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

9

51693D

BAR

WASHER, bevel channel

4шт.

10

393229R91

CAP

ASSY, radiator pressure

1шт.

11

390231R1

GASKET, radiator side baffle

2шт.

12

390241R1

BAFFLE, lower radiator air

1шт.

13

394815R1

GASKET, grille and radiator sealing

4шт.

14

FRAME, grille, Refer to hood, radiator grille and steering supports listing, this section

1шт.
