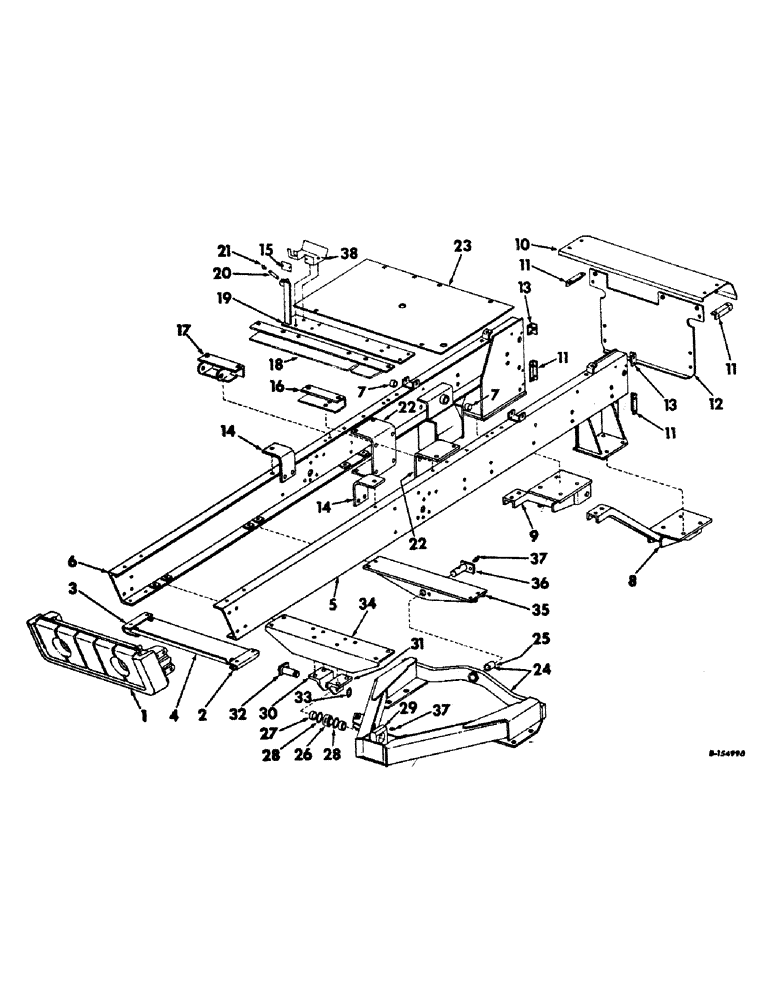

Запчасти Case IH 4100 (A-03) - CHASSIS,RADIATOR & SHEET METAL,FRAME,SUB FRAME,BOLSTER,REAR COVERS CHANNELS,SUPPORTS & RELATED PARTS Chassis, Radiator & Sheet Metal

1

390213R1

BOLSTER

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 -11 x 1-1/4 hex-hd cap

8шт.

2

390203R1

MOLDING, frame front LH

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 x 7/8 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

3

390204R1

MOLDING, frame front RH

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

4

390223R11

BAFFLE ASSY, radiator lower air

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

4шт.

5

393705R32

FRAME ASSY, LH

1шт.

137580H1

WASHER, bevel

12шт.

398964R2

BAR, bolt reinforcement, For service on 393705R11 and 393706R11

1шт.

6

393706R42

FRAME ASSY, RH

1шт.

137580H1

WASHER, bevel

12шт.

398964R2

BAR, bolt reinforcement, For service on 393705R11 and 393706R11

1шт.

7

390192R1

BUSHING

rear pivot shaft

2шт.

8

390206R11

CHANNEL ASSY, axle brace LH

1шт.

225861

NUT,5/8"-18, G8

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

20859R1

BOLT,5/8" x 2 3/4", Gr 8

SCREW, 5/8-16 x 2-3/4 hex-hd cap type 4

2шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

4шт.

9

390207R11

CHANNEL ASSY, axle brace RH

1шт.

225861

NUT,5/8"-18, G8

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW, 5/8-18 x 1-1/2 hex-hd cap, Fine Thread

2шт.

10

393707R3

COVER, rear top

1шт.

10

393710R1

COVER, rear top, tractors w/hydraulic drawbar

1шт.

10

403181R2

COVER

rear top, tractors w/three point hitch

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

7шт.

432564

HOLE PLUG BUTTON,1 3/4"

PLUG, 1-3/4 C-Z button

2шт.

11

390218R11

BRACKET ASSY, rear cover

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

8шт.

12

390215R91

COVER ASSY, rear lower, tractors w/o hydraulic drawbar

1шт.

12

390737R11

COVER ASSY, rear lower, tractors w/hydraulic drawbar

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

6шт.

12

403953R1

COVER ASSY, rear lower, tractors w/independent PTO

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/conical washer

8шт.

120376

NUT,5/16"-18, G5

2шт.

13

390219R11

BRACKET ASSY, rear lower cover

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

14

390211R1

BRACKET, clutch housing mounting

2шт.

225861

NUT,5/8"-18, G8

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4 hex-hd cap

4шт.

20859R1

BOLT,5/8" x 2 3/4", Gr 8

SCREW, 5/8-16 x 2-3/4 hex-hd cap type 4

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

4шт.

15

393166R1

COVER, baffle lower air

1шт.

390476R1

SCREW,Hex Wshr Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z hex. washer hd tap

2шт.

16

390430R21

SUPPORT ASSY, platform front LH

1шт.

102637

NUT,1/2"-13, G5

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

2шт.

51693D

BAR

WASHER, bevel

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

390431R21

SUPPORT ASSY, platform front RH

1шт.

102637

NUT,1/2"-13, G5

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

2шт.

51693D

BAR

WASHER, bevel

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

390429R21

SUPPORT ASSY, platform rear

1шт.

102637

NUT,1/2"-13, G5

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

2шт.

51693D

BAR

WASHER, bevel

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

390436R11

PLATE ASSY, seat support mounting, For service replacement on tractors, also order extension pipe, 365720R1 and fitting, Q3628, Serial Range: -8000

1шт.

102637

NUT,1/2"-13, G5

4шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

4шт.

51693D

BAR

WASHER, bevel

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

365720R1

PIPE

grease extension

1шт.

21

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 str lub

1шт.

22

390212R1

BRACKET, transfer case mounting

2шт.

225861

NUT,5/8"-18, G8

8шт.

114498

JAM NUT,Jam, 5/8"-18, G5

8шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

SCREW, 5/8-11 x 1-1/2 hex-hd cap type 4

8шт.

20859R1

BOLT,5/8" x 2 3/4", Gr 8

SCREW, 5/8-18 x 2-3/4 hex-hd cap type 4

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

16шт.

23

390225R1

PLATE, fuel tank support

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

102637

NUT,1/2"-13, G5

4шт.

51693D

BAR

WASHER, bevel

4шт.

24

394335R92

SUB-FRAME ASSY, For service replacement on tractors, Also order angle, 3903347R2 and angle, 390335R2, Serial Range: -8000

1шт.

25

390787R1

BUSHING

rear pivot

1шт.

26

390157R91

BUSHING

BEARING, frame front

1шт.

27

390162R1

BUSHING

COLLAR, front pivot

2шт.

28

390158R1

RING

front bearing retaining

2шт.

29

390143R2

CARRIER

front frame bearing

1шт.

30

390335R2

ANGLE

front pivot RH

1шт.

225861

NUT,5/8"-18, G8

2шт.

271585

WASHER,Hex, 5/8" - 18 x 1.75", Gr 5

SCREW, 5/8-18 x 1-3/4 hex-hd cap

1шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

5/8-18 x 2-1/2 hex-hd cap

1шт.

31

390334R2

ANGLE

front pivot LH

1шт.

225861

NUT,5/8"-18, G8

2шт.

271585

WASHER,Hex, 5/8" - 18 x 1.75", Gr 5

SCREW, 5/8-18 x 1-3/4 hex-hd cap

1шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

5/8-18 x 2-1/2 hex-hd cap

1шт.

32

390160R11

SHAFT

ASSY, front pivot

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, 3/8-24 x 3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

390163R1

SNAP RING,#150, 1.419", Ext Spiral

RING, front pivot pin retaining

1шт.

34

390224R1

SUPPORT, frame front

1шт.

225861

NUT,5/8"-18, G8

6шт.

114498

JAM NUT,Jam, 5/8"-18, G5

4шт.

271587

WASHER

SCREW, 5/8-18 x 2 hex-hd cap, In engine mounting

2шт.

665090R1

BOLT,5/8" x 3 1/4", Gr 8

SCREW, 5/8-18 x 3-1/4 type 4 hex-hd cap

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

8шт.

35

400838R1

SUPPORT ASSY, rear

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

225861

NUT,5/8"-18, G8

4шт.

114498

JAM NUT,Jam, 5/8"-18, G5

4шт.

665090R1

BOLT,5/8" x 3 1/4", Gr 8

SCREW, 5/8-18 x 3-1/4 type 4 hex-hd cap

4шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 hardened

8шт.

36

390164R11

SHAFT

ASSY, rear pivot

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, 1/2-20 x 3/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

2шт.

38

393165R1

BAFFLE, console RH lower air

1шт.

38

403961R1

BAFFLE, console RH lower air, tractors w/independent PTO

1шт.
