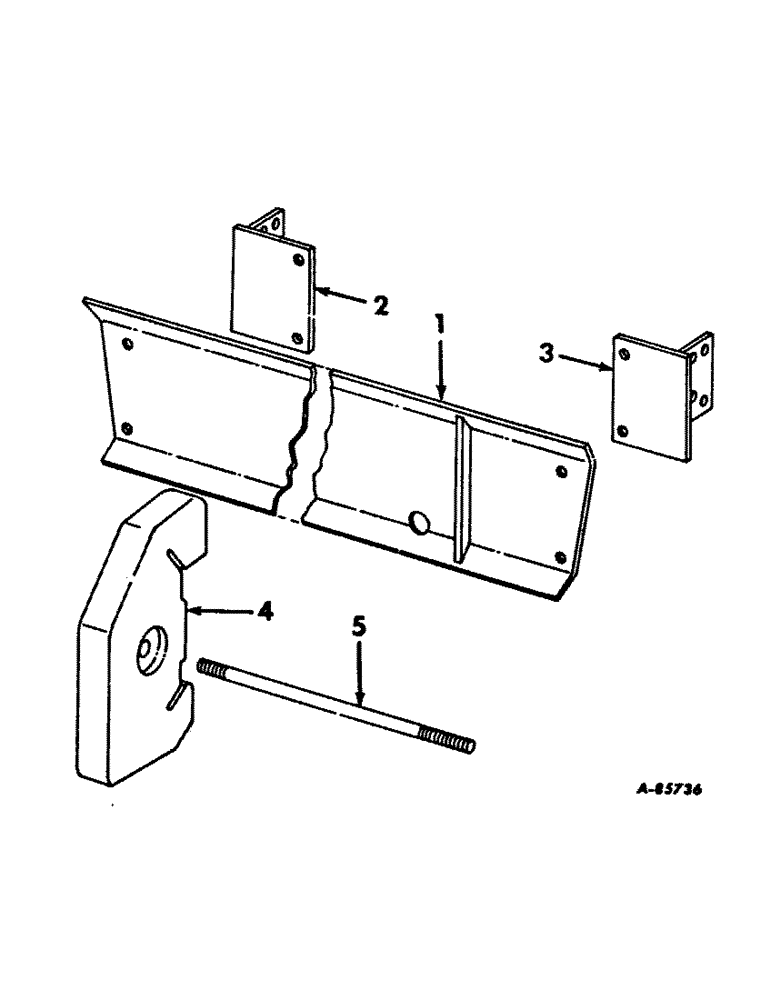

Запчасти Case IH 4100 (M-05) - SEAT AND MISCELLANEOUS, REAR END WEIGHTS AND MOUNTING PLATE (10) - OPERATORS PLATFORM

390780R91

ATTACHMENT, rear end weight

1шт.

Consists of ref. nos. 4 and 5 for tractors equipped with ref. nos. 1, 2, and 3

1шт.

1

390779R11

PLATE ASSY, rear weight mounting

1шт.

280954

NUT,3/4"-10, G5

4шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

2

390781R91

BRACKET ASSY, rear end weight LH

1шт.

280954

NUT,3/4"-10, G5

25шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

3

390782R91

BRACKET ASSY, rear end weight RH

1шт.

280954

NUT,3/4"-10, G5

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

4

381216R1

WEIGHT

rear end, approx weight 80 lb. each

8шт.

5

381217R1

SHAFT, rear end weight cross tie

1шт.

427691

NUT

7/8-9 C-Z square

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

393118R93

PACKAGE, product graphics, Consists of

1шт.

2753240R1

PRODUCT GRAPHIC, transporting instructions (NSS)

1шт.

2751893R1

PRODUCT GRAPHIC

alternator-generator (NSS)

1шт.

2753009R1

PRODUCT GRAPHIC SHIFTING INSTRUCTIONS (NSS)

1шт.

2753008R1

PRODUCT GRAPHIC, gear shift instuctions (NSS)

1шт.

2752986R1

PRODUCT GRAPHIC, 4100 name plate (NSS)

1шт.

2751019R1

DECAL

PRODUCT GRAPHIC, seat adjustment (NSS)

1шт.

2753062R1

PRODUCT GRAPHIC, primary fuel filter instructions-canister type (NSS)

1шт.

2753064R1

PRODUCT GRAPHIC, final fuel filter instructions canister type (NSS)

1шт.

2752255R2

PRODUCT GRAPHIC, hyd filter instructions (NSS)

1шт.

2751805R1

DECAL

PRODUCT GRAPHIC DRY AIR CLEANER (NSS)

1шт.

2752020R1

PRODUCT GRAPHIC

IH

1шт.

2752304R1

PRODUCT GRAPHIC, International

2шт.

2750839R1

DECAL

PRODUCT GRAPHIC, lighting switch (NSS)

1шт.

2753496R1

PRODUCT GRAPHIC, range trans.

1шт.

2753115R1

DECAL

PRODUCT GRAPHIC, side headlight switch (NSS)

1шт.

2751848R1

PRODUCT GRAPHIC

IH emblem

1шт.

2752020R1

PRODUCT GRAPHIC

IH

1шт.

2753008R1

PRODUCT GRAPHIC, selective trans. shift

1шт.

2753496R1

PRODUCT GRAPHIC, range trans. and steering shaft

1шт.

2753009R1

PRODUCT GRAPHIC, 4-wheel drive shaft

1шт.

401418R91

PACKAGE, turbocharger conversion, Consists of

1шт.

400445R1

HOSE

1шт.

613626C91

CLAMP

1шт.

401419R1

PAD

1шт.

403996R1

SUPPORT

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW

2шт.

650526R1

CLAMP

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT

1шт.

102637

NUT,1/2"-13, G5

1шт.
