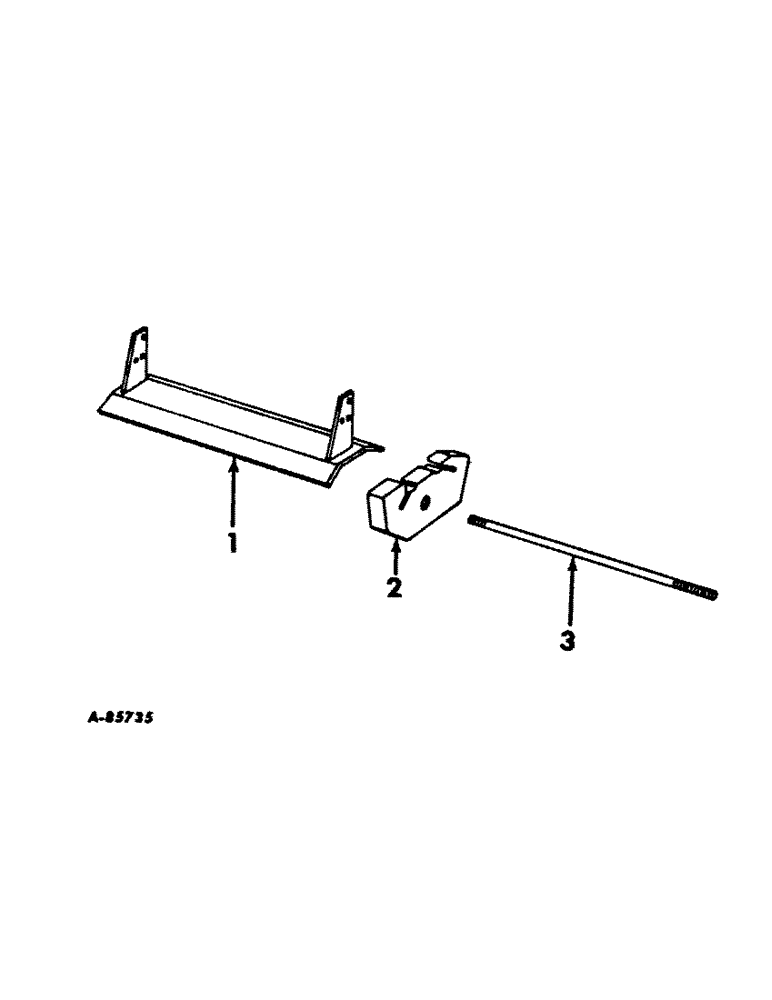

Запчасти Case IH 4100 (M-04) - SEAT AND MISCELLANEOUS, FRONT END WEIGHTS AND MOUNTING PLATE (10) - OPERATORS PLATFORM

390767R91

ATTACHMENT, front end weight

1шт.

For tractors equipped with plate, 390768R11

1шт.

1

390768R11

PLATE ASSY, front weight mounting

1шт.

271720

SNAP RING,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

6шт.

102639

NUT,5/8"-11, G5

1шт.

2

381216R1

WEIGHT

front end, approx weight 80 lb. each

13шт.

3

390770R1

SHAFT

front weight cross tie

1шт.

427691

NUT

7/8-9 C-Z sq

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

390786R92

ATTACHMENT, rear side mounting weight

1шт.
