(M-04[A]) - SEATS AND MISCELLANEOUS, REAR SIDE MOUNTED WEIGHTS

Запчасти Case IH 4100 (M-04[A]) - SEATS AND MISCELLANEOUS, REAR SIDE MOUNTED WEIGHTS (10) - OPERATORS PLATFORM

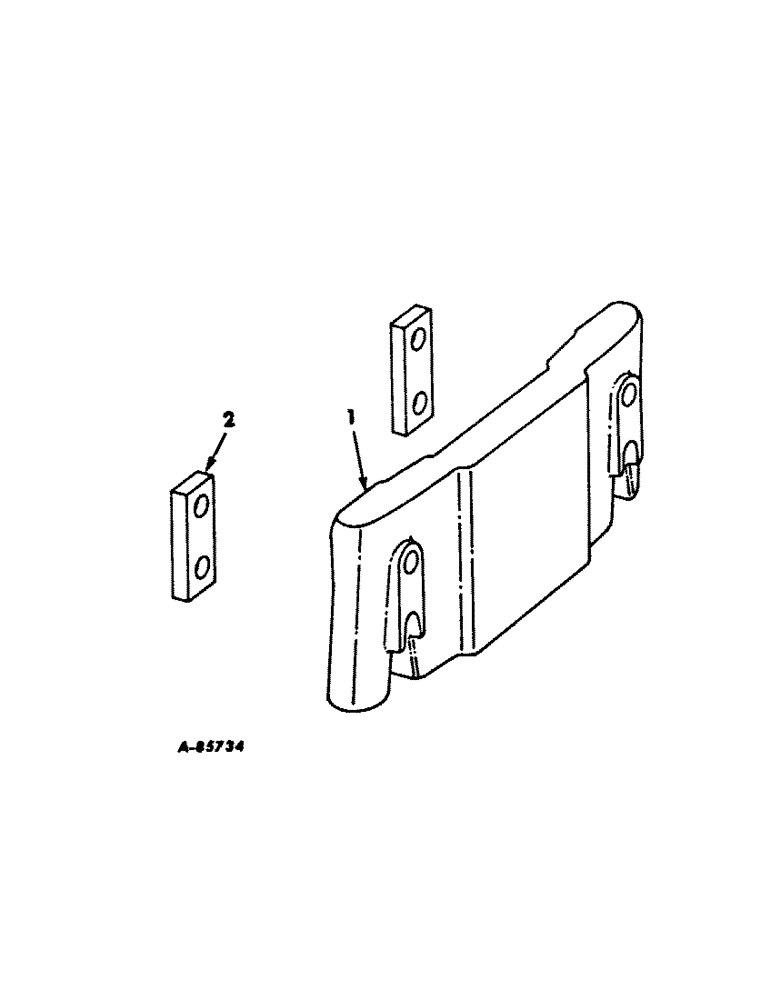

Схема запчастей Case IH 4100 - (M-04[A]) - SEATS AND MISCELLANEOUS, REAR SIDE MOUNTED WEIGHTS (10) - OPERATORS PLATFORM
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

371202R2

WEIGHT, side mounted rear

2шт.

280954

NUT,3/4"-10, G5

4шт.

271782

CASE,Hex, 3/4" - 10 x 4 3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap

8шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134 C-Z

8шт.

2

390785R1

SPACER, side mounted rear weight

4шт.

Выбрано товаров: 5
