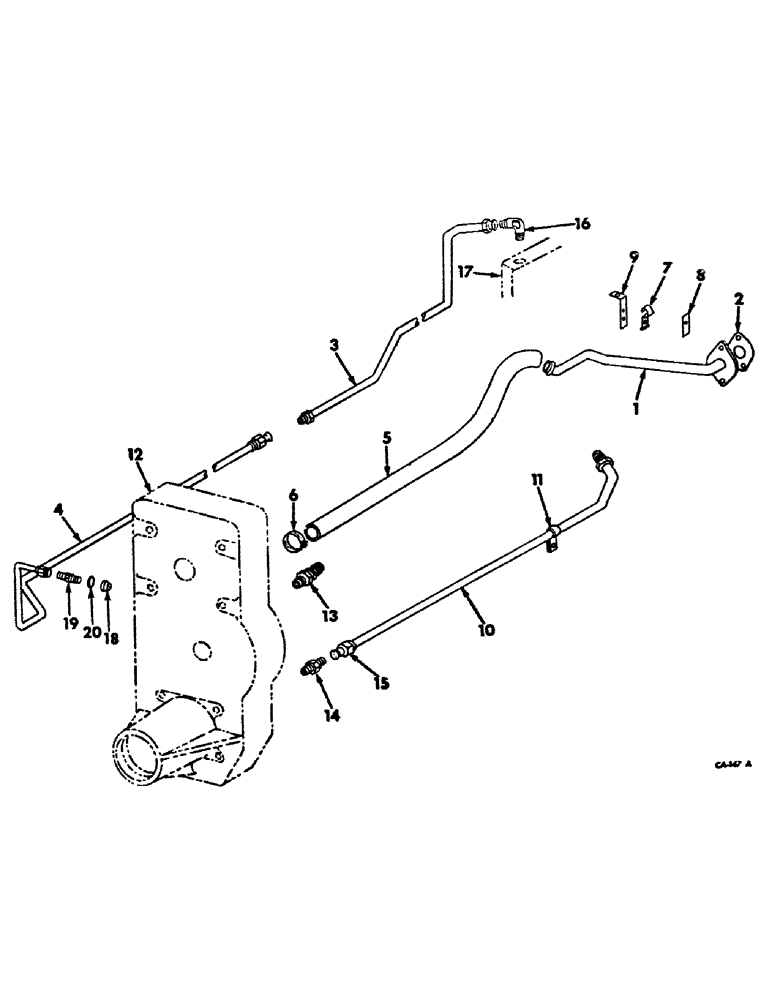

Запчасти Case IH 4100 (F-27) - HYDRAULIC SYSTEM, INDEPENDENT POWER TAKE-OFF TUBING AND CONNECTIONS (07) - HYDRAULIC SYSTEM

ON ORDERS FOR INDEPENDENT PTO ATTACHMENT, Order 406792R91

1шт.

1

403968R1

PIPE ASSY, return

1шт.

NLS

NO LONGER SERVICED

2шт.

2

390340R1

GASKET

return pipe

1шт.

3

403971R1

PIPE ASSY, power supply front

1шт.

4

403972R1

PIPE ASSY, power supply rear

1шт.

5

405155R1

HOSE, return

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

return hose

2шт.

7

403973R1

CLAMP, tube support

2шт.

8

403974R1

BAR, tube clamp

1шт.

9

403975R1

BRACKET, tube support

1шт.

180021

SPRING

SCREW, 1/4-20 x 7/8 C-Z hex-hd cap

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

SCREW, 5/8-18 x 3 C-Z hex-hd cap type 4

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

10

403976R1

PIPE ASSY, lub

1шт.

11

478941R1

CLIP, tube support

1шт.

12

HOUSING ASSY, drop, Refer to independent PTO listing, Section B, Includes: Ref. 13

1шт.

13

864445

FITTING, return hose

1шт.

14

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 5/8 OD tube 37 degree hyd flared tube

1шт.

15

381753R1

FITTING, lub pipe

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 degree hyd flared tube adj str thd 90 degree

1шт.

17

VALVE ASSY, multiple control, Refer to power supply and multiple control valve listing, This section

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

NOT USED IN THIS APPLICATION

1шт.

20

NOT USED IN THIS APPLICATION

1шт.
