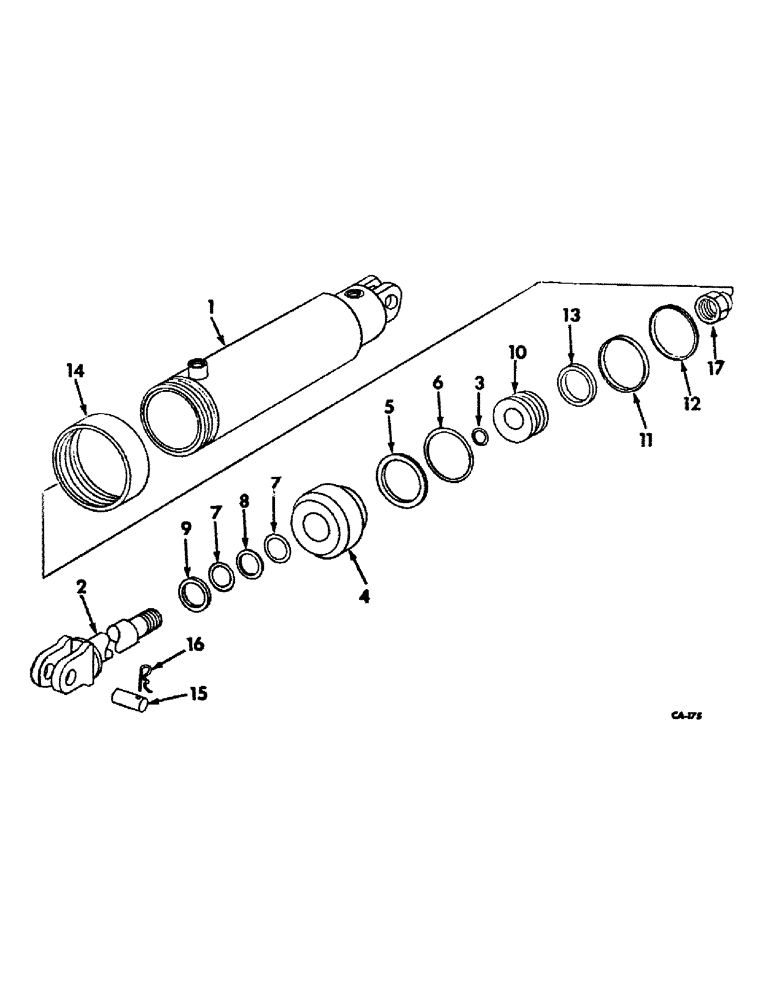

Запчасти Case IH 4100 (F-24) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, TRACTORS WITH THREE POINT HITCH (07) - HYDRAULIC SYSTEM

403188R91

CYLINDER

ASSY, hydraulic

1шт.

1

403265R1

BODY

ASSY, hydraulic cylinder

1шт.

2

403268R1

ROD ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

403270R1

FITTING

HEAD, hyd cylinder front

1шт.

5

381088R1

BACK-UP RING

front head back-up

2шт.

6

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

3-1/8 x 3-1/2 x 3/16, front head

1шт.

7

387362R1

BACK-UP RING

WASHER, piston rod back-up

1шт.

8

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16, piston rod

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

403271R1

PISTON

head cylinder

1шт.

11

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32, piston seal

1шт.

12

381086R1

RING

SEAL, piston

1шт.

13

383005R1

RING

piston bearing

2шт.

14

381089R1

RING

head retaining

1шт.

15

388695R31

PIN

ASSY, cylinder pivot

2шт.

16

520175R1

CLIP

PIN, QA

1шт.

17

20251R1

NUT

1-1/8-12 cdp hex. lock, piston rod

1шт.
