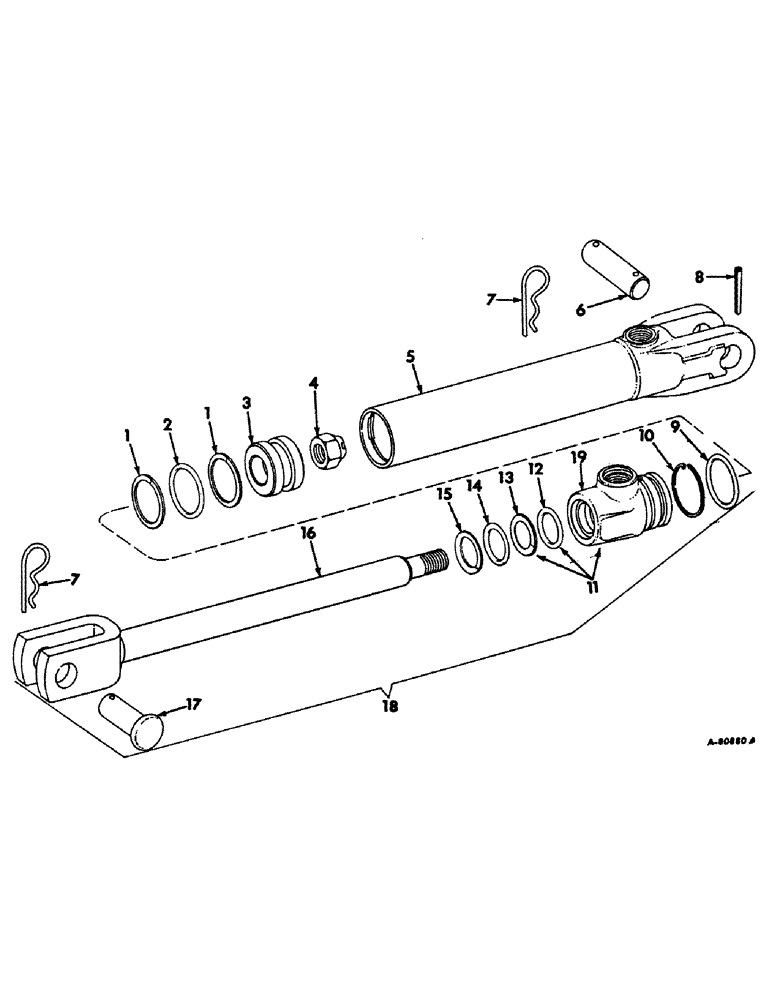

Запчасти Case IH 4100 (F-23) - HYDRAULIC SYSTEM, DOUBLE ACTING HYDRAULIC CYLINDER, FOR HYDRAULIC DRAWBAR (07) - HYDRAULIC SYSTEM

1

381872R1

WASHER

piston head backup

2шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, piston head

1шт.

3

381870R1

PISTON

HEAD, piston

1шт.

4

385054R1

NUT

3/4-16 hex. lock

1шт.

5

381861R91

BODY

TUBE ASSY, cyl

1шт.

6

381852R11

PIN

W/SPRING PIN, cyl pivot

1шт.

7

520175R1

CLIP

PIN, quick attachable cot.

2шт.

8

590260R1

PIN, 1/4 x 1-7/8 spring

1шт.

9

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8, rod end head

1шт.

10

381873R1

RETAINER

cyl end

1шт.

11

381805R11

HEAD

ASSY, rod end

1шт.

12

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, cylinder head

1шт.

13

383669R1

BACK-UP RING

cylinder head back-up

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

15

354049R1

RETAINER

cylinder head seal

1шт.

16

381842R91

ROD

ASSY, piston

1шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 2-3/4 headed

1шт.

18

381854R91

CYLINDER

ASSY, 3 x 8 in., double acting

1шт.

386687R91

KIT

PACKAGE, seal replacement, Consists of

1шт.

359048R1

SEAL

1шт.

354049R1

RETAINER

1шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING

1шт.

383669R1

BACK-UP RING

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

381872R1

WASHER

2шт.

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

1шт.

2751852R1

PRODUCT GRAPHICS, International, hydraulic cylinder label

1шт.

2751856R1

PRODUCT GRAPHICS, hyd cyl, indentification label

1шт.
