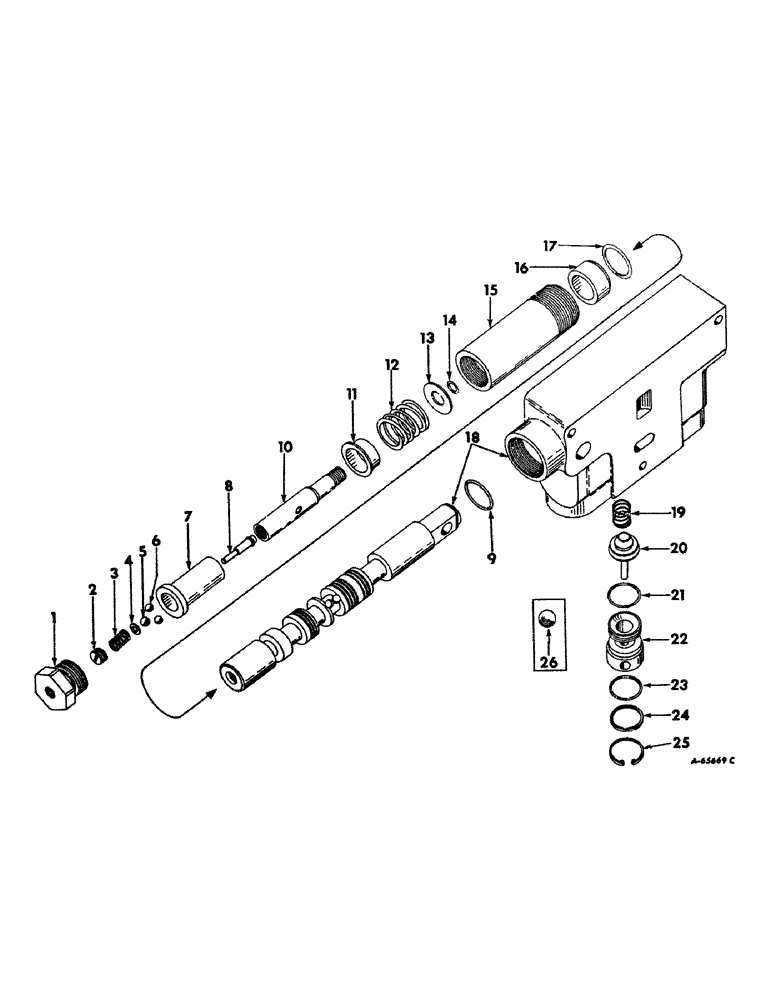

Запчасти Case IH 4100 (F-14) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, FOUR POSITION, SERIAL NO. 9190 AND BELOW (07) - HYDRAULIC SYSTEM

383267R92

VALVE

ASSY, hydraulic control, Serial Range: -9190

1шт.

390826R92

VALVE

ASSY, hydraulic control, Serial Range: -9190

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 steel button

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Unlatching piston, dent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, dent 1/4" Dia

3шт.

7

376426R1

SLEEVE

position control

1шт.

8

396582R1

PISTON ASSY.

PISTON, unlatching

1шт.

9

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, control valve spool upper, Replaces 253070R1

1шт.

10

382659R1

BODY

ACTUATOR, centering spring

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R1

WASHER

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Centering spring actuator

1шт.

15

395783R1

UNION

SLEEVE, cap retaining

1шт.

16

395781R2

RETAINER

valve spool o-ring

1шт.

17

528249R1

O-RING

7/8 x 1-1/16 x 3/32, control valve spool lower, Replaces 380839R1

1шт.

18

BODY ASSY, control valve, Use with valve 390826R92

1шт.

18

BODY ASSY, control valve, use with valve 383267R91

1шт.

19

395278R1

SPRING

check poppet

1шт.

20

395277R1

VALVE

back flow check poppet, also order spring, 395278R1

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/6 x 3/32, check poppet retainer inner

1шт.

22

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check poppet retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

25

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , check poppet 1.188", Int, #118

1шт.

26

NOT USED IN THIS APPLICATION

1шт.

383548R92

SET OF PARTS

PACKAGE, control valve, Consists of

1шт.

406181R1

O-RING,21.82mm ID x 3.53mm Width

1шт.

528249R1

O-RING

1шт.

395278R1

SPRING

1шт.

383280R1

VALVE

RETAINER

1шт.

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

395277R1

VALVE

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

396582R1

PISTON ASSY.

PISTON

1шт.

377804R1

PISTON

(NSS)

1шт.

377805R1

GASKET

O-RING (NSS)

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

362796R1

O-RING,0.924" ID x 0.103" Width

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.
