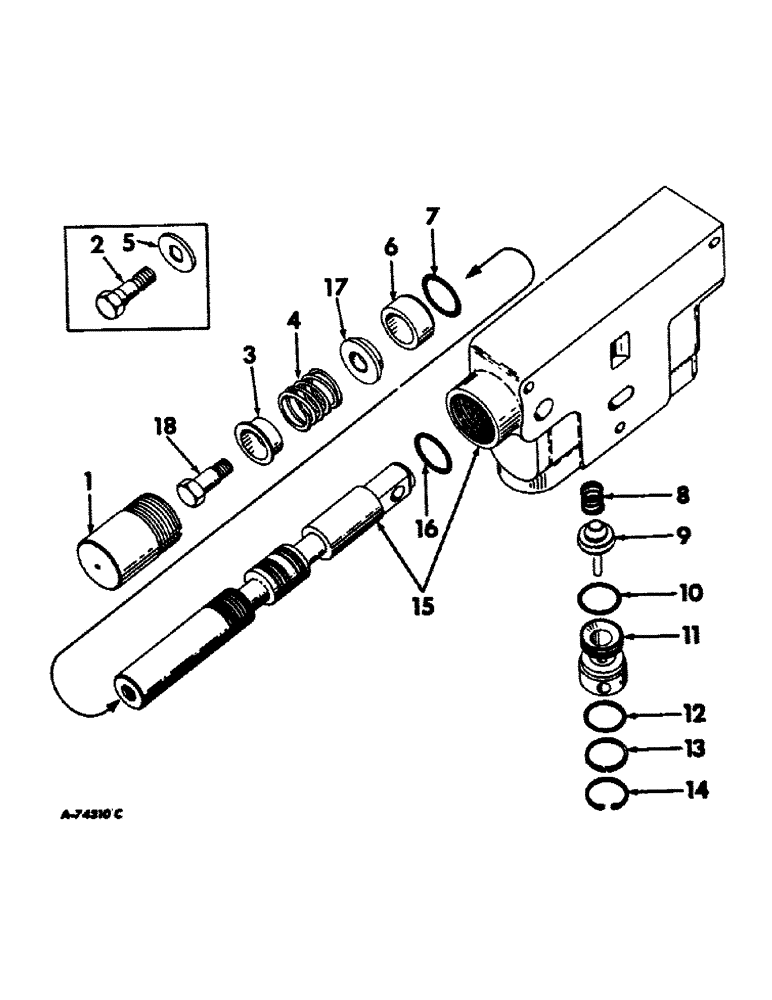

Запчасти Case IH 4100 (F-13) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, THREE POSITION (07) - HYDRAULIC SYSTEM

383271R94

VALVE ASSY, hydraulic control

1шт.

1

395782R1

CYLINDER END CAP

CAP, centering spring

1шт.

2

384288R1

SCREW, centering spring

1шт.

3

376423R1

CUP

RETAINER, centering spring

1шт.

4

384381R1

SPRING

centering

1шт.

5

374421R1

WASHER, centering spring thick

1шт.

6

395781R2

RETAINER

valve spool o-ring

1шт.

7

528249R1

O-RING

7/8 x 1-1/6 x 3/32, Replaces 380839R1

1шт.

8

395278R1

SPRING

check poppet

1шт.

9

395277R1

VALVE

back flow check poppet, also order spring, 395278R1

1шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/6 x 3/32

1шт.

11

393280R1

RETAINER, check ball

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32 check ball retainer, outer

1шт.

13

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

14

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, , check ball 1.188", Int, #118

1шт.

15

BODY ASSY, control valve, Not serviced separately order valve assy, 383271R94

1шт.

16

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8 control valve, Replaces 253070R1

1шт.

17

406825R1

CAPSCREW

RETAINER, centering spring

1шт.

18

395950R1

SCREW,Hex, 7/16" - 14 x 1.24"

centering spring

1шт.

383548R92

SET OF PARTS

PACKAGE, control valve, Consists of

1шт.

406181R1

O-RING,21.82mm ID x 3.53mm Width

1шт.

528249R1

O-RING

1шт.

395278R1

SPRING

1шт.

383280R1

VALVE

RETAINER

1шт.

228275R1

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

395277R1

VALVE

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

396582R1

PISTON ASSY.

PISTON

1шт.

377804R1

PISTON

(NSS)

1шт.

377805R1

GASKET

O-RING (NSS)

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

O-RING

1шт.

362796R1

O-RING,0.924" ID x 0.103" Width

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.
