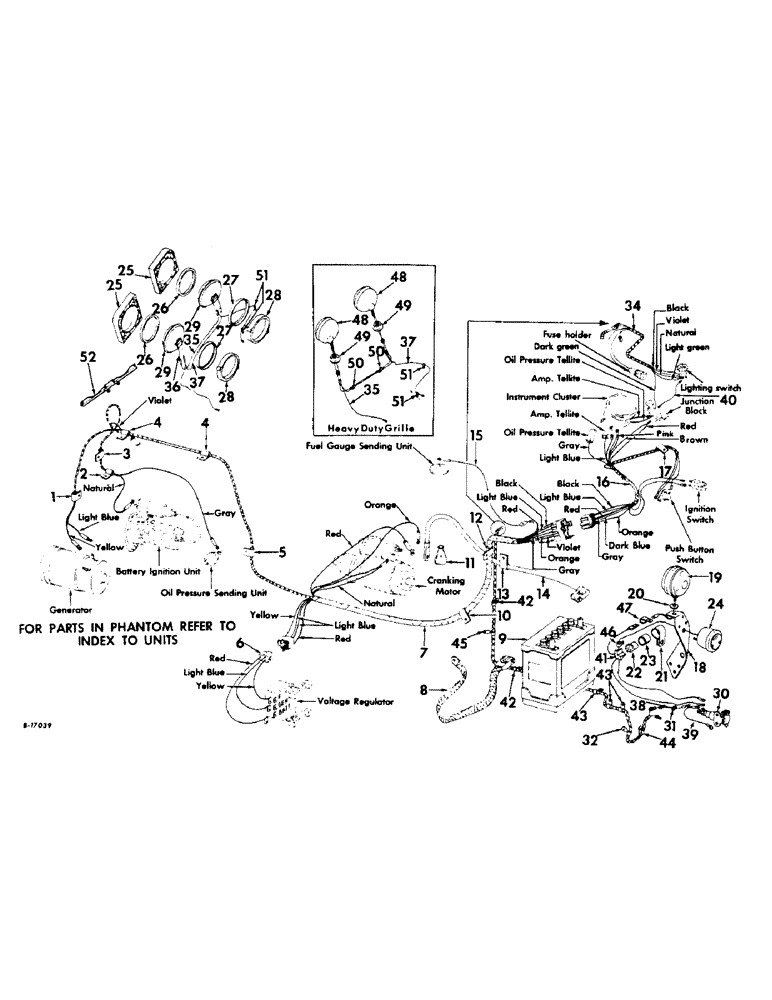

Запчасти Case IH 404 (050) - ELECTRICAL SYSTEM, IGNITION AND STARTING, INTERNATIONAL SERIES, SERIAL NO. 10404 AND ABOVE (06) - ELECTRICAL SYSTEMS

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on water outlet housing upper LH mounting bolt)

1шт.

2

362121R1

CLIP

cable harness (on governor breather pipe flange RH mounting bolt)

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on water outlet housing upper RH mounting bolt)

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on valve cover housing mounting studs)

2шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on cylinder head RH rear boss)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

376868R91

CABLE

ASSEMBLY, voltage regulator

1шт.

7

393584R91

MAKING-UP

HARNESS ASSEMBLY, cable

1шт.

8

378326R91

CABLE

STRAP w/BOLT ASSEMBLY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSEMBLY terminal

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga.

1шт.

9

395595R1

BATTERY, Prestolite 22NF-A9Z

1шт.

10

358986R1

CABLE CLIP

CLIP, cable harness (on lower rear steering support mount upper hole)

1шт.

11

364910R1

BOOT

COVER, solenoid terminal

1шт.

12

362123R1

CLIP

cable harness (on rear fuel tank and cowl support upper LH mounting bolt)

1шт.

13

362121R1

CLIP

battery cable (on lower rear steering shaft support RH tapped hole)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

376867R91

CABLE

w/COVER and BOLT ASSEMBLY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSEMBLY terminal

1шт.

15

378407R91

CABLE ASSEMBLY, fuel gauge sending unit to multiple connector (tractors equipped with Fuel Gauge)

1шт.

16

380400R91

HARNESS

ASSEMBLY, instrument panel (Replaces 376866R91)

1шт.

17

370383R1

CLIP

cable harness (on governor control friction plate upper mounting bolt)

1шт.

18

395517R1

BRACE, tail and flasher light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

102635

NUT,3/8"-16, G5

3шт.

19

394129R91

LIGHT

ASSY, flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

20

394262R1

WASHER

GASKET, flasher warning light

1шт.

21

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd. cap

1шт.

109084

NUT,1/4"-20, G5

1шт.

446179R1

WASHER, 1/4 C-Z plain

1шт.

22

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

23

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

24

379789R91

LAMP

LIGHT ASSY, tail (only serviceable items BULB, 142450, GASKET, 81714R1 and LENS 157729R1)

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

377302R1

HOUSING, headlight

2шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 C-Z cr-rec-f-hd.

4шт.

153797

SCREW, 1/4-20 x 1 C-Z cr-rec-f-hd.

6шт.

26

377303R1

RING

head light retaining front

2шт.

27

377304R1

SPECIAL RING

RING, head light retaining rear

2шт.

28

377305R1

RING

head light clamping

2шт.

29

373662R91

LAMP

HEADLIGHT ASSY, sealed beam

2шт.

30

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-f-hd. mach.

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

31

363846R1

GROMMET

breakaway connector socket junction cable

1шт.

32

376871R91

CABLE ASSY, rear light

1шт.

33

394473R91

CABLE ASSY, flashing warning light jumper

1шт.

34

377298R91

HARNESS ASSY, light cable

1шт.

35

377299R91

CABLE ASSY, harness to head light junction

1шт.

36

377300R91

CABLE ASSY, headlight junction

4шт.

37

377301R91

CABLE ASSY, headlight, Serial Range: junction-ground

1шт.

38

377116R91

CABLE ASSY, breakaway connector

1шт.

39

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

40

376869R91

CABLE

ASSY, lighting switch to junction block

1шт.

41

394340R91

CABLE ASSY, Serial Range: flasher-light

1шт.

42

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable short

2шт.

43

362123R1

CLIP

rear light cable

3шт.

44

358986R1

CABLE CLIP

CLIP, rear light cable large

1шт.

45

370820R1

CLIP

rear light cable twisted

2шт.

61252H

WASHER

15/32 x 3/4 x 11 ga.

1шт.

16558R1

WASHER

17/64 x 5/8 x 18 ga.

1шт.

46

366460R1

CABLE CLIP

CLIP, tail light cable

1шт.

61813D

CLIP

capillary tube

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

47

358986R1

CABLE CLIP

CLIP, flashing warning light cable

1шт.

48

377866R91

LIGHT

ASSY, seal beam head (only serviceable item is seal beam unit, 371443R91)

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

49

370307R1

SEAT

head light mounting bolt

2шт.

50

370383R1

CLIP

cable harness (on headlight mounting bracket bolts)

1шт.

51

366460R1

CABLE CLIP

CLIP, harness headlight junction cable

2шт.

52

377535R11

BRACE ASSY, headlight mounting unit

1шт.
