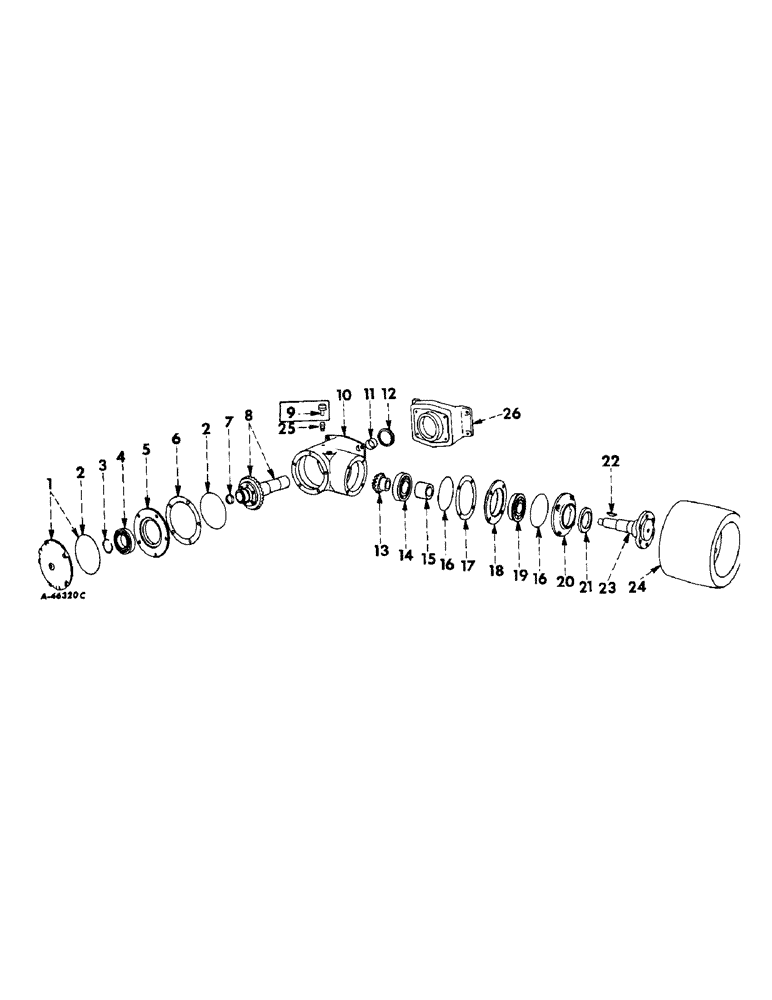

Запчасти Case IH 404 (068) - REAR FRAME AND DRIVING MECHANISMS, BELT PULLEY Rear Frame & Driving Mechanisms

NSS

NOT SOLD SEPARAT

ATTACHMENT, belt pulley (377956R91)

1шт.

1

373059R11

RETAINER ASSEMBLY, pulley drive gear bearing

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4" Hex Socket

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8 x 1-1/2" cap

5шт.

2

252741R1

O-RING

bearing retainer or cage (5-3/4 x 6 x 1/8")

2шт.

3

358236R1

RING

pulley drive gear bearing snap

1шт.

4

ST382

BEARING, BALL

BALL BEARING, pulley drive gear

1шт.

5

373055R1

CAGE, pulley drive gear bearing

1шт.

6

373058R1

SHIM, pulley drive gear bearing cage, heavy (.030")

1шт.

6

373057R1

SHIM, pulley drive gear bearing cage, medium (.012")

1шт.

6

373056R1

SHIM, pulley drive gear bearing cage, light (.007")

1шт.

7

145201R1

PLUG

cup

1шт.

8

364727R91

GEAR w/PLUG, 145201R1, ASSEMBLY, bevel pulley drive 31 teeth and RIVETS 14277

1шт.

14277

RIVET, 5/16 x 1-5/16" rd-hd.

6шт.

9

NSS

NOT SOLD SEPARAT

NOT USED

1шт.

10

384320R11

HOUSING ASSEMBLY, pulley drive (Composed of (1) bushing 364725R2, (1) housing 384320R1 (NSS), (2) plug 444576, (1) plug 9409949

1шт.

414576

PLUG, 1/4"-18 sq-hd. (drain plug)

2шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4" sq-hd. pipe (filler plug)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, 1/2 x 1-1/4 cap

4шт.

NSS

NOT SOLD SEPARAT

WASHER, 1/2" lock

4шт.

11

364725R2

BUSHING, pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

OIL SEAL, pulley drive gear hub

1шт.

13

364736R1

GEAR, pulley shaft (16 teeth)

1шт.

70102D

NUT, pulley shaft gear retainer

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

358235R1

WASHER, pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

pulley shaft inner

1шт.

15

364744R1

SPACER, pulley shaft bearing

1шт.

16

293729R1

RING

O-RING, pulley shaft bearing cage or retainer (4-3/4 x 5 x 1/8")

2шт.

17

364743R2

SHIM, pulley shaft bearing cage, heavy (.030")

1шт.

17

364742R2

SHIM, pulley shaft bearing cage, medium (.012")

1шт.

17

364741R2

SHIM, pulley shaft bearing cage, light (.007")

1шт.

18

364740R11

CAGE w/O-RING, 293729R1 ASSEMBLY, pulley shaft bearing

1шт.

19

ST294

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

pulley shaft outer

1шт.

20

364737R1

RETAINER, pulley shaft bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

365434R91

OIL SEAL

pulley shaft bearing retainer

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, no. 127 aly-stl. Woodruff

1шт.

23

384326R1

SHAFT, pulley

1шт.

24

364748R91

PULLEY, belt (11" dia x 7-1/2" face)

1шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 NF x 1-1/4" cap

6шт.

103329

WASHER,1/2"

LOCK, 1/2"

6шт.

25

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

26

377957R1

ADAPTER, belt pulley

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8" cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
